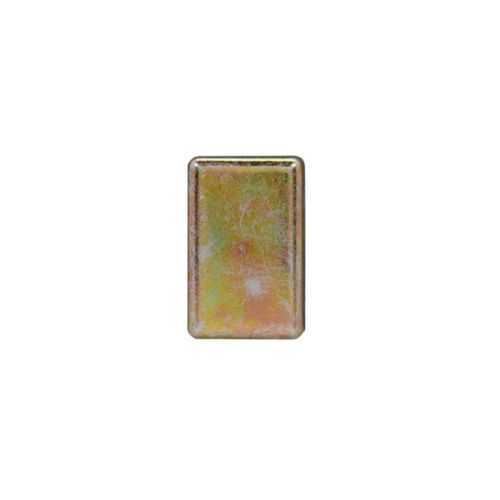

Eaton CBC-30 automotive circuit breaker - 14 Vdc
Part Number: CBC-30
Quick Summary
CBC-30 automotive circuit breaker from Eaton protects critical automotive circuits by interrupting faults at 14 Vdc and up to 30 A. Engineers often confront nuisance trips and cramped enclosures, so a compact protection device helps maximize space without sacrificing performance. While specific certifications are listed as contact factory, verify regional standards such as CE, IP, or SIL with Eaton for your exact application. From a business perspective, this CBC-30 combines reliable protection with accessible documentation and standardized installation, supporting faster procurement, easier integration, and improved field serviceability.
Product Information
Extended Description
CBC-30 Eaton: Eaton Bussmann series CBC automotive circuit breaker, 14 Vdc, 30 A, 1.5 kAIC, Type I, 10-32 TPI stud
Product Name
Eaton Bussmann series CBC automotive circuit breaker
Catalog Number
CBC-30
UPC
051712271011
Product Length/Depth
1.25 in
Product Height
1.25 in
Product Width
0.75 in
Product Weight
0.05 lb
Compliances
Contact factory
Amperage Rating
30 A
Interrupt rating
1.5 kAIC
Voltage rating
14 Vdc
Connection
#10-32 TPI stud
Bussmann series 4-foot automotive planogram no.10730
Bussmann series full line retail catalog no. 5084
Bussmann series full line retail catalog no. 5084
Bussmann series full line retail catalog no. 5084
Bussmann series Fuseology
Eaton Specification Sheet - CBC-30
Feature: 14 Vdc, 30 A rating with 1.5 kAIC interrupt capability provides robust fault protection for automotive harnesses. Benefit: Reduces downtime and equipment damage by delivering predictable trip performance in fault conditions. Application: Power, sensor, and ECU harness protection in 12–14 V automotive electrical systems. Feature: Type I designation and #10-32 TPI stud connection deliver a secure mechanical fit even in vibration-prone environments. Benefit: Simplifies installation and improves long-term reliability in chassis assemblies. Application: Direct mounting in tight automotive modules with reliable electrical contact. Feature: Compact footprint (1.25 in L, 1.25 in H, 0.75 in W) saves panel space. Benefit: Enables higher packaging density and easier enclosure design for high-density automotive electronics. Application: Power distribution blocks and integrated harness protection. Feature: Documentation and compatibility with Eaton Bussmann series CBC devices; Benefit: Streamlines spares management and lifecycle planning. Application: Program management, cataloging, and cross-referencing in maintenance schedules. Feature: Compliances listed as contact factory; Benefit: Allows tailored approval processes for regional regulatory requirements. Application: Specialized or regional automotive programs requiring certification coordination.
Get a Quick Quote for a Eaton CBC-30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CBC-30?
Enquire Now
FAQs
Yes. CBC-30 uses a #10-32 TPI stud for secure electrical connection, enabling straightforward mounting in automotive harnesses and panels. The compact dimensions (1.25 in L, 1.25 in H, 0.75 in W) help fit into tight passenger-compartment or under-hood spaces while maintaining robust contact. Ensure stud torque and connector integrity per application standards.
CBC-30 is rated for 14 Vdc, 30 A with an interrupt rating of 1.5 kAIC. It features a Type I trip characteristic and a 10-32 TPI stud connection. These specs support reliable protection for automotive circuits against overcurrent faults while accommodating typical vehicle electrical loads and fault currents.
CBC-30 provides essential overcurrent protection for automotive harnesses at 14 Vdc, a common standard in many 12–14 V systems. For EV or high-voltage hybrids, verify voltage compatibility and any regulatory requirements with Eaton; consider product variants specifically rated for higher system voltages and different fault-current profiles.
The data sheet lists compliances as 'Contact factory,' so regional or application-specific certifications should be confirmed with Eaton. For CE, IP, or SIL applicability, coordinate with the manufacturer to ensure the CBC-30 meets your automotive or industrial regulatory requirements before deployment.
By delivering predictable trip behavior and robust fault protection, CBC-30 helps reduce unexpected downtime and protect valuable ECU and sensor circuits. Its compact form factor simplifies installation, while availability of datasheets and catalogs speeds procurement and spares planning. Regular inspections of stud connections and enclosure seals will maintain reliability in harsh automotive environments.
