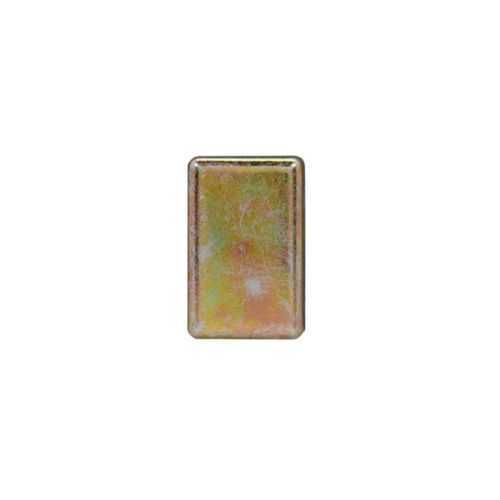

Eaton CBC-35 Automotive Circuit Breaker - 1.5 kAIC Type I
Part Number: CBC-35
Quick Summary
The CBC-35 automotive circuit breaker provides rapid overcurrent protection for 14 Vdc automotive circuits. Engineers often face space constraints and harsh vehicle environments, demanding compact, robust protection solutions. While compliances are listed as 'Contact factory', buyers should confirm official certifications such as CE marking, UL/CSA approvals, and automotive IP ratings with Eaton for their market. This CBC device sits within the Eaton Bussmann automotive family, offering consistent protection across harnesses and service intervals. Selecting CBC-35 translates to reliable protection, streamlined spare-part planning, and a scalable DC protection strategy for today’s vehicle architectures.
Product Information
Extended Description
CBC-35 Eaton: Eaton Bussmann series CBC automotive circuit breaker, 14 Vdc, 35 A, 1.5 kAIC, Type I, 10-32 TPI stud
Product Name
Eaton Bussmann series CBC automotive circuit breaker
Catalog Number
CBC-35
UPC
051712271028
Product Length/Depth
14.75 in
Product Height
7.5 in
Product Width
9.25 in
Product Weight
0.5 lb
Compliances
Contact factory
Amperage Rating
35 A
Interrupt rating
1.5 kAIC
Voltage rating
14 Vdc
Connection
#10-32 TPI stud
Bussmann series 4-foot automotive planogram no.10730
Bussmann series full line retail catalog no. 5084
Bussmann series full line retail catalog no. 5084
Bussmann series full line retail catalog no. 5084
Bussmann series Fuseology
Eaton Specification Sheet - CBC-35
The CBC-35 is rated for 14 Vdc operation, delivering controlled current interruption to protect battery lines and accessory circuits; this reduces exposure to arc faults and wiring damage in cramped engine bays. The 35 A amperage rating matches common automotive loads, enabling precise protection without nuisance tripping, which improves system reliability and reduces downtime. With an interrupt rating of 1.5 kAIC, the device tolerates high fault currents and minimizes collateral damage to harnesses and wiring assemblies, supporting longer component life and lower maintenance costs. The #10-32 TPI stud connection simplifies field installation and integration into standard automotive panels, enabling faster service and easier retrofits in fleet environments. Type I trip characteristics offer predictable response in typical automotive fault scenarios, aiding validation against OEM protection requirements. Documentation and compatibility with the CBC family help fleet managers maintain consistent protection strategies across vehicles and modules.
Get a Quick Quote for a Eaton CBC-35
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CBC-35?
Enquire Now
FAQs
Install CBC-35 by connecting the #10-32 TPI stud to the protected circuit and fastening the unit in a compatible automotive panel. Ensure secure bolting and align the stud connection to minimize contact resistance. Refer to Eaton's CBC-35 specification sheet and planogram for installation guidance and any region-specific requirements before commissioning.
The CBC-35 is rated for 35 A continuous current, with an interrupt rating of 1.5 kAIC, a voltage rating of 14 Vdc, and uses a #10-32 TPI stud for connections. These specs support protection of typical 14 V automotive circuits while providing robust fault handling in harnesses and modules.
Yes, CBC-35 is designed for automotive DC protection and integrates with standard fuse-panel architectures. Its 35 A rating and 1.5 kAIC interrupt capability meet common automotive protection needs, while the Type I characteristics offer predictable tripping behavior suitable for harness-level protection in vehicle applications.
Official documentation includes the Eaton Specification Sheet for CBC-35, the Bussmann series catalog entries, and planograms. Additional resources include the 4-foot automotive planogram and the full-line catalogs. Access these documents to verify specs, installation notes, and compatibility across the Eaton CBC family.
CBC-35 dimensions are listed as 14.75 in length, 7.5 in height, and 9.25 in width, with a product weight of 0.5 lb. These measurements influence mounting clearance and panel space planning in compact automotive installations.
