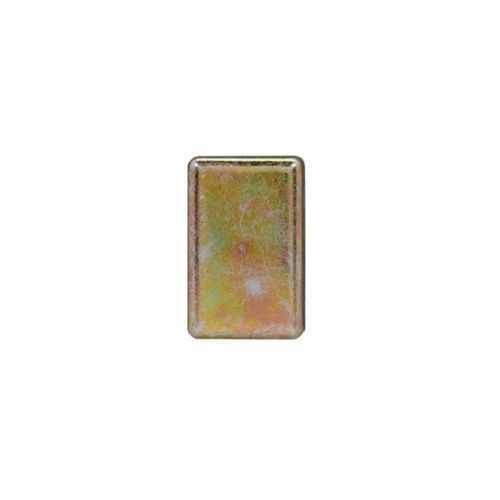

Eaton CBC-8 automotive circuit breaker - 1.5 kAIC
Part Number: CBC-8
Quick Summary
The Eaton CBC-8 automotive circuit breaker protects 14 V automotive systems by interrupting faults. Engineers struggle with space constraints and unreliable protection in tight vehicle harnesses. Certification details are not published; contact factory for CE, IP ratings or SIL considerations for your application. In practice, automotive protection devices often pursue standard compliance per market, but specifics vary by end-use. This device's compatibility with standard #10-32 studs simplifies stocking and installation, while the 8 A rating provides targeted protection for accessory circuits. By selecting CBC-8, you gain predictable protection, easy field service, and reduced risk of electrical faults in critical vehicle systems. Engineers benefit from Type I characteristics, which provide predictable tripping behavior for automotive faults. With an all-in-one package, the CBC-8 reduces the time needed to spec, source, and install protective devices, improving uptime and maintenance planning.
Product Information
Extended Description
CBC-8 Eaton: Eaton Bussmann series CBC automotive circuit breaker, 14 Vdc, 8 A, 1.5 kAIC, Type I, 10-32 TPI stud
Product Name
Eaton Bussmann series CBC automotive circuit breaker
Catalog Number
CBC-8
UPC
051712270960
Product Length/Depth
14.75 in
Product Height
7.5 in
Product Width
9.25 in
Product Weight
0.5 lb
Compliances
Contact factory
Amperage Rating
8 A
Interrupt rating
1.5 kAIC
Voltage rating
14 Vdc
Connection
#10-32 TPI stud
Bussmann series 4-foot automotive planogram no.10730
Bussmann series full line retail catalog no. 5084
Bussmann series full line retail catalog no. 5084
Bussmann series full line retail catalog no. 5084
Bussmann series Fuseology
Eaton Specification Sheet - CBC-8
Feature: The CBC-8 delivers a defined electrical rating of 14 Vdc, 8 A with an interrupt capacity of 1.5 kAIC, providing fast protection for automotive circuits. Business impact: This fast-acting protection minimizes voltage drop and downstream damage, reducing downtime and service costs. Application: Well-suited for auxiliary circuits, charging lines, and critical sensors in 14 V vehicle architectures. Feature: Terminal connection uses a standard #10-32 TPI stud, delivering a robust mechanical and electrical connection that resists vibration. Business impact: Fewer loose connections translate to stable resistance, fewer nuisance trips, and longer service intervals. Application: Ideal for integration into relay panels, fuse blocks, and harness junctions where field replacement is common. Feature: Compatible with common automotive protection workflows; the CBC-8's Type I designation and Bussmann series lineage offer predictable performance. Business impact: Aligns with established automotive protection strategies, simplifying training and procurement. Application: Suitable for integration in vehicle protection schemes where 14 V systems demand reliable circuit interruption. Feature: Physical footprint and documentation support installation in automotive service environments; dimensions are 14.75 in length, 9.25 in width, 7.5 in height, and weight 0.5 lb. Business impact: The sizeable but instrumented form factor provides robust insulation and clear terminal access, reducing installation time and miswiring risk. Application: Useful in onboard electronics enclosures, tool room displays, and service bays that rely on standardized, labeled components. Feature: Documentation and resources from Eaton — including brochures, catalogs, and the CBC-8 specification sheet — help verify compliance and compatibility. Business impact: Streamlined sourcing accelerates procurement cycles and improves change management. Application: Refer to the Eaton specification sheet and planograms for up-to-date installation guidance and cross-reference with other Bussmann series products.
Get a Quick Quote for a Eaton CBC-8
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CBC-8?
Enquire Now
FAQs
The CBC-8 uses standard #10-32 TPI stud connections. Ensure proper panel clearance and terminal access, then mount in the designated protection panel or relay block. Refer to the Eaton CBC-8 specification sheet for mounting guidance, torque ranges, and compatibility with Bussmann series components.
CBC-8 is rated for 8 A continuous current with an interrupt capability of 1.5 kAIC, at a 14 Vdc operating voltage. This combination provides rapid fault interruption while protecting wiring and connected devices in 14 V automotive circuits.
CBC-8 is designed for automotive circuitry protection with a robust connection to standard vehicle harnesses via #10-32 studs. Specific harsh-environment ratings such as IP or SIL compliance are not published; confirm through Eaton for your market and application requirements.
Compliance details are not published and must be confirmed with Eaton. Contact Eaton for CE, IP, SIL, or other regulatory considerations relevant to your region and application, and reference the CBC-8 specification sheet and planograms during review.
Eaton provides brochures, catalogs, and the CBC-8 specification sheet, including the planogram and product cross-references. Use these resources to verify compatibility with Bussmann series, plan installation steps, and streamline sourcing and maintenance planning.
