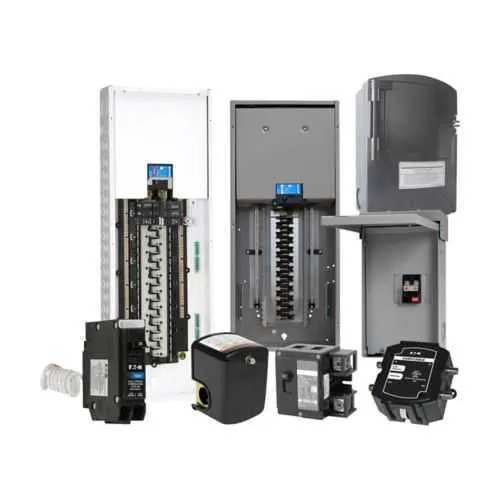

Eaton CBRPL116 Main Lug Loadcenter - UL 50/67, CSA
Part Number: CBRPL116
Quick Summary
Eaton CBRPL116 main lug loadcenter provides a compact, 16-circuit distribution solution for single-phase electrical panels. This design addresses the common pain point of crowded enclosures and long wiring runs by offering a space-efficient, code-compliant layout. It carries UL 50, UL 67 and CSA certifications, reinforcing safety and cross-border suitability for US and Canadian installations. The white NEMA 1 enclosure is well-suited for indoor environments, while the 125 A rating supports reliable service in light industrial, commercial, and service panel applications. By combining practical footprint with dependable protection, it helps drive faster commissioning and reduced field wiring costs for your projects.
Product Information
Extended Description
CBRPL116 Eaton: Eaton BR main lug loadcenter, 16 ckt, 125 amp, mainlug, single phase, white
Product Name
Eaton BR main lug loadcenter
Catalog Number
CBRPL116
UPC
621037003170
Product Length/Depth
21 in
Product Height
5.75 in
Product Width
16 in
Product Weight
19 lb
Certifications
UL 50 UL 67 CSA Certified
Special features
For Canada
Type
Loadcenter
Amperage Rating
125 A
Enclosure color
White
Main circuit breaker
Main breaker
Number of circuits
16
Phase
Single-phase
Enclosure
NEMA 1
Interrupt rating
25 kAIC
Feature: 16-circuit capacity at 125 A in a single-phase configuration. Business Impact: Enables compact panels with fewer devices and simplified wiring, reducing installation time and cabinet count. Application: Small commercial and light industrial distribution boards where space is at a premium. Feature: UL 50, UL 67 and CSA certifications. Business Impact: Enhances regulatory compliance and cross-border procurement confidence, lowering project risk. Application: US and Canadian panel installations requiring proven standards conformance. Feature: White NEMA 1 enclosure. Business Impact: Indoor, dust-protected enclosure that blends with interior spaces and minimizes environmental risk, speeding installs and maintenance. Application: Office, data center, and workshop panels needing reliable protection. Feature: Main lug design with clear wiring access. Business Impact: Simplifies field connections and reduces upfront equipment cost while supporting straightforward serviceability. Application: New or replacement panels in retrofit or new-build projects. Feature: 25 kAIC interrupt rating. Business Impact: Higher fault tolerance improves downstream protection and can reduce downstream electrical damage and downtime. Application: Systems with moderate to high fault current potential in commercial environments. Feature: 21 in length, 16 in width, 5.75 in height; 19 lb weight. Business Impact: Predictable footprint enables efficient space planning and easy replacement in existing enclosures. Application: Standard indoor installations where layout compatibility matters and quick integration is required.
Get a Quick Quote for a Eaton CBRPL116
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CBRPL116?
Enquire Now
FAQs
Ensure the enclosure is mounted in a suitable indoor location (NEMA 1) and confirm the cabinet dimensions (21 in L x 16 in W x 5.75 in H). Use appropriate conductors and terminations for 125 A service, adhering to UL 50/UL 67 and CSA requirements. Route wiring cleanly to the 16 circuit lugs, secure all connections to torque specifications, and verify insulation and labeling per local codes. The unit’s white finish and Canada-specific features help streamline documentation and inspection readiness.
The CBRPL116 supports 16 circuits at a 125 A rating, is designed for single-phase service, and uses a main lug configuration. It features a 25 kAIC interrupt rating, a white NEMA 1 enclosure, and includes a UPC 621037003170. Certifications include UL 50, UL 67 and CSA.
Yes. The unit is specified with For Canada, CSA certified, and includes Canadian installation considerations. The 16-circuit, 125 A main lug configuration in a white NEMA 1 enclosure aligns with common Canadian indoor panel requirements, helping ensure compliance and smoother approvals on site.
UL 50 and UL 67 certifications validate enclosure and circuit protection performance, while CSA certification confirms compliance with Canadian standards. Together, they reduce regulatory risk, simplify cross-border procurement, and support safer, code-compliant installations.
The 16-circuit, 125 A design in a compact 21 in by 16 in by 5.75 in footprint reduces panel counts and simplifies wiring, which shortens installation time. The ready-made certification package and cross-border compatibility help minimize inspection delays and warranty considerations, contributing to lower total cost of ownership over the panel’s lifecycle.
