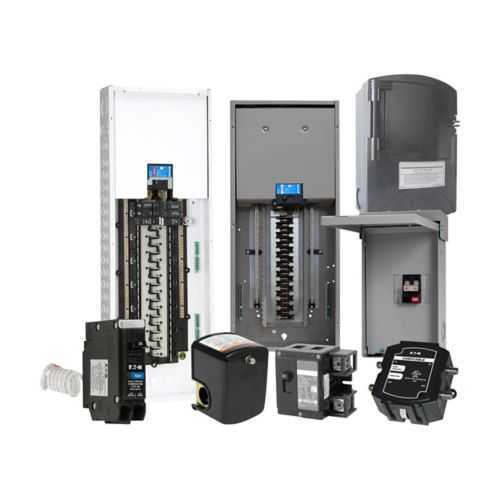

Eaton CBRPL120 Loadcenter - UL 50 UL 67 CSA Certified
Part Number: CBRPL120
Quick Summary
The Eaton CBRPL120 Loadcenter provides main-lug distribution for 125 A service in commercial facilities. Engineers often struggle with panel space, wiring complexity, and code compliance when upgrading enclosures. This unit carries UL 50, UL 67 and CSA certifications, housed in a white NEMA 1 enclosure suitable for indoor Canadian installations. Designed for straightforward compatibility with Eaton BR components, it supports a 20-circuit, single-phase configuration without a main breaker. This combination delivers a compact footprint and predictable, maintenance-friendly operation, helping procurement teams meet project timelines while minimizing field wiring revisions. In short, it offers durable compliance, ease of installation, and reliable power distribution for evolving electrical infrastructure.
Product Information
Extended Description
CBRPL120 Eaton: Eaton BR main lug loadcenter, 20 ckt, 125 amp, mainlug, single phase, white
Product Name
Eaton BR main lug loadcenter
Catalog Number
CBRPL120
UPC
621037003187
Product Length/Depth
23.25 in
Product Height
5.5 in
Product Width
16 in
Product Weight
20 lb
Certifications
UL 50 UL 67 CSA Certified
Special features
For Canada
Type
Loadcenter
Amperage Rating
125 A
Enclosure color
White
Main circuit breaker
Main breaker
Number of circuits
20
Phase
Single-phase
Enclosure
NEMA 1
Interrupt rating
25 kAIC
Feature: 20 circuits at 125 A single-phase main-lug configuration. Benefit: Supports adequate load distribution without a main breaker, simplifying wiring for upgrades and reducing potential fault paths. Application: Ideal for small-to-mid-size commercial panels where space is at a premium. Feature: White NEMA 1 enclosure with CSA, UL 50 and UL 67 certifications. Benefit: Enhances enclosure integrity and regulatory compliance, reducing inspection risk and expediting permitting. Application: Indoor installations in Canada and similar environments where standards alignment is critical. Feature: Compact footprint at 23.25 in L x 16 in W x 5.5 in H and 20 lb weight. Benefit: Eases retrofit and cabinet fit within crowded service rooms, lowering installation time and labor costs. Application: Retrofit projects and new builds with limited mounting space. Feature: Special feature for Canada. Benefit: Ensures compatibility with local electrical codes and procurement processes, streamlining regional deployments. Application: Projects requiring Canada-specific compliance and documentation. Feature: Compatibility with Eaton BR components. Benefit: Enables seamless replacements and scalable upgrades without extensive rewiring. Application: Space-constrained expansions in existing Eaton BR ecosystems.
Get a Quick Quote for a Eaton CBRPL120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CBRPL120?
Enquire Now
FAQs
When installing the CBRPL120, plan for a clean indoor location with a dry, accessible workspace. Confirm mounting clearances around the NEMA 1 enclosure and ensure proper grounding practices. Use compatible Eaton BR components to simplify field wiring and minimize parts scavenging. Verify alignment with local codes and CSA/UL requirements before energization.
This loadcenter carries UL 50, UL 67 and CSA Certified markings. UL 50 validates enclosure integrity for electrical equipment, UL 67 focuses on enclosures for electrical equipment, and CSA Certification confirms compliance with Canadian standards. Together they reduce regulatory risk, support safe operation, and facilitate cross-border project approvals.
Yes. The product includes a Canada-specific feature set and CSA certification, aligning with Canadian electrical codes. The white NEMA 1 enclosure is appropriate for indoor use, and the unit’s 125 A main-lug, 20-circuit configuration supports common Canadian commercial and light industrial distribution needs without requiring a main breaker.
Key specs include 125 A amperage rating, 20 circuits, single-phase configuration, and a main-lug setup. These specs suit distribution for moderate commercial loads and light industrial panels where a main breaker is not required. The 25 kAIC interrupt rating provides a solid protection margin for standard building loads.
Eaton provides documentation including the BR circuit breaker warranty and a specification sheet for the CBRPL120. Access to the warranty information helps establish maintenance expectations and total cost of ownership. For support, consult Eaton’s warranty guidance and downloadable datasheets to confirm coverage terms and replacement procedures.
