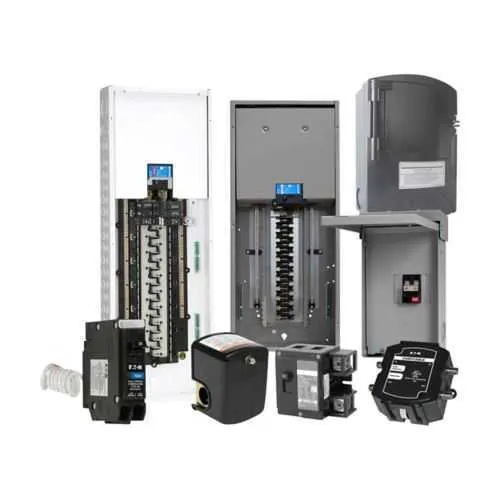

Eaton CBRPL220 Loadcenter - 125 A, 20 Circuits, UL/CSA
Part Number: CBRPL220
Quick Summary
The Eaton CBRPL220 Loadcenter is a BR main lug distribution enclosure for Canadian electrical panels and light-industrial applications. It addresses common wiring and space challenges by delivering a compact 20-circuit solution in a single enclosure designed for fast, predictable installations. Certifications matter for regulatory compliance, and this unit carries UL 50, UL 67, and CSA certification to support safe operation and clear inspection readiness. Designed for straightforward installation and maintenance, it helps engineers meet project timelines while reducing lifecycle costs and avoiding rework. Its white NEMA 1 enclosure and main lug configuration streamline compatibility with standard panel hardware and field wiring in Canadian environments.
Product Information
Extended Description
CBRPL220 Eaton: Eaton BR main lug loadcenter, Canadian PON Loadcenter, 20 ckt, 200 amp, mainlug, single phase, white
Product Name
Eaton BR main lug loadcenter
Catalog Number
CBRPL220
UPC
621037003200
Product Length/Depth
27 in
Product Height
4.5 in
Product Width
15 in
Product Weight
26 lb
Certifications
UL 50 UL 67 CSA Certified
Special features
For Canada
Type
Loadcenter
Amperage Rating
125 A
Enclosure color
White
Main circuit breaker
Main breaker
Number of circuits
20
Phase
Single-phase
Enclosure
NEMA 1
Interrupt rating
25 kAIC
Feature: 20 circuits at 125 A single-phase capacity → Business Impact: Supports a broad range of small-to-midsize loads with room for future expansion, reducing the need for mid-project upgrades. Application: Suitable for commercial suites and light-industrial services where dependable distribution is needed. Feature: Main lug loadcenter configuration → Business Impact: Simplifies wiring and reduces installation complexity by removing an internal main breaker, enabling faster field wiring. Application: Ideal for Canadian PON load centers and retrofit projects where space is constrained. Feature: Compliance certifications UL 50, UL 67, CSA → Business Impact: Enhances safety and expedites inspections, lowering project risk and warranty disputes. Application: Required in regulated facilities and environments with strict electrical codes. Feature: NEMA 1 indoor enclosure, white finish → Business Impact: Provides reliable indoor protection against dust and incidental moisture while preserving visibility and access. Application: Office, retail, and light-industrial settings with standard indoor installation. Feature: Dimensions and weight (27 in L, 15 in W, 4.5 in H, 26 lb) → Business Impact: Enables precise space planning and simple mounting in constrained panels, reducing site labor. Application: Retrofit and new-build panels where space is at a premium. Feature: Interrupt rating 25 kAIC → Business Impact: Improves fault tolerance for common utility fault levels, enhancing system resilience. Application: Medium fault-current environments and service entrances requiring robust protection. Keywords woven: Eaton BR main lug loadcenter, Canadian PON loadcenter, UL 50, UL 67, CSA Certified, NEMA 1 enclosure, 125 A, 20 circuits, single-phase distribution.
Get a Quick Quote for a Eaton CBRPL220
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CBRPL220?
Enquire Now
FAQs
The CBRPL220 is designed as a BR main lug loadcenter compatible with Canadian PON configurations, enabling straightforward integration into standard BR panel ecosystems. It uses a main lug arrangement and 20 circuits, which aligns with typical Canadian panel layouts, simplifying field wiring and reducing the need for custom adaptations.
Key specs include a 125 A amperage rating, 20 circuits, single-phase operation, and an interrupt rating of 25 kAIC. These parameters define the load capacity, fault handling, and suitability for mid-sized commercial or light-industrial applications, while supporting reliable distribution without oversizing the enclosure.
Yes, it is suitable for commercial spaces and light-industrial environments requiring a compact 20-circuit distribution panel. It supports general lighting, outlets, and small machinery feeders within its 125 A capacity, making it a versatile choice for standardized, code-compliant panel distribution.
The unit carries UL 50, UL 67, and CSA certification, indicating compliance with recognized safety and performance standards. These certifications facilitate code compliance, inspections, and warranty confidence, particularly in regulated markets and Canadian installations.
Maintenance is typically straightforward due to its standardized BR platform and accessible interior. The Eaton warranty coverage aligns with industry norms for BR loadcenters. ROI is improved by reduced installation time, fewer field changes, and predictable parts availability, all contributing to shorter project timelines and lower lifecycle costs.
