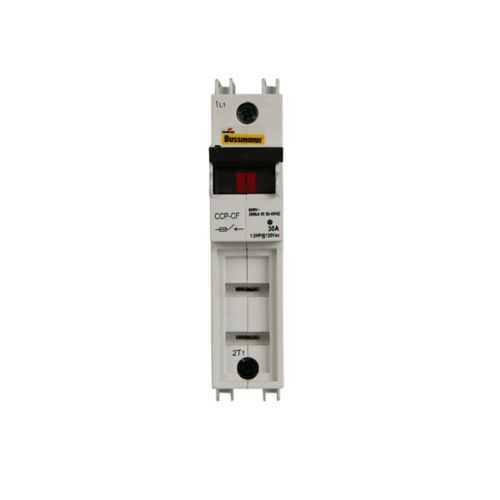

Eaton CCP-1-30CF Fusible Disconnect - UL98
Part Number: CCP-1-30CF
Quick Summary
The Eaton CCP-1-30CF fusible disconnect protects and isolates electrical circuits in industrial equipment, delivering reliable protection in demanding environments. Maintenance teams often wrestle with safe, quick disconnection during service and nuisance fuse trips that halt production. It adheres to RoHS compliance and is designed as a UL98 fusible disconnect, providing regulatory alignment while offering a clear path to certifications by the manufacturer for broader regimes. With a compact 3.65 in length, 3.14 in height, and 2.07 in width, this single-pole CUBEFuse device reduces panel space while simplifying wiring and installation. Get predictable performance in 600 Vac and 125 Vdc systems, aligned with applications in industrial control panels and electrical protection strategies to minimize downtime and improve safety.
Product Information
Extended Description
CCP-1-30CF Eaton: Eaton Bussmann series military fuse, 32V, 30A, Non Indicating, CCP-1-30CF
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP-1-30CF
UPC
051712201469
Product Length/Depth
3.65 in
Product Height
3.14 in
Product Width
2.07 in
Product Weight
0.31 lb
Warranty
Not Applicable
Compliances
Not Applicable RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
30A
Voltage rating
600 Vac, 125 Vdc
Fuse type
CUBEFuse
Number Of Poles
Single-pole
Feature: 30A amperage rating at 600 Vac (125 Vdc) ensures robust protection for high-demand circuits. Business Impact: reduces fuse-related failures and equipment damage, enabling more reliable production lines and lower maintenance costs. Application: ideal for control panels and feeders in automated facilities where fast, dependable interruption is required. Feature: Single-pole, non-indicating design minimizes enclosure intrusion and simplifies replacement logistics. Business Impact: reduces installation time and space needs while allowing remote indicators to be used where necessary. Application: suitable for compact switchgear and modular cabinets where space is at a premium. Feature: CUBEFuse fuse type provides fast, predictable interrupt performance. Business Impact: limits arc energy and short-circuit duration, improving safety and reducing downtime. Application: preferred in high-load circuits in motor drives and automation controllers. Feature: RoHS compliant construction lowers regulatory risk and waste impact. Business Impact: supports green initiatives and compliance in regulated markets, simplifying procurement and audits. Application: global manufacturing environments with RoHS requirements. Feature: Compact form factor and standard catalog number CCP-1-30CF enable straightforward installation and serviceability. Business Impact: reduces cabling complexity and stock-keeping needs, lowering total cost of ownership. Application: panel builders and maintenance crews seeking predictable replacement cycles. Feature: Clear electrical ratings and dimensions (30A, 600 Vac, 125 Vdc; 3.65 in L Ă— 3.14 in H Ă— 2.07 in W; 0.31 lb) support accurate design-in and replacement planning. Business Impact: minimizes redesign work and accelerates IPO/ commissioning. Application: suitable for new builds and retrofits in industrial automation and protection schemes.
Get a Quick Quote for a Eaton CCP-1-30CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP-1-30CF?
Enquire Now
FAQs
When planning installation, ensure the enclosure can accommodate the device dimensions: 3.65 in length, 3.14 in height, and 2.07 in width, with a weight of 0.31 lb. Use appropriate mounting hardware for a single-pole, non-indicating disconnect. Since it is non-indicating by design, plan for any external indicators to meet your control system signaling needs.
The CCP-1-30CF is rated for 30A with a voltage rating of 600 Vac and 125 Vdc. This supports high-current circuits in industrial controls while limiting fault energy. Ensure your system voltages align with these ratings and use proper fusing to protect downstream equipment. The RoHS-compliant construction further supports regulatory compliance in regulated markets.
Yes. The device is RoHS compliant, aligning with restricted substance requirements and safer disposal practices. It is designed as a UL98 fusible disconnect, providing compatibility with standard industry expectations for fusible disconnect devices. For additional certifications beyond RoHS, contact the manufacturer to discuss options and documentation specific to your region.
Maintenance involves periodic inspection of the fuse status and ensuring correct replacement after any fault event. The non-indicating design reduces dashboard complexity, but you should verify external signaling if your system relies on remote status indicators. Its compact footprint simplifies field service and replacement, helping to minimize downtime during maintenance windows.
Choosing CCP-1-30CF delivers a compact, reliable protection device that saves panel space and simplifies installation. The 30A, 600 Vac / 125 Vdc ratings reduce the need for multiple devices, while RoHS compliance lowers regulatory risk. Overall, you gain improved uptime, safer isolation during maintenance, and a streamlined procurement process for protection hardware.
