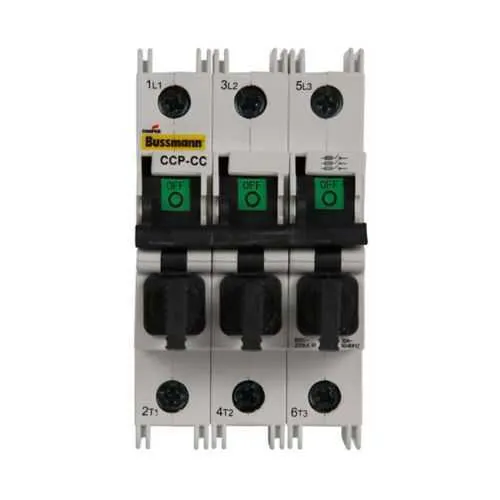

Eaton CCP-3-30CC Three-Phase Fusible Disconnect - UL98
Part Number: CCP-3-30CC
Quick Summary
Eaton CCP-3-30CC is a three-pole UL98 fusible disconnect designed for reliable electrical protection in industrial control panels and motor circuits. Engineers often struggle with compact, code-compliant protection that wires quickly, reduces downtime, and minimizes risk during fuse changes. Key certifications include UL 98 for safe switching and RoHS compliance to meet environmental regulations, with Class CC fuse compatibility and a 600 Vac / 125 Vdc rating. The compact footprint and standardized terminals simplify panel layouts, wiring, and service. In practice, this device supports efficient protection strategies, improves system availability, and helps meet maintenance budgets and compliance targets.
Product Information
Extended Description
CCP-3-30CC Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 600 Vac, 125 Vdc, 30A, UL98 fusible disconnect, Three-pole, Class CC
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP-3-30CC
UPC
051712157926
Product Length/Depth
3.65 in
Product Height
3.14 in
Product Width
2.07 in
Product Weight
0.66 lb
Warranty
Not Applicable
Compliances
Not Applicable RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
30A
Voltage rating
600 Vac, 125 Vdc
Fuse type
Class CC
Number Of Poles
Three-pole
Bussmann series complete full line catalog no. 1007
Bussmann series CCP Class CC and UL supplemental switch end-of-life notification 7-6-2018
Bussmann series CCP Class CC and UL supplemental switch end-of-life notification 7-6-2018
Eaton Specification Sheet - CCP-3-30CC
Feature: UL98 fusible disconnect with three-pole Class CC construction. Business Impact: Provides clear fuse isolation, improving safety and fault containment in demanding environments. Application: Optimized for industrial control panels and motor drives in manufacturing lines. Feature: 600 Vac / 125 Vdc voltage rating supports mixed AC/DC applications. Business Impact: Enables one protective device to handle diverse loads, reducing part count and panel space. Application: Suitable for power distribution and equipment protection in automation systems. Feature: 30A amperage rating with compact physical footprint. Business Impact: Facilitates denser panel layouts and easier retrofit without compromising safety. Application: Ideal for space-constrained control cabinets and replacement installs in conveyors, pumps, and compressors. Feature: RoHS compliant with broad compliance posture. Business Impact: Helps procurement meet environmental and regulatory requirements, reducing risk in supplier audits. Application: Supports purchasing consistency for global manufacturing sites. Feature: Dimensions and three-pole configuration provide straightforward wiring and installation. Business Impact: Simplifies panel wiring schemes, improves serviceability, and reduces commissioning time. Application: Suitable for new builds and retrofits in industrial facilities.
Get a Quick Quote for a Eaton CCP-3-30CC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP-3-30CC?
Enquire Now
FAQs
To install CCP-3-30CC, select a suitable panel cavity with three-pole clearance and room for safe terminal access. Use appropriate torque on terminals per the datasheet, and ensure correct alignment with Class CC fuse hardware. Verify 600 Vac / 125 Vdc ratings match your circuit configuration, and maintain clear labeling for safe maintenance and troubleshooting.
CCP-3-30CC offers a 600 Vac rating and a 30A amperage limit, enabling robust protection for motor loads and power distribution in industrial environments. The UL98 fusible disconnect design ensures reliable fault isolation, while the compact three-pole arrangement supports dense control panels and safer switch operation in mixed-load applications.
Yes. The CCP-3-30CC is RoHS compliant, aligning with environmental standards across global manufacturing sites, and it is UL98-rated for safety in fusible disconnect service. This combination supports compliance-driven procurement and safer integration into standard electrical protection schemes used in automation systems.
CCP-3-30CC is designed for Class CC fuse compatibility, enabling standard fuse interchangeability within protective circuits. For replacement, ensure power is disconnected, verify correct Class CC fuse size, and follow manufacturer torque specs for terminal connections. This approach minimizes downtime and reduces the risk of arc flash or mis-wiring during service.
The CCP-3-30CC reduces maintenance time through quick, safe fuse isolation and predictable fault handling. Its compact footprint supports denser panel layouts, lowering enclosure costs, while UL98 and RoHS compliance ease regulatory audits. Over the lifecycle, you gain improved mean time between maintenance and lower total cost of ownership in motor control and power-distribution applications.
