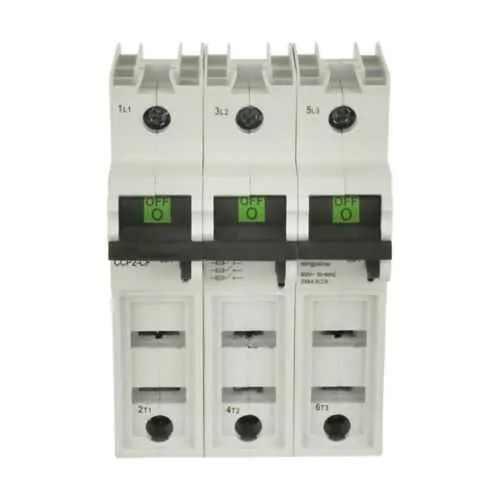

Eaton CCP2-1-100CF Fusible Disconnect - UL98
Part Number: CCP2-1-100CF
Quick Summary
Eaton CCP2-1-100CF is a UL98 fusible disconnect that provides safe circuit isolation and reliable protection in electrical panels. Engineers often struggle with balancing quick maintenance access and strong safety when servicing live systems. This device carries UL 98 certification for fusible disconnects and RoHS compliance, reinforcing reliability in regulated environments and simplifying procurement. Designed as a single-pole, 100A protector with CUBEFuse technology, it supports straightforward retrofits in existing cabinets while meeting 50/60 Hz operation and voltage flexibility, helping reduce downtime and improve panel reliability for industrial automation projects.
Product Information
Extended Description
CCP2-1-100CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 100A, UL98 fusible disconnect, Single-pole, 60 Hz, CUBEFuse, 200
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2-1-100CF
UPC
051712709309
Product Length/Depth
5.8 in
Product Height
3.6 in
Product Width
1 in
Product Weight
0.52 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
UL 98
Amperage Rating
100A
Frequency rating
50/60 Hz
Short-circuit rating
200 kA
Voltage rating
347 Vac, 125 Vdc
Fuse type
CUBEFuse
Number Of Poles
Single-pole
Special features
Finger Safe, 1/4" LOTO
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2-1-100CF
Feature → Business Impact → Application: The CCP2-1-100CF uses UL98 compliant fusible disconnect design to ensure regulatory alignment and safer maintenance procedures, reducing compliance risks and guarding personnel during servicing. This translates to lower incident costs and smoother audits in electrical protection and control cabinets. Feature → Business Impact → Application: With a 100A amperage rating and 347 Vac / 125 Vdc voltage options, the unit accommodates a broad range of control circuits and motor feeders, enabling versatile integration in machine control panels, MCCs, and distributed power setups. Feature → Business Impact → Application: The single-path, CUBEFuse configuration delivers a 200 kA short-circuit rating, improving fault isolation and minimizing collateral damage in high-energy panels, which is essential for OEMs and repair technicians working in harsh environments. Feature → Business Impact → Application: Finger Safe and 1/4" LOTO features improve safe servicing workflows, reducing PPE requirements and enabling faster battery or fuse replacement cycles in maintenance windows. Feature → Business Impact → Application: RoHS compliance and tight footprint (5.8 in L, 3.6 in H, 1 in W) support compact panel design, easier enclosures stocking, and smoother deployment in retrofit projects across industrial automation lines.
Get a Quick Quote for a Eaton CCP2-1-100CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2-1-100CF?
Enquire Now
FAQs
When retrofitting CCP2-1-100CF, verify a single-pole 100A disconnect fits the panel footprint, confirm 347 Vac / 125 Vdc compatibility, and ensure finger-safe access plus 1/4" LOTO provisions are accessible for maintenance. The compact 5.8 in length, 3.6 in height, and 1 in width support tight panel clearances while maintaining code-compliant isolation.
Key ratings include 100A amperage, 50/60 Hz operation, voltage rating of 347 Vac / 125 Vdc, and a 200 kA short-circuit rating. The fuse type is CUBEFuse, and the device is designed as a single-pole protector suitable for control circuits and feeder lines in industrial panels.
Yes. CCP2-1-100CF is RoHS compliant, aligning with sustainability and regulatory requirements in many manufacturing and automation environments. Its UL 98 certification further confirms suitability for fusible disconnect applications in electrical protection schemes.
The model is ideal for electrical protection in control panels, MCCs, and machine control circuits where reliable isolation, fast fault interruption, and easy maintenance are important. Its 100A rating and high short-circuit tolerance support robust protection in mid-power industrial applications.
Safety features include Finger Safe construction and 1/4" LOTO access, enabling safer servicing and compliant lockout procedures. The UL 98 certification and CUBEFuse fuse type deliver reliable performance, while the compact footprint facilitates quick, low-risk installations and straightforward replacement during routine maintenance.
