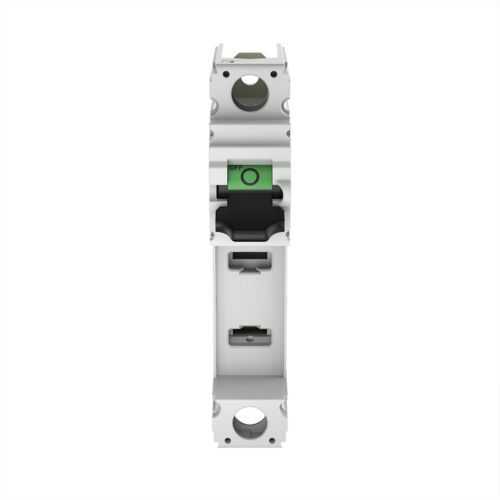

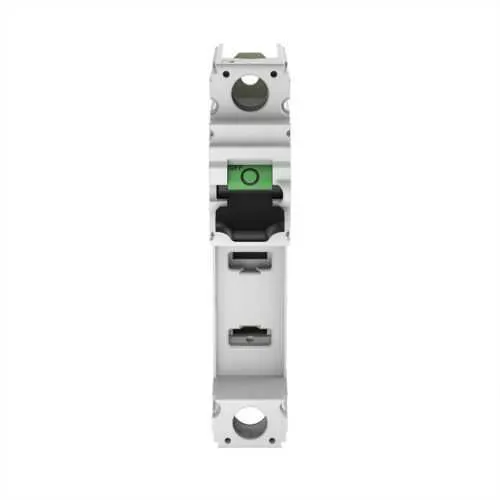

Eaton CCP2-1-200CF Fusible Disconnect - UL98 Certified
Part Number: CCP2-1-200CF
Quick Summary
The Eaton CCP UL98 fusible disconnect delivers safe, reliable circuit isolation for industrial power distribution. Maintenance teams struggle with finger-safe access and secure lockout during servicing, which can slow downtime and raise risk. UL98 certification, finger-safe construction, and a Lock-On provision help teams meet safety standards while maintaining uptime. Designed to work with Bussmann TCF fuses and rated for 600 Vac / 125 Vdc at 200 A, it delivers a robust, scalable solution. In practice, this translates to faster maintenance, safer panel operation, and lower total cost of ownership. Its compact footprint simplifies cabinet design, while the single-pole format reduces wiring complexity in control panels. Overall, CCP2-1-200CF delivers a mission-critical fuse disconnect with predictable performance in harsh industrial environments.
Product Information
Extended Description
CCP2-1-200CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 200A, UL98 fusible disconnect, Single-pole, 200KA
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2-1-200CF
UPC
051712690010
Product Length/Depth
4.7 in
Product Height
13.2 in
Product Width
4.1 in
Product Weight
1.23 lb
Warranty
Not Applicable
Compliances
Not Applicable
Amperage Rating
200A
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Number Of Poles
Single-pole
Special features
Finger Safe, Lock-On provision
Suitable for fuses
TCF110 to TCF200 TCF100RN to TCF200RN
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2-1-200CF
Feature – UL98 fusible disconnect design provides a proven safety barrier and arc-quench path, reducing risk during fault conditions. Business Impact – enhances safety compliance and minimizes unplanned downtime in critical machines. Application – suitable for industrial power distribution panels and motor control centers where quick isolation is required. Feature – Finger Safe construction and Lock-On provision improve maintenance safety and lockout discipline, enabling hands-free service and secure hold during testing. Business Impact – lowers risk of accidental contact and simplifies regulatory adherence, improving technician productivity. Application – ideal for service panels and retrofit projects in manufacturing lines. Feature – 200 A amperage rating with 200 kAIC short-circuit withstand supports high-load circuits without nuisance tripping. Business Impact – ensures reliable protection for heavy machinery while reducing nuisance fuse changes. Application – motor starters and power feeds in production lines. Feature – 600 Vac / 125 Vdc voltage rating with single-pole configuration streamlines installation and compatibility. Business Impact – simplifies wiring schemes and stock planning, reducing panel footprint and installation time. Application – control panels requiring robust isolation with straightforward fuse compatibility. Feature – Compatibility with TCF fuses (TCF110–TCF200 and TCF100RN–TCF200RN) improves spare parts availability. Business Impact – lowers total cost of ownership through standardized components and faster field replacements. Application – Eaton Bussmann series fuse ecosystems in industrial environments. Feature – Bussmann series CCP designation and UL98 compliance provide a trusted, industry-proven solution. Business Impact – accelerates spec-to-install workflows and supports ongoing reliability in critical processes. Application – panel builders and maintenance teams requiring dependable protection devices for industrial automation.
Get a Quick Quote for a Eaton CCP2-1-200CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2-1-200CF?
Enquire Now
FAQs
CCP2-1-200CF is designed for use with Bussmann TCF fuses, specifically TCF110 through TCF200 and TCF100RN through TCF200RN. This compatibility simplifies stocking and ensures reliable protection for high-current circuits in industrial control panels.
The device is rated for 200 A operational current, with a voltage rating of 600 Vac and 125 Vdc. It provides a short-circuit rating of 200 kAIC and is configured as a single-pole disconnect, suitable for high-load industrial applications.
Yes. The CCP2-1-200CF includes finger-safe construction and a Lock-On provision, enhancing maintenance safety by preventing accidental contact and ensuring a secure switch state during servicing.
With dimensions of 4.7 in depth, 13.2 in height, and 4.1 in width, plus a weight of 1.23 lb, the CCP2-1-200CF fits compact control panels and simplifies wiring. Its single-pole configuration reduces cabling complexity, and its UL98 fusible disconnect design streamlines compliance in rugged industrial environments.
The combination of UL98 certification, finger-safe operation, Lock-On safety, and fuse compatibility with common TCF fuses reduces downtime, minimizes maintenance risk, and lowers total cost of ownership by standardizing on a robust, widely-supported fuse disconnect platform from Eaton Bussmann.
