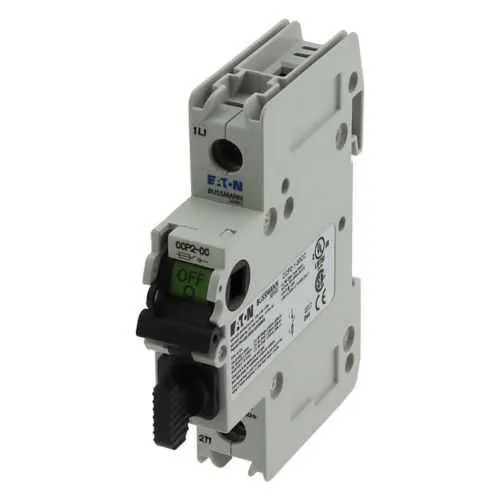

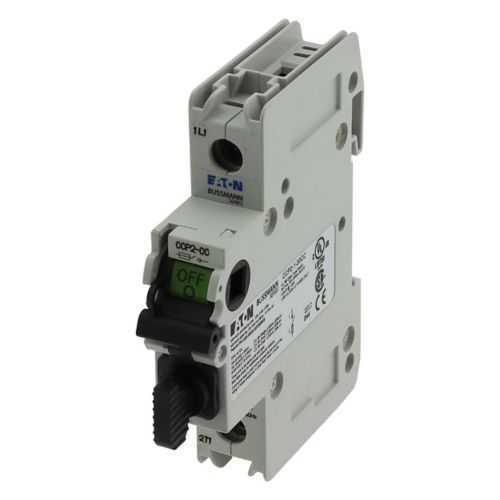

Eaton CCP2-1-30CC Fusible Disconnect - UL98
Part Number: CCP2-1-30CC
Quick Summary
The Eaton CCP2-1-30CC fusible disconnect provides fast, safe circuit isolation for machine control panels and industrial feeders. Engineers often struggle with downtime and safety during maintenance when disconnects are unreliable or non-compliant; this unit addresses those pains with a finger-safe design and straightforward 1/4" LOTO compatibility. Backed by UL 98 certification and RoHS compliance, it aligns with critical safety and environmental standards. In addition to strong protection, its compact form supports easy installation in crowded control panels, delivering reliable electrical protection while enabling efficient panel redesigns and upgrades with common Bussmann fuses and standard mounting formats.
Product Information
Extended Description
CCP2-1-30CC Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 30A, UL98 fusible disconnect, Single-pole, 60 Hz, Class CC, 200
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2-1-30CC
UPC
051712709163
Product Length/Depth
3.9 in
Product Height
3.1 in
Product Width
0.7 in
Product Weight
1.46 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
UL 98
Amperage Rating
30A
Frequency rating
50/60 Hz
Short-circuit rating
200 kA
Voltage rating
347 Vac, 125 Vdc
Fuse type
Class CC
Number Of Poles
Single-pole
Special features
Finger Safe, 1/4" LOTO
Suitable for fuses
LP-CC-1/2 to LP-CC-30 FNQ-R-15 to FNQ-R-20
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2-1-30CC
Feature: 30A Class CC fuse disconnect. Business impact: robust overcurrent protection for motor control and feeder circuits reduces fault energy and downstream equipment damage. Application: suitable for machine control panels and small-power feeders in industrial environments. Feature: Single-pole, compact footprint. Business impact: saves panel space and simplifies wiring while maintaining reliability. Application: ideal where space is at a premium in control enclosures. Feature: 50/60 Hz, voltage up to 347 Vac / 125 Vdc. Business impact: broad compatibility with common AC and DC circuits, enabling flexible system architectures. Application: used across mixed-voltage control panels and equipment service disconnects. Feature: Class CC fuse type and UL 98 certification. Business impact: ensures regulatory compliance and proven fuse compatibility, reducing validation time. Application: integrates with LP-CC fuses for certified protection. Feature: Finger Safe with 1/4" LOTO and RoHS compliance. Business impact: enhances maintenance safety and environmental compliance, lowering risk and lifecycle costs. Application: supports maintenance procedures and regulatory requirements in harsh industrial settings.
Get a Quick Quote for a Eaton CCP2-1-30CC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2-1-30CC?
Enquire Now
FAQs
The CCP2-1-30CC is a single-pole, compact fusible disconnect designed for panel mounting in industrial control installations. It measures 3.9 in (length) by 3.1 in (height) by 0.7 in (width) and weighs 1.46 lb. Ensure proper clearance, use compatible LP-CC fuses, and follow 1/4 in LOTO procedures with finger-safe access during maintenance.
This device provides a 30A amperage rating, operates at 50/60 Hz, and features a voltage rating of 347 Vac / 125 Vdc with a 200 kA short-circuit rating. These specs indicate suitability for typical industrial AC controls and DC signaling paths, with strong fault-current protection for reliable panel performance.
Yes. The CCP2-1-30CC is UL 98 certified, RoHS compliant, and designed specifically as a safe, code-compliant fusible disconnect for electrical protection within UL 98 compliant assemblies. It supports reliable maintenance workflows with finger-safe access and LOTO compatibility.
This unit is suitable for LP-CC-1/2 to LP-CC-30 fuses and FNQ-R-15 to FNQ-R-20 variants, providing a broad compatibility range for motor control and circuit protection in standard industrial applications.
The finger-safe design and 1/4" LOTO compatibility streamline maintenance while reducing risk. RoHS compliance minimizes hazardous substances, and UL 98 certification simplifies regulatory validation. Its compatibility with common Bussmann fuses supports quick replacements, reducing downtime and total cost of ownership in daily operations.
