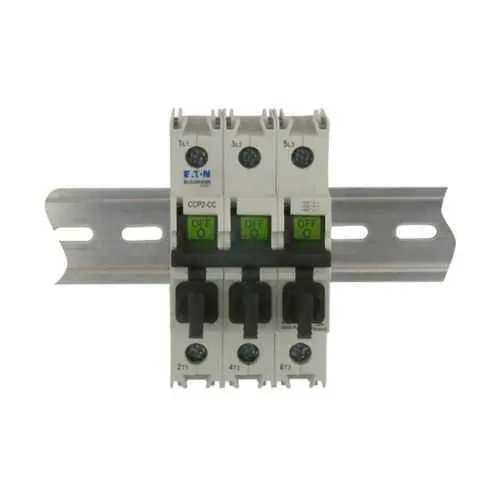

Eaton CCP2-1-30M Fusible Disconnect - UL Recognized
Part Number: CCP2-1-30M
Quick Summary
Eaton CCP2-1-30M fusible disconnect provides safe overcurrent protection for electrical panels and motor control circuits. In tight enclosures, engineers face the challenge of isolating power quickly while meeting strict UL98 requirements and maintaining compact footprints. This unit earns UL Recognized and UL98 listings, with RoHS compliance supporting modern, eco-conscious panel builds. For teams balancing safety, cost, and installation speed, the CCP2-1-30M offers a reliable, easy-to-wire solution that fits slim enclosures without sacrificing fault protection. Its compact dimensions and patient design translate into reduced panel depth, simpler wiring, and straightforward field replacement, helping minimize downtime and total cost of ownership across automation projects.
Product Information
Extended Description
CCP2-1-30M Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 30A, UL98 fusible disconnect, Single-pole, 60 Hz, Supplemental, 120
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2-1-30M
UPC
051712709194
Product Length/Depth
4.5 in
Product Height
3.1 in
Product Width
0.7 in
Product Weight
1.46 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
UL Recognized
Amperage Rating
30A
Frequency rating
50/60 Hz
Short-circuit rating
120 kA
Voltage rating
400 Vac, 80 Vdc
Fuse type
Supplemental
Number Of Poles
Single-pole
Special features
Finger Safe, 1/4" LOTO
CCP2-1-30M~1 Pole Comp Ckt Protect 30A
CCP2-1-30M~1 Pole Comp Ckt Protect 30A
Eaton Specification Sheet - CCP2-1-30M
Feature: 30A, single-pole UL98 fusible disconnect; Business impact: delivers fast, reliable isolation while withstanding high fault currents; Application: ideal for compact control panels and motor control circuits in machine automation. Feature: 4.5 in length, 0.7 in width, 3.1 in height with a 1.46 lb weight; Business impact: minimizes panel footprint and simplifies wiring in space-constrained installations; Application: panel builders deploying slim enclosures and compact protection solutions. Feature: Finger Safe and 1/4" LOTO; Business impact: enhances maintenance safety and regulatory compliance; Application: service-friendly protection in industrial environments. Feature: RoHS Compliant and UL Recognized with UL98 listing; Business impact: supports green design and unified safety certification; Application: compliant for modern automated facilities. Feature: Electrical ratings including 400 Vac, 80 Vdc, 50/60 Hz; Short-circuit rating of 120 kA; Fuse type Supplemental; Number of Poles: Single-pole; Business impact: predictable performance with standard industrial mains; Application: feeders and control circuits in automation systems.
Get a Quick Quote for a Eaton CCP2-1-30M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2-1-30M?
Enquire Now
FAQs
To install CCP2-1-30M, begin by powering down the panel and verifying absence of voltage. Mount the unit in a suitable panel space, connect the line side to the 400 Vac circuit and the load side to the protected branch, and ensure the device is oriented for accessible operation. Use the 1/4 inch lockout capability during service and follow UL98 wiring guidance for correct fuse placement and clear labeling.
CCP2-1-30M provides a 30A amperage rating, 50/60 Hz operation, voltage ratings of 400 Vac and 80 Vdc, and a 120 kA short-circuit rating. It is a supplemental fuse type with a single-pole design. These specs ensure reliable protection for feeders in panelboards and machine controls while remaining compatible with typical industrial mains and safety standards.
Yes. The CCP2-1-30M is well-suited for motor-control panels requiring UL98 protection and a compact footprint. Its single-pole design simplifies wiring in tight enclosures, and its dimensions support slim panel layouts. When used in motor control, coordinate with upstream protection devices and ensure enclosure clearance meets finger-safe and lockout-tagout (LOTO) requirements.
CCP2-1-30M carries UL Recognized and UL98 listings, along with RoHS compliance. These certifications simplify procurement, support regulatory compliance in regulated industries, and align with green manufacturing goals. This makes it suitable for applications across automotive, packaging, automation, and process industries where safety, traceability, and environmental standards are critical.
Maintenance for CCP2-1-30M is straightforward: replace the fuse after a fault and inspect terminations and enclosure integrity during periodic servicing. There are no wear-prone moving parts, but verify proper wiring, ensure the 1/4" LOTO feature remains accessible, and keep spare fuses available for quick replacement to minimize downtime in automated lines.
