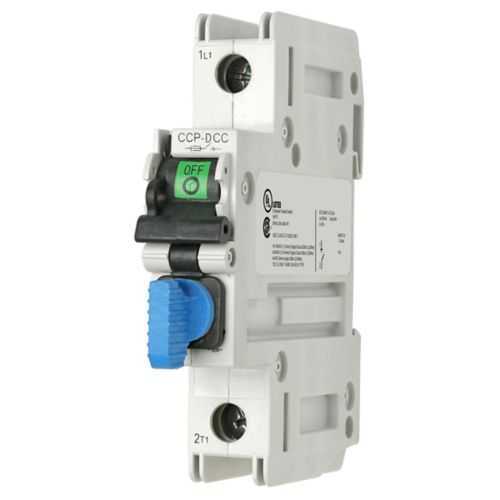

Eaton CCP2-1-DCC Fusible Disconnect - UL98 DC 30A
Part Number: CCP2-1-DCC
Quick Summary
The Eaton CCP2-1-DCC fusible disconnect provides reliable DC protection for control panels and battery systems. Engineers often struggle with slow maintenance cycles and incomplete compliance when selecting DC disconnects. UL 98 listings, RoHS compliance, and finger-safe design with 1/4\" LOTO ensure safer operations. This module combines a compact form factor with robust protection, reducing downtime and installation time. Rated for 80 VDC, 30 A, it covers typical DC control circuits and battery protection in industrial cabinets. A 20 kA DC short-circuit rating provides solid fault isolation, minimizing arc exposure and supporting safer maintenance. With UL 98 recognition, RoHS compliance, and finger-safe features, it meets industry expectations for critical mission equipment. Designed for fast, reliable installation and straightforward fuse compatibility, it reduces commissioning time and enhances system reliability.
Product Information
Extended Description
CCP2-1-DCC Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 30A, UL98 fusible disconnect, Single-pole, DC, Class CC, 20
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2-1-DCC
UPC
051712709224
Product Length/Depth
4.5 in
Product Height
3.1 in
Product Width
0.7 in
Product Weight
1.46 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
UL 98
Amperage Rating
30A
Frequency rating
DC
Short-circuit rating
20 kA DC
Voltage rating
80 Vdc
Fuse type
Class CC
Number Of Poles
Single-pole
Special features
Finger Safe, 1/4" LOTO
Suitable for fuses
LP-CC-1/2 to LP-CC-30 FNQ-R-15 to FNQ-R-20
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2-1-DCC
Feature: Compact form factor and lightweight build enable easy mounting in crowded panels, reducing enclosure footprint and installation time. Business Impact: Saves space, lowers labor costs, and accelerates commissioning in control cabinets. Application: Suitable for DC protection in panel assemblies utilizing Class CC fuses. Feature: 30 A, 80 Vdc rating with 20 kA DC short-circuit rating improves fault handling and minimizes downtime. Business Impact: Safer energization sequences and reduced arc risk during fuse changes. Application: Ideal for DC control circuits and battery disconnects in manufacturing lines. Feature: Finger-safe, 1/4\" LOTO design plus RoHS compliance. Business Impact: Enhances operator safety and regulatory compliance, lowering maintenance risk. Application: Used in services requiring safe lockout and compliance. Feature: Compatible fuse options LP-CC-1/2 to LP-CC-30 and FNQ-R-15 to FNQ-R-20. Business Impact: Simplifies spares management and reduces inventory variety. Application: Supports standardized protection across Eaton Bussmann offerings.
Get a Quick Quote for a Eaton CCP2-1-DCC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2-1-DCC?
Enquire Now
FAQs
CCP2-1-DCC is compatible with LP-CC-1/2 through LP-CC-30 fuses and FNQ-R-15 through FNQ-R-20 series, offering broad protection options for DC circuits.
It provides 30 A at 80 V DC with a 20 kA DC short-circuit rating, suitable for high-current DC protection in control panels.
Yes. The device is RoHS compliant and features finger-safe construction with 1/4\" LOTO, improving operator safety.
The unit is a single-pole Class CC disconnect measuring 4.5 in length, 3.1 in height, and 0.7 in width, with a weight of 1.46 lb; designed for UL 98 environments.
UL 98 listing, RoHS compliance, and standardized fuse compatibility reduce downtime, simplify spare parts, and improve regulatory compliance for DC protection.
