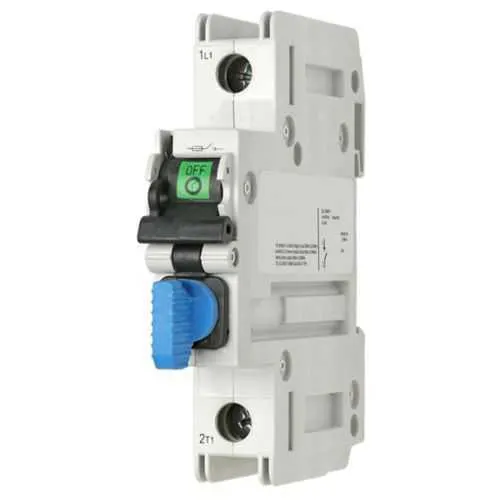

Eaton CCP2-1-DCM Fusible Disconnect - UL Recognized
Part Number: CCP2-1-DCM
Quick Summary
The Eaton CCP2-1-DCM fusible disconnect is a high-current safety switch designed for DC circuits in industrial control systems. It helps prevent unexpected outages and equipment damage by providing reliable isolation with a single-pole configuration. Engineers often struggle with finding a compact, compliant DC protection device that fits tight panel spaces while meeting UL98 requirements and RoHS standards. This unit’s UL Recognized status and RoHS compliance support streamlined procurement and regulatory alignment, while its compact footprint and 30 A, 80 Vdc rating suit modern automation layouts. In practice, it reduces enclosure real estate needs and simplifies wiring in control panels, motor drives, and power-distribution subsystems, delivering safer, more maintainable protection for critical DC circuits.
Product Information
Extended Description
CCP2-1-DCM Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 30A, UL98 fusible disconnect, Single-pole, DC, Supplemental, 10
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2-1-DCM
UPC
051712709231
Product Length/Depth
4.5 in
Product Height
3.1 in
Product Width
0.7 in
Product Weight
1.46 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
UL Recognized
Amperage Rating
30A
Frequency rating
DC
Short-circuit rating
10 kA DC
Voltage rating
80 Vdc
Fuse type
Supplemental
Number Of Poles
Single-pole
Special features
Finger Safe, 1/4" LOTO
CCP2-1-DCM~1 Pole Comp Ckt Protect 30A
CCP2-1-DCM~1 Pole Comp Ckt Protect 30A
Eaton Specification Sheet - CCP2-1-DCM
Feature → Business Impact → Application: The CCP2-1-DCM uses a compact 4.5 in depth, 3.1 in height, and 0.7 in width footprint with a weight of 1.46 lb. This small form factor minimizes enclosure size and allows easier retrofits in existing panels, reducing installation time and material costs for small-footprint DC protection. Application: control panels with tight space constraints in factory automation and material handling systems. Feature → Business Impact → Application: Rated 30 A at 80 Vdc with a 10 kA DC short-circuit rating, this device delivers robust fault isolation to protect DC loads and power electronics, helping prevent arc faults and downstream damage. Application: DC motor drives, battery backup systems, and DC power distribution units. Feature → Business Impact → Application: UL Recognized and RoHS compliant, the CCP2-1-DCM simplifies supplier qualification and reduces compliance overhead, speeding approval cycles and audits. Application: procurement for regulated environments like food and beverage or medical device assembly lines. Feature → Business Impact → Application: Finger Safe and 1/4" LOTO provide enhanced maintenance safety, enabling safe lockout during service without full panel disassembly. Application: routine maintenance in automation cabinets and switchgear. Feature → Business Impact → Application: Single-pole, supplemental fuse design simplifies integration into existing CCP protection schemes, enabling quick deployment in legacy systems and straightforward upgrades. Application: upgrading older DC protection setups to meet current safety standards.
Get a Quick Quote for a Eaton CCP2-1-DCM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2-1-DCM?
Enquire Now
FAQs
Install CCP2-1-DCM as a single-pole disconnect in DC power paths up to 80 Vdc and 30 A. It is designed for compact enclosures with a 4.5 in depth, 3.1 in height, and 0.7 in width footprint. Ensure finger-safe handling and use the 1/4 inch LOTO feature during maintenance for safety.
Yes. The CCP2-1-DCM is a UL Recognized, single-pole DC fusible disconnect in the Bussmann CCP family, crafted for integration into common control-panel footprints. Its compact dimensions and supplemental fuse design simplify retrofits and new installations in industrial automation environments.
The CCP2-1-DCM carries UL Recognized certification and RoHS compliance. UL recognition ensures safe, approved electrical isolation in control systems, while RoHS helps meet environmental and regulatory requirements, supporting easier supplier qualification and audit readiness in regulated industries.
Key ratings include 30 A, 80 Vdc, and a 10 kA DC short-circuit rating. Safety features include Finger Safe construction and a 1/4 inch LOTO for safe maintenance, plus a supplemental fuse configuration that aligns with single-pole protection schemes in DC circuits.
The device reduces panel space and installation time due to its compact footprint, while improving regulatory compliance with UL Recognized and RoHS. Its robust DC protection minimizes downtime from faults in power electronics, delivering lower maintenance costs and faster project commissioning in automation environments.
