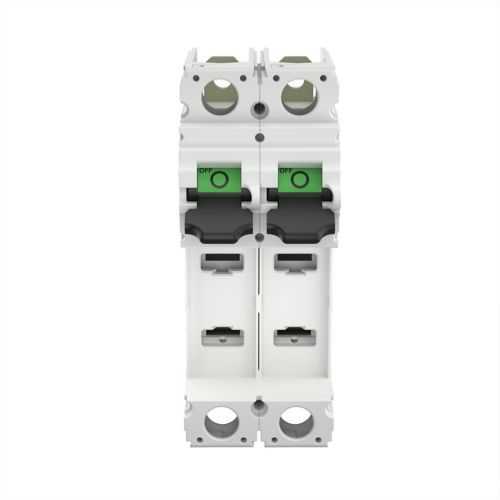

Eaton CCP2-2-200CF Fusible Disconnect - UL98, 200KAIC
Part Number: CCP2-2-200CF
Quick Summary
Eaton CCP2-2-200CF fusible disconnect is a safety device used to rapidly isolate power in electrical systems. Site engineers often struggle with hard-to-service disconnects that delay maintenance and risk non-compliance during shut-downs. UL 98 listing ensures proper fuse compatibility and fault isolation, while finger-safe design and a lock-on provision reduce operator risk and unintended operation. This unit's 200 A rating, 600 VAC / 125 VDC capability, and two-pole construction support reliable protection in control panels and motor circuits. Together with the Bussmann series, it helps minimize downtime and improve compliance, delivering measurable business value for industrial facilities and OEM projects.
Product Information
Extended Description
CCP2-2-200CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 200A, UL98 fusible disconnect, Two-pole, 200KA
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2-2-200CF
UPC
051712690072
Product Length/Depth
4.7 in
Product Height
13.2 in
Product Width
4.1 in
Product Weight
2.46 lb
Warranty
Not Applicable
Compliances
Not Applicable
Amperage Rating
200A
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Number Of Poles
Two-pole
Special features
Finger Safe, Lock-On provision
Suitable for fuses
TCF110 to TCF200 TCF100RN to TCF200RN
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2-2-200CF
Feature: UL 98 fusible disconnect designation. Benefit: ensures code-compliant isolation with compatible Bussmann series fuses, minimizing audit findings and reducing risk during maintenance. Application: ideal for control panels and MCCs in manufacturing environments. Feature: 200 A amperage rating. Benefit: handles high-current loads with a compact footprint, enabling safer, faster breaker or fuse changes. Application: motor drives and power distribution centers. Feature: 600 VAC / 125 VDC voltage rating. Benefit: supports versatile switching across AC and DC circuits, reducing part counts and inventory. Application: industrial automation panels and process equipment. Feature: Finger Safe design and Lock-On provision. Benefit: enhances operator safety and secures the disconnect during service windows, cutting accidental resets. Application: panel assemblies with frequent access. Feature: Two-pole construction and 200 kAIC short-circuit rating. Benefit: provides robust protection against arc faults while simplifying installation and selction. Application: high-energy systems and critical machinery. Feature: Compatibility with TCF series fuses (TCF110–TCF200, TCF100RN–TCF200RN). Benefit: broadens replacement options and reduces downtime when sourcing spares. Application: field upgrades and maintenance. Feature: Clear mechanical footprint (dimensions and weight). Benefit: predictable fit in existing enclosures with straightforward mounting. Application: retrofit projects and new builds, minimizing rework.
Get a Quick Quote for a Eaton CCP2-2-200CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2-2-200CF?
Enquire Now
FAQs
Yes. The CCP2-2-200CF is specified as suitable for TCF110 to TCF200 range as well as TCF100RN to TCF200RN, enabling flexible fuse sourcing and straightforward replacement in existing Bussmann series installations.
The unit is rated for 200A continuous current, 600 VAC and 125 VDC, with a short-circuit rating of 200 kAIC, suitable for high-energy industrial applications while maintaining safe isolation.
Ideal for control panels, motor control centers (MCCs), and other power-distribution points in manufacturing or process environments where rapid, reliable power isolation is needed for maintenance and safety.
The product carries UL 98 listing for fusible disconnects and includes finger-safe construction along with a lock-on provision, enhancing operator safety and preventing accidental operation during servicing.
Its two-pole design, robust short-circuit rating, and compatibility with common fuse families reduce downtime, simplify spares management, and improve compliance documentation, delivering faster maintenance cycles and lower total cost of ownership.
