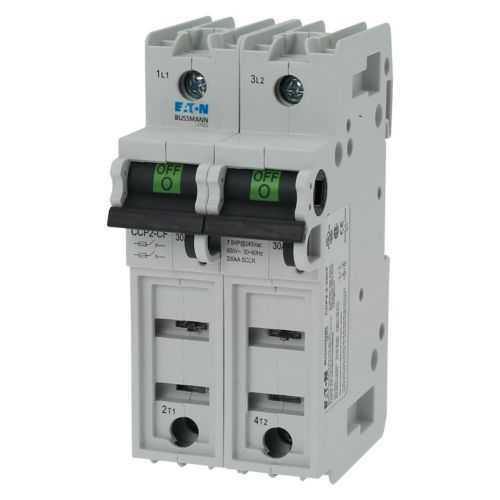

Eaton CCP2-2-30CF UL98 Fusible Disconnect - Finger Safe
Part Number: CCP2-2-30CF
Quick Summary
CCP UL98 fusible disconnect isolates circuits safely in industrial control panels. Maintenance teams often struggle with accidental energization and complex lockout procedures during servicing. It carries UL 98 certification, and its Finger Safe design plus 1/4 inch lockout/tagout provisions support safer servicing and regulatory compliance. Designed for fast, reliable installation and broad fuse compatibility (TCF and FCF series), it delivers tangible cost savings, improved uptime, and safer maintenance workflows for industrial automation environments.
Product Information
Extended Description
CCP2-2-30CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 225A, UL98 fusible disconnect, Three-pole, 200 kA - CCP2-2-30CF
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2-2-30CF
UPC
051712709255
Product Length/Depth
4.5 in
Product Height
3 in
Product Width
2 in
Product Weight
3.7 lb
Warranty
Not Applicable
Certifications
UL 98
Amperage Rating
30A
Frequency rating
50/60 Hz
Short-circuit rating
200 kA
Voltage rating
600 Vac, 125 Vdc
Fuse type
CUBEFuse
Number Of Poles
Two-pole
Special features
Finger Safe, 1/4" LOTO
Suitable for fuses
TCF6 to TCF30 TCF1RN to TCF30RN FCF1RN to FCF30RN
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2-2-30CF
Two-pole CCP design provides straightforward wiring and compact footprint, enabling easier panel layouts and faster commissioning. This translates to reduced installation time and lower labor costs while maintaining robust fault protection thanks to a 200 kA short-circuit rating, suitable for high-current feeder applications. The device is rated for 600 Vac and 125 Vdc, supporting both AC and DC control circuits in mixed-environment systems, which simplifies inventory and design choices for mixed-technology panels. Finger Safe construction and a lock-on provision improve on-site safety, enabling secure operation during maintenance and reducing the risk of accidental energization. Compatibility with a wide fuse family, including TC F6 to TC F30 and RN variants, provides flexibility for upgrades and obsolescence management without changing disconnect hardware. With a 4.5 in depth, 3 in height, and 2 in width footprint weighing 3.7 lb, it fits common electrical protection layouts while maintaining serviceability and ease of replacement.
Get a Quick Quote for a Eaton CCP2-2-30CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2-2-30CF?
Enquire Now
FAQs
The CCP2-2-30CF is a two-pole UL 98 fusible disconnect rated for 30A, 600 Vac / 125 Vdc, and up to 200 kA fault current. It is ideal for isolating motor feeders and control circuits in industrial control panels, machine enclosures, and power distribution for equipment tasked with frequent maintenance or service work.
It is suitable for fuses in the TC F6 to TCF30 range and RN variants, as well as FCF RN series. This broad compatibility supports long-term inventory planning and upgrade paths without changing the disconnect hardware.
Key safety features are Finger Safe construction and a 1/4 inch lockout/tagout (LOTO) provision, plus a lock-on capability. These features help prevent accidental energization during maintenance and support safer servicing procedures in line with typical industrial safety programs.
The device is rated for 30A, operates at 50/60 Hz, and supports 600 Vac / 125 Vdc with a short-circuit rating of 200 kA. This combination ensures robust protection for circuits handling mid-range industrial loads and motors while accommodating both AC and DC control logic.
Yes. Its compact footprint and two-pole design simplify panel integration, reducing wiring time. Its safety features lower maintenance risk and downtime, while broad fuse compatibility minimizes parts stocking. In practice, these factors translate to faster service turns, safer work, and measurable uptime improvements in production environments.
