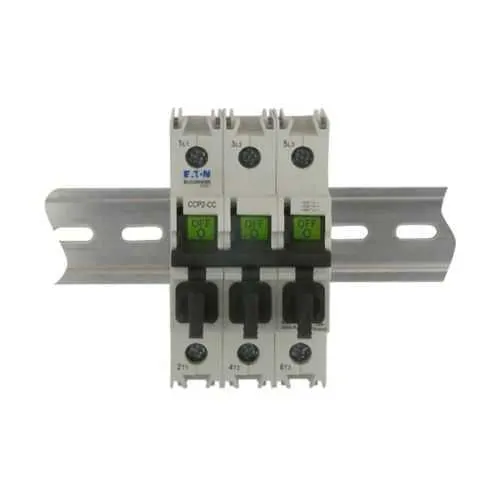

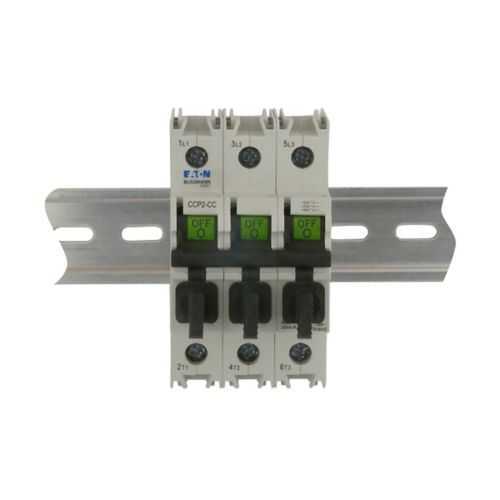

Eaton CCP2-2-30M Fusible Disconnect - UL98 30A Two-Pole
Part Number: CCP2-2-30M
Quick Summary
Eaton CCP2-2-30M fusible disconnect protects electrical circuits in control panels and motor feeders. Its compact two-pole design simplifies installation while delivering fast isolation for safety and maintenance. This device carries UL Recognized certification and RoHS compliance, with UL98 fusible disconnect architecture that aligns with stringent global standards. For engineers and procurement teams, the CCP2-2-30M provides predictable performance and reliable protection at 30 A. By standardizing on the CCP family, teams gain consistent electrical protection across panels, reducing part variety and streamlining sourcing, replacement parts, and spare inventory for critical equipment.
Product Information
Extended Description
CCP2-2-30M Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 30A, UL98 fusible disconnect, Two-pole, 60 Hz, Supplemental, 120 - CCP2-2-30M
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2-2-30M
UPC
051712709200
Product Length/Depth
4.5 in
Product Height
3.1 in
Product Width
1.4 in
Product Weight
1.46 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
UL Recognized
Amperage Rating
30A
Frequency rating
50/60 Hz
Short-circuit rating
120 kA
Voltage rating
400 Vac, 80 Vdc
Fuse type
Supplemental
Number Of Poles
Two-pole
Special features
Finger Safe, 1/4" LOTO
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2-2-30M
Feature: UL98 fusible disconnect rated at 30A with two poles. Business impact: provides fast, reliable isolation to protect motors and control circuits while meeting factory safety standards. Application: ideal for motor feeders and panel-level protection in industrial environments. Feature: Finger Safe enclosure with 1/4" LOTO compatibility. Business impact: reduces maintenance risk and supports compliant lockout/tagout procedures, enabling safer servicing. Application: maintenance windows and routine inspections in harsh or crowded cabinets. Feature: RoHS compliant and UL Recognized. Business impact: simplifies global sourcing and reduces regulatory hurdles, improving cross-border deployment. Application: global manufacturing and assembly lines requiring compliant components. Feature: Compact footprint and light weight (4.5 in L × 3.1 in H × 1.4 in W; 1.46 lb). Business impact: eases panel layout, enables denser control cabinets, and lowers shipping costs. Application: space-constrained electrical protection installations in control panels. Feature: 120 kA short-circuit rating and 400 Vac/80 Vdc voltage rating. Business impact: provides ample fault-current protection and compatibility with mixed-voltage systems, reducing redesigns. Application: high-demand power distributions and mixed-voltage motor circuits.
Get a Quick Quote for a Eaton CCP2-2-30M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2-2-30M?
Enquire Now
FAQs
The CCP2-2-30M is specified for 400 Vac operation with a 50/60 Hz frequency rating and a 30 A amperage rating, two-pole configuration, and a supplemental fuse type. It is designed for direct integration into control panels and motor feeder circuits, providing reliable isolation and protection without requiring additional adapters or changes to standard Eaton Bussmann CCP accessories.
The CCP2-2-30M carries a 120 kA short-circuit rating, enabling it to withstand high fault currents without compromising safety or equipment integrity. This rating helps protect downstream devices, reduces arc flash risk, and supports compliant installation in panels where fault currents can spike, ensuring robust protection for critical loads.
Yes. The CCP2-2-30M is specifically designed as a two-pole UL98 fusible disconnect for control panels and motor feeders. Its compact form factor, finger-safe enclosure, and 1/4" LOTO capability make it well-suited for space-constrained cabinets and maintenance workflows common in industrial environments.
The CCP2-2-30M is UL Recognized and RoHS Compliant, with a UL98 fusible disconnect designation. These certifications support regulatory compliance, reliability expectations, and global shipment readiness for equipment used in diverse markets.
Maintenance benefits include safer servicing via 1/4" LOTO and a straightforward replacement path from the Bussmann CCP series, minimizing downtime. ROI is driven by reliable protection, reduced fault-related outages, and streamlined procurement with a standard Eaton Bussmann protection family across panels, improving spare part availability and lifecycle planning.
