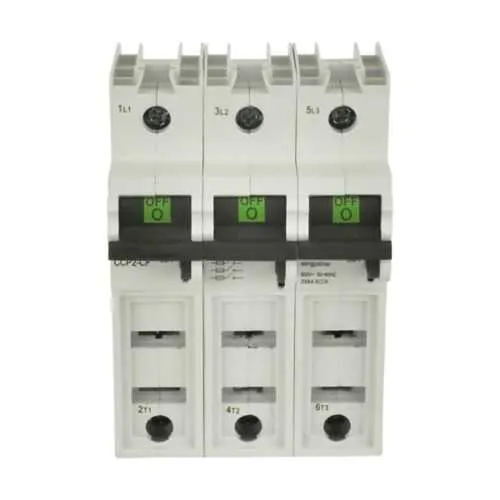

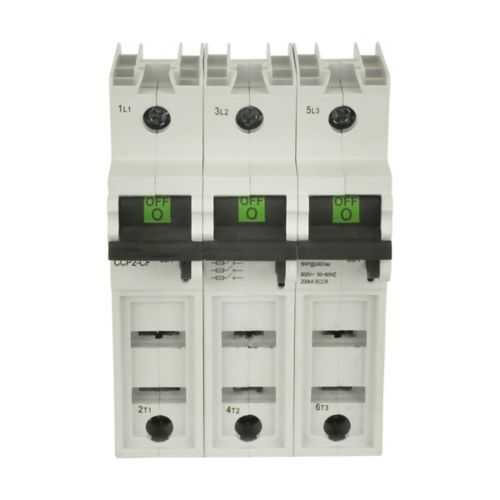

Eaton CCP2-3-100CF Fusible Disconnect - UL98, 100A/600V
Part Number: CCP2-3-100CF
Quick Summary
The Eaton CCP2-3-100CF fusible disconnect provides fast, safe isolation for three-pole mains circuits in industrial controls. Maintenance teams face arc-flash risk and downtime when servicing energized equipment; this unit enables safer lockout and predictable interrupting behavior. UL 98 listing confirms suitability for fuse protection in commercial and industrial environments, while RoHS compliance supports reduced hazardous substances and regulatory alignment. With finger-safe design and 1/4" LOTO compatibility, it integrates into standard control panels and simplifies commissioning, spare-part planning, and preventive maintenance. For engineers and procurement teams, this combination of safety features, reliability, and compatibility translates into reduced downtime, simplified compliance, and a clearer path to compliant panel builds.
Product Information
Extended Description
CCP2-3-100CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 600 Vac, 125 Vdc, 100A, UL98 fusible disconnect, Three-pole, 60 Hz, CUBEFuse, 200 - CCP2-3-100CF
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2-3-100CF
UPC
051712709323
Product Length/Depth
5.8 in
Product Height
3.6 in
Product Width
3 in
Product Weight
1.56 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
UL 98
Amperage Rating
100A
Frequency rating
50/60 Hz
Short-circuit rating
200
Voltage rating
600 Vac, 125 Vdc
Fuse type
CUBEFuse
Number Of Poles
Three-pole
Special features
Finger Safe, 1/4" LOTO
Suitable for fuses
TCF6 to TCF100 TCF1RN to TCF100RN FCF1RN to FCF100RN
CCP2-3-100CF~3 Pole Comp Ckt Protect 100A
CCP2-3-100CF~3 Pole Comp Ckt Protect 100A
Eaton Specification Sheet - CCP2-3-100CF
Three-pole, 100A, 600Vac rating delivers reliable, code-compliant isolation for six-slot motor control and process panels, reducing transition times between maintenance steps and minimizing unplanned downtime. This translates to improved plant uptime and safer servicing in high-energy environments, especially where three-phase power is prevalent. The CUBEFuse-based disconnect integrates seamlessly with commonly used fuse families, enabling straightforward replacement and standardization across multiple machines. Finger-safe construction and a 1/4" LOTO slot support safer maintenance workflows, reducing exposure risk and supporting compliant lockout-tagout procedures. RoHS compliance and UL 98 certification bolster regulatory alignment, supplier reliability, and end-customer trust, while the compact 5.8" depth and three-pole footprint fit narrow panel enclosures. The device’s suitability for TCF and RN fuse ranges adds flexibility for future upgrades without a panel redesign, driving lower total cost of ownership. In practice, panel builders gain faster commissioning, fewer spare parts, and clearer maintenance planning, all while maintaining robust short-circuit protection up to 200A and steady performance at 50/60 Hz.
Get a Quick Quote for a Eaton CCP2-3-100CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2-3-100CF?
Enquire Now
FAQs
CCP2-3-100CF is designed to work with multiple Bussmann fuse families, including TCF6 to TCF100, TCF1RN to TCF100RN, and FCF1RN to FCF100RN. This compatibility supports flexible replacement strategies, reduces spare-part variety, and simplifies upgrade paths within existing control panels. Ensure appropriate enclosure space and mounting clearances are maintained during swaps to preserve finger-safe and LOTO compliance.
UL 98 certification confirms conformance for fuse-disconnect applications, ensuring reliable performance under fault conditions and aligning with industrial safety standards. RoHS compliance reduces hazardous substances in the device, supporting environmental and regulatory requirements in many regions. Together, these certifications provide confidence for safety audits, maintenance planning, and procurement decisions in panel building and machine safety projects.
Yes. The CCP2-3-100CF is rated for 600 Vac and 125 Vdc, with a short-circuit rating of 200 A. This makes it suitable for standard industrial control circuits and mixed-voltage applications in machines and panels. When used at 50/60 Hz, the device maintains reliable interrupting performance, provided the installed fuse type and wiring comply with applicable codes and manufacturer guidelines.
Plan for a three-pole footprint with a compact 5.8 in depth, 3 in width, and 3.6 in height to fit standard control-panel cutouts. Take advantage of finger-safe design and 1/4" LOTO compatibility for safe servicing. Ensure panel space supports wiring terminals and allow clearance for heat dissipation. Use with appropriate fuse families (TCF or FCFRN) to maintain safety margins and regulatory compliance.
The CCP2-3-100CF provides reliable isolation, reduces downtime through safer maintenance workflows, and supports standardization across equipment with its UL 98 certification and RoHS compliance. Its compatibility with common fuse ranges enables easier upgrades and spare-part planning, lowering total cost of ownership while improving safety, compliance, and overall equipment availability in production environments.
