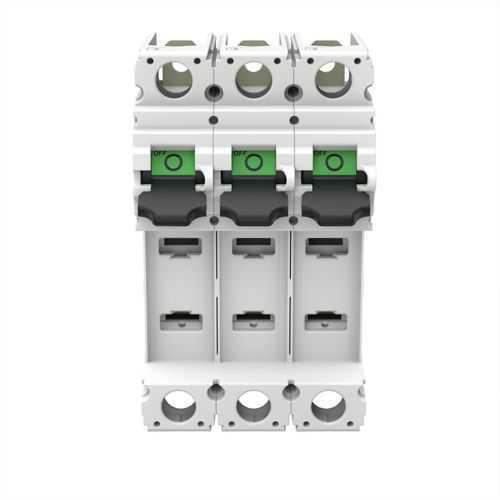

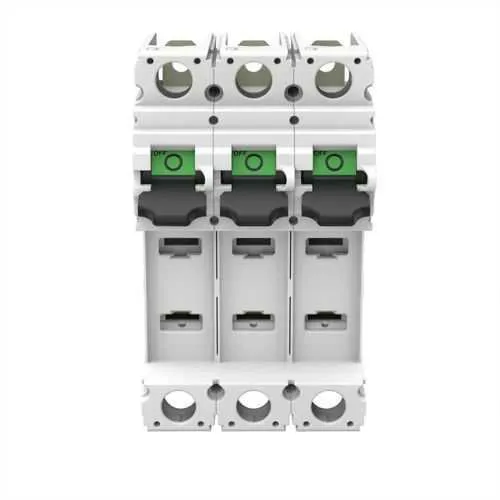

Eaton CCP2-3-200CF Fusible Disconnect - UL98
Part Number: CCP2-3-200CF
Quick Summary
Eaton CCP2-3-200CF is a UL98 fusible disconnect for isolating industrial power feeds. Operators often struggle with safe lockout, finger-safe access, and reliable fault isolation during maintenance. This unit delivers UL98 classification, Finger Safe design, and Lock-On provision to boost safety and regulatory compliance in harsh plant environments. With a 200 A rating and coverage for 600 VAC and 125 VDC, it supports demanding feeders while helping minimize downtime. Designed to streamline spare parts and service planning, the CCP2-3-200CF integrates smoothly with TCF110–TCF200 fuses for robust, long-term reliability.
Product Information
Extended Description
CCP2-3-200CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 200A, UL98 fusible disconnect, Three pole, 200KA
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2-3-200CF
UPC
051712690089
Product Length/Depth
4.7 in
Product Height
13.2 in
Product Width
4.1 in
Product Weight
3.7 lb
Warranty
Not Applicable
Compliances
Not Applicable
Amperage Rating
200A
Frequency rating
50/60 Hz
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Fuse type
CUBEFuse
Number Of Poles
Three-pole
Class
Class CF
Special features
Finger Safe, Lock-On provision
Suitable for fuses
TCF110 to TCF200 TCF100RN to TCF200RN
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2-3-200CF
Feature: UL98 fusible disconnect rating ensures code-compliant overcurrent protection and safe electrical isolation. Impact: Improves safety compliance and protects personnel during servicing. Application: Ideal for industrial panels and machine feeds where reliable isolation is required. Feature: Finger Safe and Lock-On provision reduce the risk of accidental contact and unauthorized operation. Impact: Enhances operator safety and provides secure maintenance workflows, lowering incident risk. Application: Maintenance floors and control panels with frequent access.Feature: Three-pole design supporting 200 A with 200 kAIC short-circuit rating. Impact: Enables high-load applications and resilient fault handling, reducing downtime after faults. Application: Large motor feeds and centralized power distribution in manufacturing lines.Feature: Compatibility with TCF fuses (TCF110–TCF200, TCF100RN–TCF200RN). Impact: Simplifies parts stocking and replacement, lowering total cost of ownership. Application: Retrofit projects and new builds needing standardized fuse compatibility.Feature: Compact footprint and defined dimensions (4.7 in depth, 13.2 in height, 4.1 in width) with 3.7 lb weight. Impact: Facilitates easier installation in crowded enclosures and panel spaces. Application: Panel upgrades and space-constrained control rooms.Feature: Voltage and frequency range (600 VAC, 125 VDC; 50/60 Hz). Impact: Supports diverse industrial power systems, enhancing versatility and uptime. Application: Mixed-voltage control panels and equipment rooms requiring flexible protection.
Get a Quick Quote for a Eaton CCP2-3-200CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2-3-200CF?
Enquire Now
FAQs
Yes. CCP2-3-200CF is designed for use with Bussmann TCF fuses, including TCF110 through TCF200 and RN variants such as TCF100RN through TCF200RN. This compatibility simplifies stocking and supports straightforward replacement in existing protection schemes, while preserving the three-pole, 200 A configuration for reliable protection in control panels.
The unit is rated for 200 A, with a voltage rating of 600 VAC and 125 VDC, and a short-circuit rating of 200 kAIC. It operates at 50/60 Hz, ensuring compatibility with most industrial power systems. The CUBEFuse-based design provides dependable protection in demanding environments.
Yes, the CCP2-3-200CF supports 600 VAC systems, which covers 480 V nominal systems commonly used in industrial settings. Its 200 kAIC short-circuit rating ensures robust fault current handling for high-energy applications, making it suitable for motor feeders and large control panels where fault containment is critical.
The primary certification is UL 98, indicating compliance for UL-listed fusible disconnects. Additional safety features include Finger Safe construction and a Lock-On provision to prevent inadvertent operation. These elements collectively improve operator safety, maintenance reliability, and regulatory alignment in industrial installations.
By delivering reliable, code-compliant isolation and compatible fuse replacement with TCF series, the CCP2-3-200CF minimizes downtime during maintenance and simplifies spare parts planning. The compact footprint and common interface reduce enclosure modification efforts, enabling faster service, fewer parts on hand, and a lower total cost of ownership over the equipment lifecycle.
