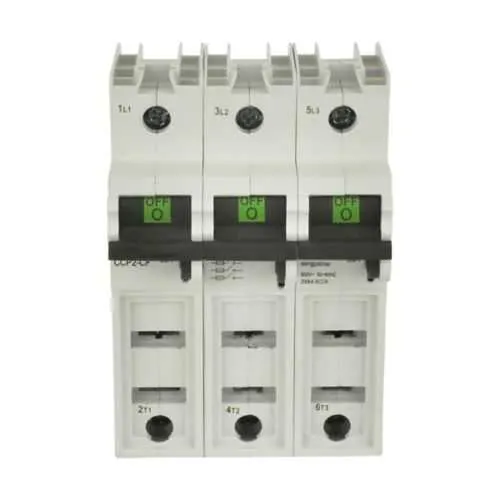

Eaton CCP2-3-30CF CCP UL98 Fusible Disconnect - UL98
Part Number: CCP2-3-30CF
Quick Summary
Eaton CCP2-3-30CF is a UL98 fusible disconnect for safe isolation of three-pole electrical circuits in industrial panels. Maintenance teams often contend with downtime during fuse changes and the risk of unintended re-energization. Key certifications and safety features include UL 98 compliance, Finger Safe design, and a 1/4-inch LOTO provision, backed by a 200 kA short-circuit rating. Designed for Eaton Bussmann series protection schemes, it supports TC F fuses and offers reliable, easy field installation that minimizes downtime and simplifies compliance.
Product Information
Extended Description
CCP2-3-30CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 225A, UL98 fusible disconnect, Three-pole, 200 kA - CCP2-3-30CF
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2-3-30CF
UPC
051712709262
Product Length/Depth
4.5 in
Product Height
3 in
Product Width
3 in
Product Weight
3.7 lb
Warranty
Not Applicable
Certifications
UL 98
Amperage Rating
30A
Frequency rating
50/60 Hz
Short-circuit rating
200 kA
Voltage rating
600 Vac, 125 Vdc
Fuse type
CUBEFuse
Number Of Poles
Three-pole
Special features
Finger Safe, 1/4" LOTO
Suitable for fuses
TCF6 to TCF30 TCF1RN to TCF30RN FCF1RN to FCF30RN
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2-3-30CF
Feature: UL 98 listed CCP2-3-30CF provides proven, code-compliant circuit protection. Business Impact: Reduces compliance risk and ensures predictable fuse coordination across motor and power-distribution applications. Application: Ideal for three-pole motor control panels and protection enclosures in manufacturing lines. Feature: Finger Safe enclosure with a 1/4" LOTO option enhances maintenance safety and worker protection. Business Impact: Lowers arc-flash exposure and supports safe servicing practices, reducing incident risk. Application: Maintenance shutdowns and lockout/tagout procedures in industrial environments. Feature: 30A, 600 Vac / 125 Vdc electrical ratings with a 200 kA short-circuit rating. Business Impact: Handles common industrial loads with high fault tolerance, minimizing nuisance blows and downtime. Application: Drive systems, conveyors, and equipment power feeds in harsh manufacturing settings. Feature: Three-pole, compact footprint (4.5 in depth, 3 in height and width) weighing 3.7 lb. Business Impact: Easy installation in crowded panels and retrofits, saving mounting space and labor. Application: Panel upgrades and new installations where space is at a premium. Feature: Compatibility with TCF6–TCF30 and FCF1RN–FCF30RN fuse ranges enables seamless replacement and future-proofing. Business Impact: Simplifies design decisions and reduces spare-part inventories. Application: Standardized protection schemes in Eaton Bussmann lineups for ongoing maintenance. Feature: Lock-On provision and three-pole configuration support robust isolation during service and testing. Business Impact: Improves safety discipline and helps meet workplace safety programs. Application: Industrial equipment installations requiring secure energization control and safe servicing.
Get a Quick Quote for a Eaton CCP2-3-30CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2-3-30CF?
Enquire Now
FAQs
CCP2-3-30CF is a three-pole UL98 fusible disconnect designed for Eaton Bussmann series protection. It is compatible with the TCF6 to TCF30 fuse range and the FCF1RN to FCF30RN range, enabling straightforward integration into standard motor control panels and equipment protection schemes.
The unit is rated for 30A, 600 Vac and 125 Vdc, with a short-circuit rating of 200 kA. These specifications support reliable isolation and fuse coordination for typical industrial motors and control circuits, delivering robust protection against fault events while maintaining efficient operation.
Yes. With UL 98 certification, Finger Safe construction, and a lock-out provision, the device is designed for safe maintenance and reliable motor circuit protection in demanding industrial settings, helping to mitigate arc flash risk and ensure compliance during servicing.
UL 98 certification confirms the device is suitable for fuse-protected disconnects in industrial applications, meeting recognized safety standards. The Finger Safe design and 1/4" LOTO feature further support safety programs, while the 200 kA SCCR ensures robustness against high fault currents common in plant environments.
Adopting CCP2-3-30CF can reduce downtime through quick, safe fuse changes and secure lock-out during maintenance. Its compatibility with familiar Bussmann fuse families minimizes spare-parts stock, while UL 98 compliance and high SCCR support regulatory alignment, delivering long-term safety and reliability benefits.
