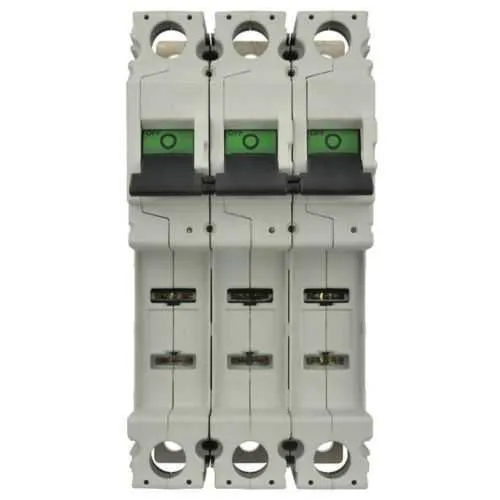

Eaton CCP2-3-400CF Fusible Disconnect - UL98
Part Number: CCP2-3-400CF
Quick Summary
Eaton CCP2-3-400CF Fusible Disconnect protects motor and power circuits in industrial panels. When faults occur, its fast isolation minimizes downtime and protects downstream equipment from damage. UL98 listing with 600 Vac / 125 Vdc rating and 200 kAIC short-circuit capability provide essential safety and reliability. Finger-safe enclosure and lock-on provision simplify maintenance and meet code requirements. Designed for compact spaces, it pairs with the Eaton Bussmann CCP family to reduce wiring complexity and inventory while delivering robust protection.
Product Information
Extended Description
CCP2-3-400CF Eaton: Eaton Bussmann Series compact circuit protector, CUBEFuse, 600Vac, 125Vdc, 400A, Three-pole
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2-3-400CF
UPC
051712690447
Product Length/Depth
5.2 in
Product Height
14.3 in
Product Width
5.4 in
Product Weight
8.751 lb
Warranty
Not Applicable
Compliances
Not Applicable
Amperage Rating
400A
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Number Of Poles
Three pole
Special features
Finger Safe, Lock-On provision
The CCP2-3-400CF employs a three-pole, compact design that reduces panel footprint while delivering full load management, enabling more efficient layouts and easier wiring in confined spaces. This translates to tangible business benefits such as faster installation and reduced enclosure costs. The 400 A amperage rating supports heavy motor loads and minimizes nuisance trips, improving overall line reliability and equipment uptime in manufacturing environments. With 600 Vac and 125 Vdc voltage ratings, it enables safe isolation of mixed-voltage circuits within a single device, simplifying panel design and maintenance planning. The 200 kAIC short-circuit rating provides higher fault withstand, reducing insulation stress and potential damage during faults and enabling safer energy isolation in MCCs and switchgear. Finger-safe construction and a lock-on provision enhance maintenance safety and prevent accidental re-energization, helping facilities meet stringent safety standards. Finally, compatibility with the CCP family simplifies procurement, spares strategy, and technician training, delivering consistent performance across industrial applications and reducing total cost of ownership in OEM and end-user installations.
Get a Quick Quote for a Eaton CCP2-3-400CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2-3-400CF?
Enquire Now
FAQs
CCP2-3-400CF is a three-pole, compact disconnect designed for MCCs, switchgear, and control panels that run at 600 Vac or 125 Vdc. Its footprint and mounting align with standard Eaton CCP installations, and its finger-safe enclosure supports safe wiring and maintenance. Verify panel clearance and terminal block compatibility to ensure proper fit.
Key ratings include 400 A continuous amperage, 600 Vac and 125 Vdc voltage ratings, and 200 kAIC short-circuit capability. The three-pole configuration supports coordinated protection for line, load, and control circuits, while the UL98 listing confirms compliance with electrical-distribution safety standards. This makes it suitable for motor drives and feeders in industrial settings.
Install CCP2-3-400CF by mounting it in a compatible panel section, wiring the three poles to the protected load with proper torque on terminals, and using the lock-on feature to prevent accidental re-energization during maintenance. Ensure conductor sizes, clearances, and protective covers align with OEM guidelines and local codes.
Yes, CCP2-3-400CF is UL98 listed, indicating compliance with branch-circuit protection standards for disconnect devices. This supports safe isolation and predictable performance in industrial installations. Always confirm local requirements (CE/IP ratings, if applicable) and perform periodic inspections to maintain ongoing compliance and safe operation.
Using CCP2-3-400CF can reduce downtime through fast, predictable fault isolation and lower arc flash exposure during maintenance. Its standardization within the CCP family simplifies spare parts, training, and maintenance routines, lowering lifecycle costs while optimizing panel space and wiring complexity in modern control architectures.
