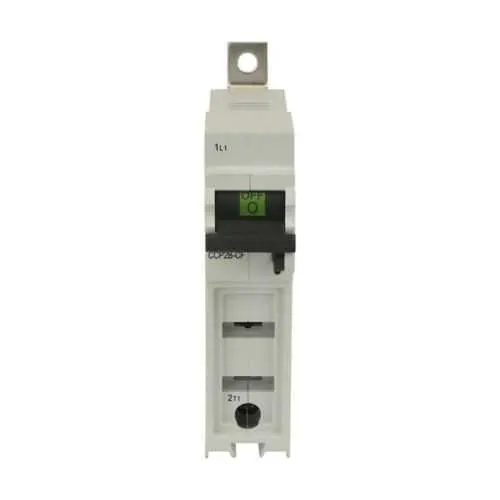

Eaton CCP2B-1-30CF Fusible Disconnect - UL98 Certified
Part Number: CCP2B-1-30CF
Quick Summary
The Eaton CCP2B-1-30CF is a UL98 fusible disconnect for safe motor and panel isolation. Engineers frequently struggle with safe maintenance isolation in compact enclosures and with preventing accidental contact. This unit carries UL98 protection and CCC marked compliance, with Finger Safe construction and Lock-On provision to meet stringent safety and regulatory requirements. For OEMs and service teams, it minimizes downtime with a compact footprint, quick installation, and reliable electrical protection.
Product Information
Extended Description
CCP2B-1-30CF Eaton: Eaton Bussmann series CCPB UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 225A, UL98 fusible disconnect, Single-pole, 200 kA - CCP2B-1-30CF
Product Name
Eaton Bussmann series CCPB UL98 fusible disconnect
Catalog Number
CCP2B-1-30CF
UPC
051712709392
Product Length/Depth
2.7 in
Product Height
3.9 in
Product Width
3 in
Product Weight
3.7 lb
Warranty
Not Applicable
Compliances
CCC Marked
Certifications
Contact Manufacturer
Amperage Rating
225 A
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Number Of Poles
Single-pole
Special features
Finger Safe, Lock-On provision
The CCP2B-1-30CF uses the UL98 fusible disconnect design to deliver clear, supervised isolation for power circuits, enhancing equipment protection and enabling faster start-up after service. This feature translates to tangible business impact: reduced unplanned downtime and improved maintenance safety in motor control and power distribution applications, particularly in compact or crowded panel environments. In practice, technicians install and test quickly, enabling safer servicing of industrial machinery while maintaining compliance with electrical protection standards. The unit’s Finger Safe construction and Lock-On provision directly address finger contact risks and inadvertent disconnections, enabling safer routine inspections and reduced risk during live-line work in commercial facilities and manufacturing floors. The combination of these features supports safer panel safety and faster changeovers during shift handoffs and routine maintenance.
Get a Quick Quote for a Eaton CCP2B-1-30CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2B-1-30CF?
Enquire Now
FAQs
The CCP2B-1-30CF is a single-pole, UL98 fusible disconnect designed for standard industrial panels. Its compact footprint (2.7 in depth, 3 in width, 3.9 in height) fits tight spaces, while its finger-safe design and Lock-On provision ensure secure operation during maintenance. Compatibility emphasizes 600 Vac and 125 Vdc ratings for mixed-voltage panels, and a 225 A continuous current capability, making it suitable for motor control centers and power-distribution panels.
Key specs include a 225 A amperage rating, 200 kAIC short-circuit rating, and voltage ratings of 600 Vac / 125 Vdc. The unit is a single-pole disconnect with Finger Safe construction, supporting reliable isolation and safety during servicing in industrial equipment and control panels. These values determine suitability for medium-duty motor circuits and panel protection in automated facilities.
This disconnect excels in motor control applications and industrial automation panels where safe maintenance isolation is critical. It provides a robust main-disconnect function for single-phase or line-side protection in power distribution, offering rapid disconnection during servicing while meeting stringent safety standards. Its compact size also makes it ideal for OEM enclosures and retrofit projects in manufacturing lines.
The CCP2B-1-30CF carries UL98 fusible disconnect qualification and CCC Marked compliance, with Finger Safe construction and a Lock-On provision. These features help align with global electrical protection standards, reduce risk of accidental contact, and streamline regulatory acceptance for equipment used in diverse markets, including OEM panels and service environments.
Investing in the CCP2B-1-30CF yields lower maintenance downtime due to straightforward installation and secure operation. The Finger Safe design minimizes ergonomic risk during servicing, while the Lock-On feature prevents inadvertent reselection. With a high short-circuit rating and solid voltage versatility, ongoing preventive maintenance is simpler, and the risk-adjusted downtime for motor-driven processes is reduced, delivering measurable ROI over equipment life.
