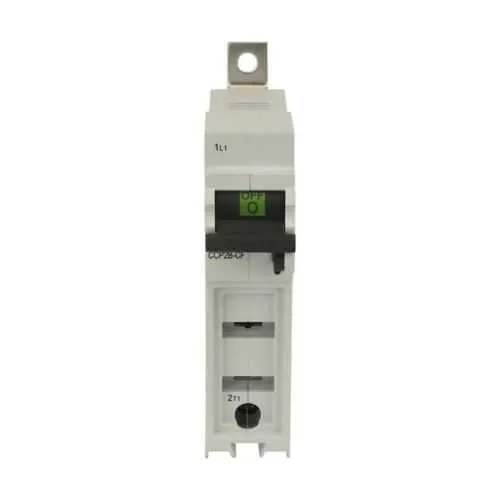

Eaton CCP2B-2-15CF UL98 Fusible Disconnect - 200 kAIC
Part Number: CCP2B-2-15CF
Quick Summary
CCP2B-2-15CF is a UL98 fusible disconnect designed to safely isolate electrical feeds in industrial control panels. Engineers often struggle with finger-safe enclosures and reliable lock-out capabilities in high-current environments; this unit offers both Finger Safe design and a robust Lock-On provision. Featuring UL98 certification and CCC Marked compliance, it aligns with critical regulatory expectations while providing clear documentation for audits and specifications. With a 225 A rating and 200 kAIC short-circuit capacity, it minimizes fault exposure in demanding automation applications. The two-pole configuration supports straightforward installation and predictable phasing, delivering meaningful business value through safer operations, reduced downtime, and improved panel reliability in modern electrical protection schemes.
Product Information
Extended Description
CCP2B-2-15CF Eaton: Eaton Bussmann series CCPB UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 225A, UL98 fusible disconnect, Two-pole, 200 kA - CCP2B-2-15CF
Product Name
Eaton Bussmann series CCPB UL98 fusible disconnect
Catalog Number
CCP2B-2-15CF
UPC
051712709347
Product Length/Depth
2.7 in
Product Height
3.9 in
Product Width
3 in
Product Weight
3.7 lb
Warranty
Not Applicable
Compliances
CCC Marked
Certifications
Contact Manufacturer
Amperage Rating
225 A
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Number Of Poles
Two-pole
Special features
Finger Safe, Lock-On provision
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2B-2-15CF
Feature: UL98 fusible disconnect design delivers proven fault isolation for power circuits. Benefit: enhances safety and reliability in industrial protection schemes, reducing risk during maintenance and fault events. Application: control panels and motor control centers where reliable isolation is essential. Feature: Finger Safe housing. Benefit: lowers the chance of accidental contact and improves operator safety during routine operations. Application: service entrances and access points in automated lines. Feature: Lock-On provision. Benefit: prevents unintended reset or re-energization, supporting compliant lockout-tagout procedures. Application: maintenance windows and safety-critical equipment. Feature: High current and short-circuit ratings (225 A, 200 kAIC). Benefit: supports demanding loads and fast fault clearance, minimizing arc energy exposure. Application: heavy equipment, conveyors, and automated presses. Feature: Compact, two-pole form factor (2.7 in D, 3 in W, 3.9 in H). Benefit: simplifies panel layout and saves enclosure space. Application: tight-control panels and retrofits where space is at a premium. Feature: 600 Vac / 125 Vdc voltage ratings. Benefit: versatile isolation across AC and DC control circuits, improving design flexibility. Application: mixed-voltage automation systems and industrial drives. Feature: Documentation and compliance trail (CCC Marked; UL98 reference). Benefit: streamlines procurement, testing, and regulatory reviews. Application: system integrators and OEMs seeking readily auditable solutions.
Get a Quick Quote for a Eaton CCP2B-2-15CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2B-2-15CF?
Enquire Now
FAQs
Yes. CCP2B-2-15CF is a two-pole UL98 fusible disconnect designed for common industrial control panel installations, with standard mounting and spacing that fit typical Bussmann-series assemblies and control enclosures.
The unit is rated for 225 A amperage, 200 kAIC short-circuit capacity, and voltage ratings of 600 Vac and 125 Vdc, making it suitable for high-load industrial applications and mixed-voltage control circuits.
It includes Finger Safe housing and a Lock-On provision to prevent accidental contact and accidental re-energization, supporting safe lockout-tagout procedures during service.
Ideal for industrial power distribution, motor control centers, panel isolation, and automation lines where reliable isolation, safety, and high-current capability are required.
The part is identified as a UL98 fusible disconnect and is CCC Marked for compliance. For full certification details, refer to the Eaton datasheet and specification sheets.
