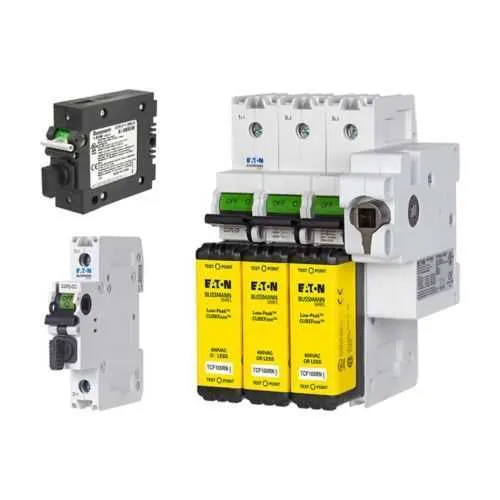

Eaton CCP2B-2-90CF Fusible Disconnect - UL98 Rated
Part Number: CCP2B-2-90CF
Quick Summary
CCP2B-2-90CF is a UL98 fusible disconnect switch designed to safely isolate 100 A circuits. Maintenance teams often struggle with safe isolation during servicing and need compact, compliant disconnects that fit in limited spaces. This unit carries UL 98 listing, handles up to 200 kAIC fault currents, and supports 600 Vac / 125 Vdc in a two-pole configuration. For OEMs and service teams, it integrates with the Eaton Bussmann CCPB family to streamline installation and improve panel safety. Its compact footprint and standard mounting patterns reduce panel depth and simplify spare-part inventories, delivering lower lifecycle costs and faster maintenance readiness. This combination supports safe, compliant upgrades across new and existing installations.
Product Information
Extended Description
CCP2B-2-90CF Eaton: Eaton Bussmann series CCPB UL98 fusible disconnect, 600 Vac, 125 Vdc, 100A, UL98 fusible disconnect, Two-pole, 60 Hz, CUBEFuse, 200 - CCP2B-2-90CF
Product Name
Eaton Bussmann series CCPB UL98 fusible disconnect
Catalog Number
CCP2B-2-90CF
UPC
051712709552
Product Length/Depth
3.4 in
Product Height
5.3 in
Product Width
3 in
Product Weight
1.04 lb
Warranty
Not Applicable
Compliances
RoHS Compliant Not Applicable
Amperage Rating
100A
Frequency rating
60 Hz
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Fuse type
CUBEFuse
Number Of Poles
Two-pole
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2B-2-90CF
Feature: UL98 fusible disconnect with 600 Vac / 125 Vdc ratings ensures reliable, code-compliant isolation. Business Impact: reduces exposure to arc energy, meets safety standards, and supports compliance audits. Application: installation in control panels and machine safety circuits within industrial facilities. Feature: Two-pole design, 60 Hz, with 200 kAIC short-circuit capability. Business Impact: withstands high fault currents without compromising protection, enabling faster fault clearing. Application: panel feeders and motor drives in manufacturing lines. Feature: CUBEFuse fuse type provides predictable protection and standardization. Business Impact: simplifies maintenance planning, reduces spare parts inventory, and improves mean-time-to-repair. Application: service disconnects and spare-fuse provisioning in OEM panels. Feature: Compact dimensions (3.4 in depth, 5.3 in height, 3 in width) and 1.04 lb weight. Business Impact: easier installation in tight enclosures and lower shipping costs. Application: retrofit projects and small footprint control cabinets in facilities. Feature: CCPB family alignment and availability of catalogs and datasheets. Business Impact: streamlines procurement, reduces design risk, and ensures compatibility with existing Eaton CCPB installations. Application: design validation and panel engineering workstreams. Feature: Robust documentation and standards references including UL listings and datasheets. Business Impact: supports compliance verification, QA sign-offs, and maintenance training. Application: design reviews and commissioning in regulated environments.
Get a Quick Quote for a Eaton CCP2B-2-90CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2B-2-90CF?
Enquire Now
FAQs
CCP2B-2-90CF is designed for standard panel installations within the CCPB family footprint. It uses a two-pole configuration and provides straightforward wiring for control panels and machine safety circuits. When wiring, ensure compliance with the 600 Vac / 125 Vdc ratings and maintain proper clearance around the fuse links for safe maintenance access.
Key ratings include a 100 A amperage rating, 600 Vac / 125 Vdc voltage ratings, 60 Hz frequency, and a 200 kAIC short-circuit rating. These specs determine coordination with upstream protection, fault current handling, and safe de-energization during faults or maintenance activities.
Yes. The CCP2B-2-90CF is designed for electrical protection and control in industrial panels, including motor control and PLC enclosures. Its UL98 listing, two-pole design, and compact footprint support reliable isolation while preserving enclosure space and wiring simplicity in typical automation environments.
The primary certification is UL 98 listing, which provides recognized protection for disconnect devices in control circuits. The unit supports high fault currents and standard industrial voltage ratings. RoHS status is Not Applicable for this variant. These factors aid safety audits, customer acceptance, and regulatory compliance in regulated industries.
Maintenance benefits come from predictable CUBEFuse protection and the CCPB family’s standardization, enabling fast part replacements and minimal wiring changes. Spare parts are readily available from Bussmann catalogs, reducing downtime. Over the lifecycle, this translates to shorter maintenance windows, fewer unplanned outages, and improved overall equipment effectiveness (OEE) in production environments.
