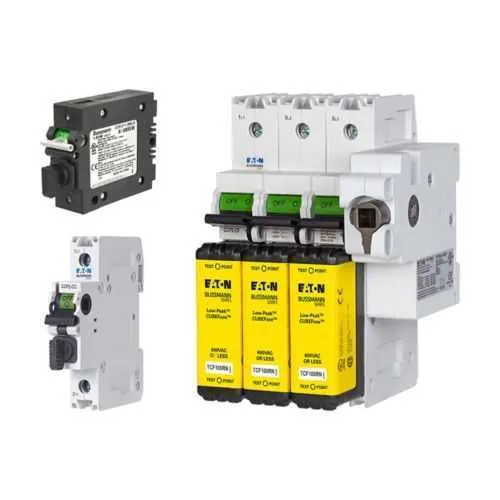

Eaton CCP2R-2-30CF Fusible Disconnect - UL98 (3-Pole)
Part Number: CCP2R-2-30CF
Quick Summary
Eaton CCP2R-2-30CF is a UL98 fusible disconnect designed for reliable circuit protection in industrial control panels and motor drives. Design engineers often struggle with safe isolation in compact enclosures and the risk of accidental contact during maintenance. This unit delivers UL 98 fusible disconnect certification, CCC Marked compliance, and finger-safe, lock-on features that enhance operator safety and process reliability. Ideal for 600 Vac systems and 225 A service, it supports TC-series fuses and reduces downtime, delivering predictable protection and a lower total cost of ownership in demanding automation environments.
Product Information
Extended Description
CCP2R-2-30CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 225A, UL98 fusible disconnect, Three-pole, 200 kA - CCP2R-2-30CF
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2R-2-30CF
UPC
051712709842
Product Length/Depth
3.3 in
Product Height
8.1 in
Product Width
3 in
Product Weight
3.7 lb
Warranty
Not Applicable
Compliances
CCC Marked
Amperage Rating
225 A
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Number Of Poles
Three-pole
Special features
Finger Safe, Lock-On provision
Suitable for fuses
TCF6 to TCF30 TCF1RN to TCF30RN FCF1RN to FCF30RN
CCP2R-2-30CF~CCP2 2P 30A CF W/ROTARY HandM RIGHT
CCP2R-2-30CF~CCP2 2P 30A CF W/ROTARY HandM RIGHT
Eaton Specification Sheet - CCP2R-2-30CF
Feature: 225 A amperage rating and 200 kAIC short-circuit rating. Business impact: Provides robust protection for heavy loads and high fault-duty circuits, reducing fuse blow frequency and limiting arc exposure. Application: 3-phase motor drives and large control panels in manufacturing lines. Feature: 600 Vac and 125 Vdc voltage ratings. Business impact: Safe isolation across AC and DC portions, preventing backfeed and ensuring personnel safety during maintenance. Application: power distribution to machines and DC control circuits in process environments. Feature: Finger Safe and Lock-On provision. Business impact: Improves operator safety and ensures positive, tamper-resistant isolation during service windows. Application: panel installations in OEM equipment and upgrade projects needing secure disconnection. Feature: Three-pole configuration. Business impact: Simplifies wiring, ensures correct phasing, and reduces wiring errors during installation. Application: 3-phase feeders in conveyors, pumps, and pack line systems. Feature: Fuse compatibility. Business impact: Wide fuse compatibility (TCF6–TCF30, TCF1RN–TCF30RN, FCF1RN–FCF30RN) reduces inventory and simplifies retrofits. Application: Modernizing legacy equipment with Bussmann series fuses. Feature: Compact footprint and weight. Business impact: Smaller enclosure footprint enables denser control panels and easier service access. Application: Control cabinets where space is at a premium without compromising protection.
Get a Quick Quote for a Eaton CCP2R-2-30CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2R-2-30CF?
Enquire Now
FAQs
CCP2R-2-30CF is compatible with Bussmann series fuses including TCF6 to TCF30, TCF1RN to TCF30RN, and FCF1RN to FCF30RN. This broad compatibility simplifies inventory and future upgrades, enables rapid fuse replacements in the field, and minimizes downtime during maintenance without sacrificing safety or performance.
Install the three-pole CCP2R-2-30CF in a suitable enclosure, connect line and load per your control wiring diagram, and secure with the built-in Lock-On provision. The finger-safe design minimizes contact risk during cover removal and maintenance, while the compact footprint helps fit within tight panel layouts.
The CCP2R-2-30CF provides a 225 A amperage rating, a 200 kAIC short-circuit rating, and voltage ratings of 600 Vac and 125 Vdc. It is a three-pole disconnect designed to isolate three-phase circuits safely, supporting robust protection for high-demand equipment.
Yes. The CCP2R-2-30CF features UL98 certification for fusible disconnect functionality and CCC Marked compliance for regional regulatory requirements, ensuring safe integration into multinational electrical installations and aiding compliance reporting.
By delivering reliable fault isolation, finger-safe operation, and a Lock-On feature, CCP2R-2-30CF reduces maintenance downtime and operator risk. Its compatibility with a wide fuse family and compact footprint support streamlined spare-part planning and space-conscious panel design, improving overall uptime and total cost of ownership.
