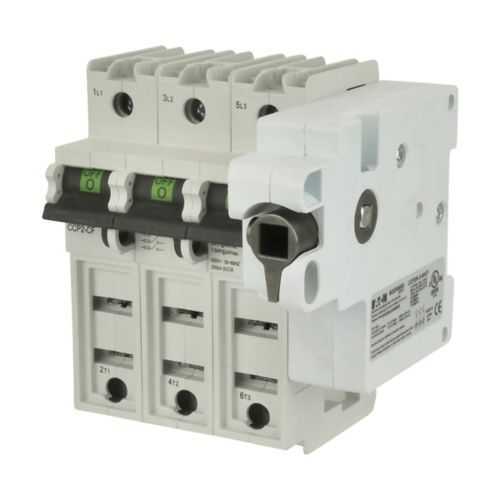

Eaton CCP2R-3-100CF Fusible Disconnect - UL98
Part Number: CCP2R-3-100CF
Quick Summary
Eaton CCP2R-3-100CF fusible disconnect provides safe isolation for three‑phase power circuits in industrial control panels. Downtime from fault isolation and fuse changes often drives maintenance costs and safety concerns. This UL98 rated device is RoHS compliant and designed for 600 Vac / 125 Vdc service, with a 100 A current rating and a 200 kAIC short‑circuit capability, delivering reliable protection in demanding environments. The three‑pole, 60 Hz CUBEFuse configuration integrates smoothly with Bussmann fuses, helping streamline spare parts, improve maintenance lead times, and support regulatory readiness across modern manufacturing lines.
Product Information
Extended Description
CCP2R-3-100CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 600 Vac, 125 Vdc, 100A, UL98 fusible disconnect, Three-pole, 60 Hz, CUBEFuse, 200 - CCP2R-3-100CF
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2R-3-100CF
UPC
051712710015
Product Length/Depth
3.9 in
Product Height
9.5 in
Product Width
3 in
Product Weight
1.95 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
100A
Frequency rating
60 Hz
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Fuse type
CUBEFuse
Number Of Poles
Three-pole
Suitable for fuses
TCF6 to TCF100 TCF1RN to TCF100RN FCF1RN to FCF100RN
CCP2R-3-100CF~3 Pole Comp Ckt Protect 100A
CCP2R-3-100CF~3 Pole Comp Ckt Protect 100A
Eaton Specification Sheet - CCP2R-3-100CF
Feature → Business Impact → Application: The CCP2R-3-100CF uses a three‑pole CUBEFuse design rated at 100 A and built for 600 Vac / 125 Vdc service, with a 200 kAIC short‑circuit rating. This combination delivers fast, reliable fault isolation while minimizing arc flash risk and downtime in motor drives and control panels. Application: ideal for three‑phase protection in industrial equipment where quick disconnection is critical for uptime and personnel safety. Feature → Business Impact → Application: RoHS compliant construction and UL98 recognition provide regulatory confidence and procurement consistency, reducing compliance risk and audit prep time. Application: suitable for OEM builds and retrofit projects in food & beverage, packaging, and process industries where environmental and safety certifications matter. Feature → Business Impact → Application: wide fuse compatibility with TCF6–TCF100 and FCF1RN–FCF100RN families simplifies stocking and maintenance planning, enabling faster fuse swaps and reduced inventory variety. Application: panel builders benefit from a single, interchangeable disconnect solution across multiple line-ups. Feature → Business Impact → Application: compact footprint (3.9 in depth, 9.5 in height, 3 in width) and modest weight (1.95 lb) fit standard electrical cabinets, simplifying enclosure design and reducing installation time. Application: retrofit and new builds in crowded or space‑constrained panels where footprint matters. Feature → Business Impact → Application: 60 Hz operation with robust short‑circuit protection supports reliable, continuous operation in typical industrial environments like conveyors, pumps, and presses, ensuring consistent performance under load.
Get a Quick Quote for a Eaton CCP2R-3-100CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2R-3-100CF?
Enquire Now
FAQs
CCP2R-3-100CF is designed for compatibility with Bussmann fuse families including TCF6 to TCF100, TCF1RN to TCF100RN, and FCF1RN to FCF100RN. This wide compatibility simplifies stocking and ensures quick, reliable replacements. In practice, technicians appreciate the ability to source a single disconnect that accommodates multiple fuse types across 3‑phase systems.
The CCP2R-3-100CF provides a 100 A amperage rating, supports 600 Vac and 125 Vdc operating voltages, and offers a 200 kAIC short‑circuit rating. It operates at 60 Hz, making it suitable for standard industrial power distribution and motor control circuits while maintaining strong fault isolation performance.
Yes. With three‑pole construction and a 100 A rating, it is well suited for protecting three‑phase motors, drives, and control panels in manufacturing environments. Its UL98 recognition and RoHS compliance help with regulatory paperwork, while the compact footprint supports integration in crowded control cabinets.
The CCP2R-3-100CF is RoHS compliant and is described as a UL98 fusible disconnect in its product documentation. This combination supports regulatory compliance and safe, validated performance in applications requiring recognized standards. For formal certification status, refer to the manufacturer’s documentation or contact Eaton directly.
The unit measures 3.9 inches in depth, 9.5 inches in height, and 3 inches in width, weighing about 1.95 pounds. Its compact footprint is designed for standard electrical enclosures, enabling straightforward installation and easier retrofits in existing panels without extensive cabinet modification.
