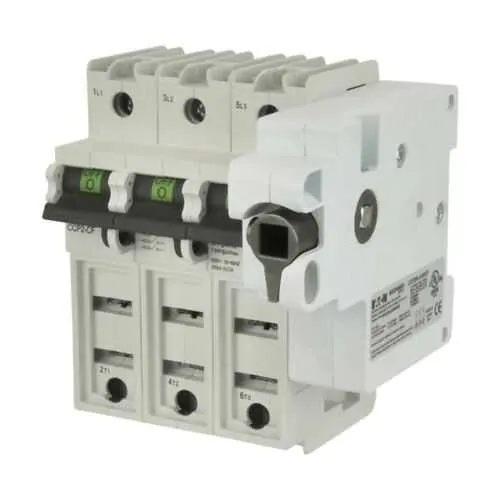

Eaton CCP2R-3-30CF Fusible Disconnect - UL98
Part Number: CCP2R-3-30CF
Quick Summary
The Eaton CCP2R-3-30CF is a UL98 fusible disconnect for safe power isolation in industrial panels. Engineers often wrestle with finger hazards, cramped spaces, and time-consuming fuse maintenance in control cabinets. This device carries UL listing and CCC marking while delivering 225 A, 200 kAIC, and a 600 Vac / 125 Vdc rating to support demanding control environments. With finger-safe design and Lock-On provision, it helps improve safety, reduce downtime, and simplify compliance. In addition, this model complements the Eaton Bussmann series protection lineup and suitable fuses for fast, reliable installations in modern automation facilities.
Product Information
Extended Description
CCP2R-3-30CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 225A, UL98 fusible disconnect, Three-pole, 200 kA - CCP2R-3-30CF
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2R-3-30CF
UPC
051712709859
Product Length/Depth
2.9 in
Product Height
3.7 in
Product Width
0.3 in
Product Weight
3.7 lb
Warranty
Not Applicable
Compliances
CCC Marked
Certifications
Contact Manufacturer
Amperage Rating
225 A
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Number Of Poles
Three-pole
Special features
Finger Safe, Lock-On provision
Suitable for fuses
TCF6 to TCF30 TCF1RN to TCF30RN FCF1RN to FCF30RN
CCP2R-3-30CF~CCP2 3P 30A CF W/ROTARY HandM RIGHT
CCP2R-3-30CF~CCP2 3P 30A CF W/ROTARY HandM RIGHT
Eaton Specification Sheet - CCP2R-3-30CF
Feature: Three-pole configuration provides true three-phase isolation; Business Impact: simplifies wiring and guarantees consistent phase protection during maintenance; Application: motor drives and control panels in manufacturing lines. Feature: Finger Safe design reduces risk during fuse handling; Business Impact: lowers arc flash potential and operator injuries; Application: routine fuse replacement in evolving control rooms. Feature: Lock-On provision enables secure engagement, preventing accidental re-energization; Business Impact: enhances functional safety and reduces human error in start-up sequences; Application: automated assembly lines with strict safety protocols. Feature: Wide electrical ratings—225 A, 200 kAIC, 600 Vac / 125 Vdc; Business Impact: supports demanding loads with high fault current tolerance, reducing nuisance trips; Application: power distribution in heavy-industrial equipment. Feature: Compatibility with TCF/FCF fuses (TCF6–TCF30, TCF1RN–TCF30RN, FCF1RN–FCF30RN); Business Impact: lowers spare parts inventory and improves serviceability; Application: replacement programs across multiple panels. Feature: Compact footprint and standard form factor align with existing Bussmann series installations; Business Impact: easier retrofits and faster commissioning; Application: upgrade projects in crowded control cabinets.
Get a Quick Quote for a Eaton CCP2R-3-30CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2R-3-30CF?
Enquire Now
FAQs
The CCP2R-3-30CF is a three-pole disconnect designed for 225 A service with a 200 kAIC fault rating. It fits standard Eaton Bussmann series protection schemes and supports 600 Vac / 125 Vdc. When installing, ensure adequate clearance for finger-safe operation, secure wiring, and proper locking in the 'Off' position during maintenance to minimize arc exposure.
The device provides a 225 A amperage rating, a 200 kAIC short-circuit rating, and a voltage rating of 600 Vac / 125 Vdc. It is a three-pole disconnect with finger-safe features and a Lock-On option, enabling safe isolation of downstream circuits in motor drives and control panels.
Yes. The CCP2R-3-30CF is suitable for fuses in the TCF and FCF families, specifically TCF6 to TCF30 and TCF1RN to TCF30RN, as well as FCF1RN to FCF30RN. This compatibility simplifies stocking and replacement in multi-fuse installations in industrial environments.
The CCP2R-3-30CF carries UL98 fusible disconnect designation and CCC marking per the product data. For additional certifications beyond UL and CCC, contact the manufacturer to confirm current approvals and any region-specific requirements.
By combining a finger-safe design, Lock-On security, and high fault-current protection in a compact form, the CCP2R-3-30CF reduces maintenance downtime, lowers risk during fuse replacement, and supports compliant, reliable panel protection for high-demand automation lines.
