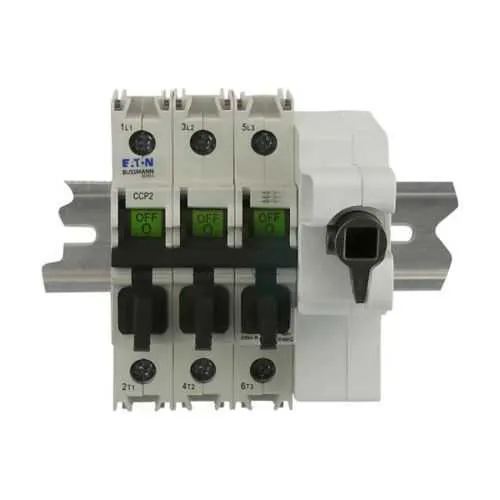

Eaton CCP2R-3-30M Fusible Disconnect - UL98 RoHS
Part Number: CCP2R-3-30M
Quick Summary
The Eaton CCP2R-3-30M is a UL98 fusible disconnect for safe isolation of three-pole circuits. Maintenance teams frequently wrestle with reliable isolation during service while minimizing downtime, and this unit delivers a clear, lockable disconnect to reduce exposure to live parts. UL98 listing, RoHS compliance, and 60 Hz suitability ensure regulatory-ready installations for modern control panels and machinery. As part of the Eaton Bussmann CCP family, it offers a compact footprint and straightforward wiring that streamline panel design, spare parts planning, and serviceability. With a 30A rating and 120 kAIC short-circuit rating, it supports reliable protection for a broad range of industrial loads.
Product Information
Extended Description
CCP2R-3-30M Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 30A, UL98 fusible disconnect, Three-pole, 60 Hz, Supplemental, 120 - CCP2R-3-30M
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2R-3-30M
UPC
051712709774
Product Length/Depth
1.9 in
Product Height
3.7 in
Product Width
0.3 in
Product Weight
1.12 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
30A
Frequency rating
60 Hz
Short-circuit rating
120 kAIC
Fuse type
Supplemental
Number Of Poles
Three-pole
CCP2R-3-30M~3 Pole Comp Ckt Protect 30A
CCP2R-3-30M~3 Pole Comp Ckt Protect 30A
Eaton Specification Sheet - CCP2R-3-30M
Feature → Business Impact → Application: The CCP2R-3-30M is a UL98 fusible disconnect, delivering compliant isolation that minimizes downtime and enhances personnel safety in control panels and machine centers. This translates to lower maintenance risk and faster service turns without sacrificing protection. Application-wise, it suits industrial machinery and packaging lines where safe de-energization during service is critical. Feature → Business Impact → Application: Three-pole, 30A performance at 60 Hz enables reliable switching of three-phase loads, reducing energy waste and ensuring predictable motor and control circuit behavior in manufacturing lines. Design-wise, it simplifies wiring and improves installer throughput in panel fabrication environments. Feature → Business Impact → Application: A 120 kAIC short-circuit rating provides robust fault protection, limiting equipment damage during high-energy faults and improving system resilience in motor drives and feeders. Field technicians gain confidence in fault containment and faster fault isolation. Feature → Business Impact → Application: RoHS compliant materials ensure regulatory alignment across industries and regions, easing procurement audits and avoiding material restrictions in sensitive environments such as food and consumer electronics manufacturing. Feature → Business Impact → Application: Compact dimensions—1.9 in depth, 3.7 in height, 0.3 in width—and a lightweight 1.12 lb form factor simplify installation in tight control panels, enabling higher packing density and modular panel designs for OEMs and panel builders. Feature → Business Impact → Application: Compatibility with the Eaton Bussmann CCP series supports standardization, reducing spare parts inventory and enabling rapid upgrade paths for legacy systems during plant modernization.
Get a Quick Quote for a Eaton CCP2R-3-30M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2R-3-30M?
Enquire Now
FAQs
The CCP2R-3-30M is designed for standard panel mounting with three-pole wiring, suitable for typical control circuits at 60 Hz. Ensure proper clearances per your panel design and follow safe isolation practices during installation. The device provides a compact footprint to maximize panel density while maintaining accessible wiring terminals for reliable terminations.
The unit is rated for 30A at 60 Hz with a short-circuit rating of 120 kAIC. This combination supports reliable protection for medium-load three-phase circuits, enabling safe disconnection during overcurrent events and reducing the risk of collateral damage to downstream equipment in motors and feeders.
Yes. The CCP2R-3-30M is RoHS compliant and marketed as a UL98 fusible disconnect, aligning with common regulatory requirements for electrical protection devices used in commercial and industrial environments. This helps with compliance documentation and reduces risk during audits and product heritage reviews.
This three-pole fusible disconnect is well-suited for control panels, machine control circuits, and protection schemes in manufacturing, packaging, and process industries. Its 30A rating and robust fault protection make it ideal for isolating three-phase loads during maintenance or upgrades while maintaining overall system reliability.
Routine maintenance focuses on verifying electrical connections, inspecting fuse elements (if exposed by design), and ensuring the disconnect actuates cleanly. With a 120 kAIC rating, the device offers strong fault tolerance, but periodic testing and thermal checks help prevent contact wear. Always follow manufacturer guidelines and lockout-tagout procedures during service.
