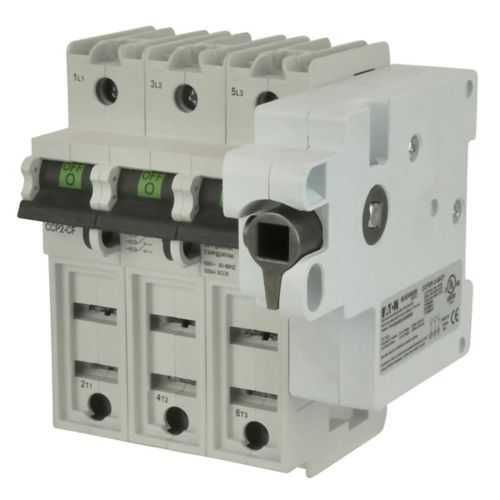

Eaton CCP2R-3-60CF Fusible Disconnect - UL98, 200 kAIC
Part Number: CCP2R-3-60CF
Quick Summary
Eaton CCP2R-3-60CF fusible disconnect is a safe, reliable power isolation solution for industrial control panels and motor circuits. When downtime and miswiring threaten productivity, reliability and safety must come first, and this unit provides quick, finger-safe disconnection with a Lock-On provision for maintenance. The design is UL98-based and RoHS compliant, with CCC Marked status for international applications, helping you meet diverse regulations. Its three-pole construction and high fault-current rating offer robust protection in demanding environments. Compatible with Bussmann series fuses and standard control-panel architectures, it streamlines procurement, reduces stocking variety, and supports ongoing compliance across global installations.
Product Information
Extended Description
CCP2R-3-60CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 225A, UL98 fusible disconnect, Three-pole, 200 kA - CCP2R-3-60CF
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2R-3-60CF
UPC
051712709934
Product Length/Depth
2.9 in
Product Height
3.7 in
Product Width
0.3 in
Product Weight
3.7 lb
Warranty
Not Applicable
Compliances
CCC Marked RoHS Compliant
Amperage Rating
225 A
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Number Of Poles
Three-pole
Special features
Finger Safe, Lock-On provision
Suitable for fuses
TCF6 to TCF60 TCF1RN to TCF60RN FCF1RN to FCF60RN
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2R-3-60CF
Finger Safe design and Lock-On provision reduce the risk of accidental contact during servicing and prevent unintended disconnects, leading to lower injury risk and fewer unplanned outages. This translates to measurable safety improvements and reliable maintenance operations in busy production lines. The three-pole construction paired with a 225 A rating and 200 kAIC short-circuit capability protects large loads and minimizes arc flash exposure in motor drives and feeders. Its 600 Vac / 125 Vdc voltage rating enables dual-system protection in mixed equipment environments, reducing the need for separate disconnect devices and simplifying panel design. Compatibility with TCF6–TCF60 and FCF1RN–FCF60RN fuse families streamlines sourcing and inventory management, while a compact footprint supports easier installation in crowded enclosures and control panels. The Finger Safe feature plus Lock-On mechanism address common installation objections about maintenance safety, enabling faster, safer service commitments. CCC Marked and RoHS compliant, the unit supports global regulatory requirements, while its standard Bussmann compatibility helps ensure consistent performance across standardized panel architectures.
Get a Quick Quote for a Eaton CCP2R-3-60CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2R-3-60CF?
Enquire Now
FAQs
CCP2R-3-60CF is compatible with Bussmann fuses in the TCF and FCF families, specifically TCF6 through TCF60 and TCF1RN through TCF60RN, plus FCF1RN through FCF60RN variants. It is a three-pole disconnect intended for standard panel mounting in industrial control installations. Its Finger Safe design and Lock-On provision support safe, secure maintenance with minimal risk during fuse replacement or testing.
The CCP2R-3-60CF is rated for 225 A, with a short-circuit rating of 200 kAIC, and voltage ratings of 600 Vac and 125 Vdc. It is a three-pole device designed for UL98-compliant fuse isolation, suitable for high-energy motor and feeder circuits in demanding industrial environments.
Yes. The device is RoHS compliant and CCC Marked, supporting regulatory requirements across global markets. Its UL98 fusible disconnect designation further aligns with widely accepted safety and performance standards, helping OEMs and integrators meet diverse electrical compliance needs in multinational facilities.
Using CCP2R-3-60CF delivers improved operator safety through Finger Safe design and Lock-On features, reduces unplanned downtime with reliable isolation during maintenance, and simplifies procurement by aligning with common Bussmann fuse families. It also provides robust fault protection (225 A / 200 kAIC) for large motor drives, enabling smaller panel footprints and enhanced system reliability.
Plan for its compact form factor (2.9 in depth, 3.7 in height, 0.3 in width) and weight (3.7 lb) when routing in crowded enclosures. Ensure correct fuse compatibility (TCF/FCF families) and proper alignment with three-pole bus bars. Verify regulatory compliance requirements for your region, and confirm that the Lock-On and Finger Safe features will remain accessible during maintenance.
