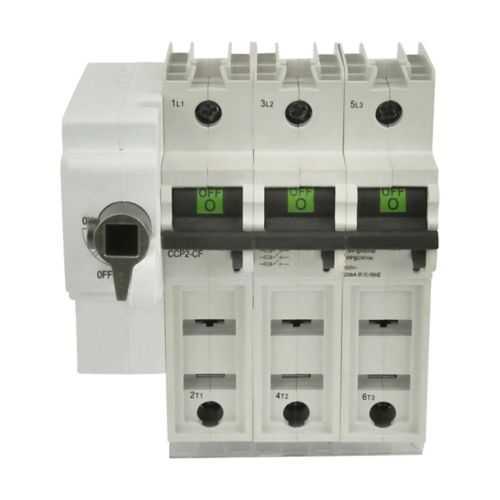

Eaton CCP2RL-2-100CF - UL98 Fusible Disconnect
Part Number: CCP2RL-2-100CF
Quick Summary
Eaton CCP UL98 fusible disconnect provides reliable circuit protection for 600 VAC and 125 VDC industrial systems. In demanding environments, downtime and safety compliance pressures demand a robust, easily serviceable solution that minimizes arc flash risk. The device is UL 98 listed as a fusible disconnect, with potential CE and other market certifications verified by the manufacturer as needed. With a 100 A rating and 200 kAIC short-circuit capacity, it supports reliable protection for control panels and motor drives, reducing maintenance costs. Coupled with Bussmann CCP compatibility and standard enclosure fit, this option improves procurement efficiency and field service readiness for industrial applications.
Product Information
Extended Description
CCP2RL-2-100CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 600 Vac, 125 Vdc, 100A, UL98 fusible disconnect, Two-pole, 60 Hz, CUBEFuse, 200 - CCP2RL-2-100CF
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2RL-2-100CF
UPC
051712710022
Product Length/Depth
3.9 in
Product Height
9.5 in
Product Width
3 in
Product Weight
1.43 lb
Warranty
Not Applicable
Certifications
Contact Manufacturer
Amperage Rating
100A
Frequency rating
60 Hz
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Fuse type
CUBEFuse
Number Of Poles
Two-pole
Suitable for fuses
TCF6 to TCF100 TCF1RN to TCF100RN FCF1RN to FCF100RN
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2RL-2-100CF
Feature: 600 VAC and 125 VDC ratings with a 100 A amperage capacity. Business Impact: Enables safe interruption of power for most industrial control circuits, reducing exposure to live circuits and facilitating compliant shutoffs during maintenance. Application: Control panels, motor drives, and switchgear in process and manufacturing environments. Feature: Two-pole design with CUBEFuse element. Business Impact: Simplifies wiring and fault isolation while providing reliable, fast fuse-based protection. Application: MCCs and motor control where compact, modular protection is required. Feature: Short-circuit rating of 200 kAIC. Business Impact: Higher fault current protection minimizes arc-flash risk and component damage in high-energy systems. Application: Heavy-duty electrical installations with high inrush and fault current potential. Feature: Tight integration with Bussmann CCP family and fuse compatibility. Business Impact: Streamlines spare parts inventory and replacement procedures, reducing downtime during maintenance. Application: Retrofit projects and new builds seeking standardized fuse protection. Feature: Physical footprint and enclosure compatibility (3.9 in depth, 9.5 in height, 3 in width). Business Impact: Fits standard electrical enclosures and panel layouts, saving enclosure redesign costs. Application: Control panels in OEM equipment and industrial cabinets. Feature: Fuse type CUBEFuse and recommended fuse range (TCF6 to TCF100RN, etc.). Business Impact: Flexible protection options for a wide range of load circuits; simplifies sourcing and upgrade paths. Application: Industrial fusing strategies and spare part planning.
Get a Quick Quote for a Eaton CCP2RL-2-100CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2RL-2-100CF?
Enquire Now
FAQs
CCP2RL-2-100CF is a two-pole fusible disconnect designed for standard panel installations. It fits typical enclosure footprints and uses the CUBEFuse configuration to enable straightforward mounting and wiring, reducing installation time and fixturing costs while maintaining safe, code-compliant isolation.
This device is rated for 100A with 600 VAC and 125 VDC, and it delivers a short-circuit rating of up to 200 kAIC. It uses a CUBEFuse element and is intended for 60 Hz systems, providing reliable fault interruption for industrial control circuits.
Yes. The CCP2RL-2-100CF is suitable for fuses in the TCF family (TCF6 to TCF100 and TCF1RN to TCF100RN) and similarly compatible with FCF RN variants, enabling flexible protection strategies and easy part replacement during upgrades or maintenance.
The unit is designed as a UL 98 fusible disconnect. Certifications beyond UL listing are market dependent; Eaton notes Certifications as 'Contact Manufacturer' to confirm local or industry-specific approvals such as CE or CSA for your region.
The CCP2RL-2-100CF provides robust fault isolation, high short-circuit protection, and compatibility with widely used fuse families, which together reduce downtime, improve maintenance efficiency, and support safer, compliant operation of control panels and motor drives in industrial facilities.
