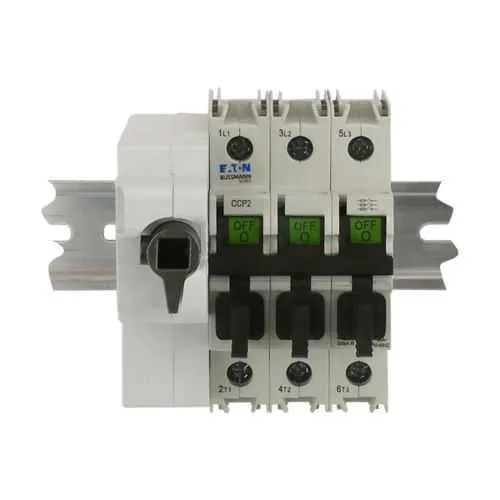

Eaton CCP2RL-2-30CC UL98 Fusible Disconnect for Panels
Part Number: CCP2RL-2-30CC
Quick Summary
Eaton CCP2RL-2-30CC UL98 fusible disconnect provides safe isolation for industrial control panels. This device helps engineers and maintenance teams prevent unintended energization and reduce repair time during routine service. The CCP2RL-2-30CC carries UL98 certification for safe fuse isolation and supports high-voltage and DC applications, with a 600 Vac, 125 Vdc rating and a 200 kAIC short‑circuit capability. Two-pole operation plus Class CC fuses delivers clean, predictable protection in compact form. For panel builders and service technicians, compatibility with LP-CC fuse ranges and Eaton Bussmann protection devices translates into simpler stocking, quicker installations, and reduced total cost of ownership.
Product Information
Extended Description
CCP2RL-2-30CC Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 600 Vac, 125 Vdc, 30A, UL98 fusible disconnect, Two-pole, 60 Hz, Class CC, 200 - CCP2RL-2-30CC
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2RL-2-30CC
UPC
051712709705
Product Length/Depth
1.9 in
Product Height
3.7 in
Product Width
0.3 in
Product Weight
1.18 lb
Warranty
Not Applicable
Certifications
Contact Manufacturer
Amperage Rating
30A
Frequency rating
60 Hz
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Fuse type
Class CC
Number Of Poles
Two-pole
Suitable for fuses
LP-CC-1/2 to LP-CC-30 KTK-R-1/10 to KTK-R-30 FNQ-R-1/4 to FNQ-R-30
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2RL-2-30CC
Feature: UL98 fusible disconnect with two-pole Class CC protection. Business Impact: Safe, validated isolation to minimize shock risk and accidental energization during maintenance. Application: Industrial control panels, motor control centers, and factory automation cabinets.Feature: 600 Vac / 125 Vdc voltage rating. Business Impact: Supports both AC mains and DC control circuits in mixed electrical environments, enabling a single protective device across systems. Application: Control panels powering mixed-signal and motor loads in manufacturing lines.Feature: 200 kAIC short-circuit rating. Business Impact: Higher fault tolerance reduces damage risk during short-circuit events, lowering downstream repair costs. Application: High‑fault environments and equipment with potential high inrush or surge conditions.Feature: 30A amperage rating. Business Impact: Aligns with typical control-circuit feeders and branch protections, enabling precise protection without oversizing. Application: Panel feeders and protected circuits in automated equipment.Feature: Compact dimensions (1.9 in depth, 3.7 in height, 0.3 in width) and 1.18 lb weight. Business Impact: Easier panel mounting and retrofit in space-constrained enclosures, reducing design complexity and weight considerations. Application: Architectural control panels, compact MCCs, and retrofit projects.Feature: Compatibility with LP-CC fuses. Business Impact: Simplifies procurement and maintenance planning, ensuring a consistent protection strategy. Application: OEM assemblies and service fleets using Bussmann CC-class fuse ranges.
Get a Quick Quote for a Eaton CCP2RL-2-30CC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2RL-2-30CC?
Enquire Now
FAQs
To install CCP2RL-2-30CC, first power down the panel and verify the system voltage rating matches the device: 600 Vac / 125 Vdc. Mount the unit in a suitable enclosure, connect it to the two-pole circuit it protects, and ensure the LP-CC fuse range is compatible (LP-CC-1/2 to LP-CC-30). Tighten lugs per manufacturer torque specs and perform a functional check with power isolated.
The CCP2RL-2-30CC is rated for 30A continuous current, operates at 60 Hz, and accepts 600 Vac or 125 Vdc. It provides a short-circuit rating of 200 kAIC, which ensures robust fault protection for demanding industrial environments and helps minimize damage during fault conditions.
Yes. With a 125 Vdc rating and UL98 fusible disconnect construction, CCP2RL-2-30CC supports DC control circuits in automation panels. When using DC, verify fuse compatibility with LP-CC-DC equivalents if required and ensure enclosure ventilation and mounting orientation meet local electrical standards.
The CCP2RL-2-30CC carries UL98 fusible disconnect certification as a primary safety standard. For additional certifications (such as CE or IP ratings), consult the manufacturer or Eaton documentation. Always ensure the product you source includes the latest certification status for your geographic and regulatory requirements.
The device minimizes downtime by providing rapid, safe isolation during maintenance and fuse replacement, reducing exposure risk and repair time. Its compatibility with standard LP-CC fuses simplifies spares management, lowers stocking costs, and streamlines panel retrofits, delivering predictable maintenance costs and improved total cost of ownership.
