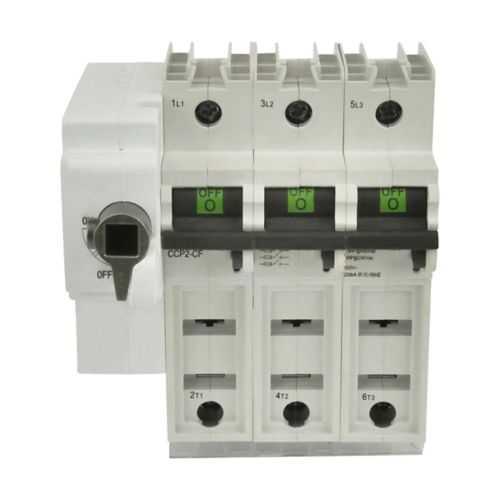

Eaton CCP2RL-2-30CF Fusible Disconnect UL98
Part Number: CCP2RL-2-30CF
Quick Summary
Eaton CCP2RL-2-30CF is a UL98 fusible disconnect designed for safe power isolation in industrial control panels. When outages or maintenance cycles threaten productivity, a dependable disconnect with finger-safe design and a lock-on provision minimizes risk and speeds servicing. This device offers CCC Marked compliance and UL98 protection, ensuring regulatory alignment across regional panels, and its two-pole, 225 A rating delivers solid protection for motor drives and distribution circuits. With a 600 Vac / 125 Vdc rating and a 200 kAIC short-circuit capability, it supports high-demand applications while maintaining compact panel footprint. The CCP2RL-2-30CF pairs well with TCF and RN fuse families, delivering reliable electrical protection and ease of installation.
Product Information
Extended Description
CCP2RL-2-30CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 225A, UL98 fusible disconnect, Two-pole, 200 kA - CCP2RL-2-30CF
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2RL-2-30CF
UPC
051712709866
Product Length/Depth
2.9 in
Product Height
3.7 in
Product Width
0.3 in
Product Weight
3.7 lb
Warranty
Not Applicable
Compliances
CCC Marked
Certifications
Contact Manufacturer
Amperage Rating
225 A
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Number Of Poles
Two-pole
Special features
Finger Safe, Lock-On provision
Suitable for fuses
TCF6 to TCF30 TCF1RN to TCF30RN FCF1RN to FCF30RN
CCP2RL-2-30CF~CCP2 2P 30A CF W/ ROTARY HandM LEFT
CCP2RL-2-30CF~CCP2 2P 30A CF W/ ROTARY HandM LEFT
Eaton Specification Sheet - CCP2RL-2-30CF
Feature → Business Impact → Application: UL98 fusible disconnect design delivers industry-standard power isolation for machine safety and service continuity, reducing downtime and improving fault response times in industrial environments. This two-pole unit, rated at 225 A and 200 kAIC, supports high-load circuits such as motor drives and feeders, enabling robust protection without oversized hardware. Finger-safe construction minimizes human injury risk during maintenance, while the lock-on provision prevents accidental energization, improving worksite safety and regulatory compliance in control panels. With a 600 Vac / 125 Vdc rating, installations across mixed electro-mechanical systems stay within design envelopes, lowering the likelihood of overvoltage events and simplifying buy-in for engineering teams. The compact footprint (2.9 in L x 3.7 in H x 0.3 in W) and weight of 3.7 lb streamline panel layout and serviceability, making onboarding and retrofits faster. Compatible with TCF6 to TCF30 and RN/FCF fuse families, it reduces procurement complexity and accelerates project timelines. This combination of safety, reliability, and installability supports measurable efficiency gains, predictable maintenance windows, and compliant electrical protection in modern automation architectures.
Get a Quick Quote for a Eaton CCP2RL-2-30CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2RL-2-30CF?
Enquire Now
FAQs
The CCP2RL-2-30CF is suitable for TCF family fuses (TCF6 to TCF30, including RN variants) and FCF variants (FCF1RN to FCF30RN). This broad compatibility simplifies panel design, stocking, and replacement cycles while ensuring consistent protective performance across common industrial circuits.
This unit provides a 225 A amperage rating, a 200 kAIC short-circuit rating, and a voltage rating of 600 Vac / 125 Vdc. These specs enable safe interruption of high-energy faults in demanding applications such as motor drives and distributed power circuits.
Yes. The CCP2RL-2-30CF features finger-safe hardware to reduce the risk of contact with live parts and a lock-on provision to prevent accidental re-energization during maintenance, enhancing personal safety and regulatory compliance in busy panels.
The device measures 2.9 inches in length, 3.7 inches in height, and 0.3 inches in width, with a shipping weight of 3.7 pounds. The compact footprint supports tight panel layouts and simplifies retrofit projects without sacrificing protection or accessibility.
The CCP2RL-2-30CF is CCC Marked and designed for UL98 fusible disconnect standards. For additional certifications beyond these markings, consult the manufacturer to confirm current approvals and any region-specific requirements that may apply to your installation.
