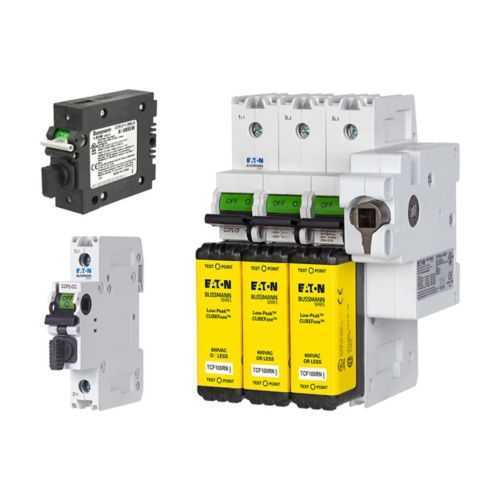

Eaton CCP2RL-3-100CF Fusible Disconnect - UL98
Part Number: CCP2RL-3-100CF
Quick Summary
Eaton CCP2RL-3-100CF is a UL98 fusible disconnect engineered for reliable three-pole protection in industrial control panels. This solution addresses downtime and maintenance risk by offering a compact, easily replaceable protection device designed for fast isolation. Key certifications include UL98 listing for safe disconnects, RoHS compliance for material controls, and 600 Vac / 125 Vdc ratings that align with modern safety and electrical standards. This model also supports broad fuse compatibility and standard mounting interfaces, delivering practical value beyond protection—reducing downtime, enabling safer servicing, and supporting compliant panel builds for automated machinery and process lines.
Product Information
Extended Description
CCP2RL-3-100CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 600 Vac, 125 Vdc, 100A, UL98 fusible disconnect, Three-pole, 60 Hz, CUBEFuse, 200 - CCP2RL-3-100CF
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2RL-3-100CF
UPC
051712710039
Product Length/Depth
3.9 in
Product Height
9.5 in
Product Width
3 in
Product Weight
1.95 lb
Warranty
Not Applicable
Compliances
RoHS Compliant Not Applicable
Amperage Rating
100A
Frequency rating
60 Hz
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Fuse type
CUBEFuse
Number Of Poles
Three-pole
Suitable for fuses
TCF6 to TCF100 TCF1RN to TCF100RN FCF1RN to FCF100RN
CCP2RL-3-100CF~3 Pole Comp Ckt Protect 100A
CCP2RL-3-100CF~3 Pole Comp Ckt Protect 100A
Eaton Specification Sheet - CCP2RL-3-100CF
Feature is a three-pole CCP UL98 fusible disconnect with a 100 A amperage rating and a 600 Vac / 125 Vdc voltage rating. Business Impact is reliable circuit isolation with a high short-circuit withstand rating (200 kAIC) that minimizes arc energy and protects downstream equipment, decreasing unplanned downtime. Application is ideal for machine control panels, process lines, and industrial drives where fast, safe disconnection is required. Feature shows CUBEFuse as the fuse type, enabling easy fuse replacement and consistent protection. Business Impact is streamlined maintenance and reduced spare-part complexity, thanks to standardized fuse compatibility with TC F6 to TCF100RN and FCF series. Application spans TC F6 to TCF100RN and FCF1RN to FCF100RN fuse families, improving configuration flexibility and overall system reliability. Feature notes the product dimensions (3.9 in depth, 9.5 in height, 3 in width) and weight (1.95 lb), enabling precise panel footprint planning and safer, tool-friendly installations. Business Impact is faster installation and fewer field errors, with a robust three-pole footprint that supports rugged industrial environments. Application includes control cabinets, machine centers, and packaging lines where modular protection simplifies retrofits and expansion.
Get a Quick Quote for a Eaton CCP2RL-3-100CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2RL-3-100CF?
Enquire Now
FAQs
The CCP2RL-3-100CF is designed for broad fuse compatibility, including TC F6 to TCF100RN and FCF1RN to FCF100RN families. Its three-pole format and standard DIN-rail or side-mounting interfaces simplify panel integration, reduce installation time, and support straightforward retrofits in existing control panels without major rework.
The unit provides 100 A continuous amperage, 60 Hz operation, and a short-circuit rating of 200 kAIC. It is rated for 600 Vac and 125 Vdc, delivering reliable protection for both AC and DC circuits in industrial environments and helping to limit fault currents effectively.
Yes, this CCP model supports RoHS compliance, ensuring restricted use of hazardous substances in the product. This helps facilities meet environmental and procurement requirements, simplifies supplier qualification, and supports regulatory compliance without sacrificing performance or protection capabilities.
Consider the footprint: 3.9 in deep, 9.5 in high, and 3 in wide, with a weight of approximately 1.95 lb. Plan for three-pole wiring, use CUBEFuse-compatible fuses, and ensure adequate clearance for safe disconnection. Verify panel cutouts and mounting hardware suitability to maintain proper fault isolation and maintain safety clearances.
By offering fast, reliable isolation with standardized fuse interfaces and a compact footprint, the CCP2RL-3-100CF reduces maintenance time and spare-parts complexity. Its high short-circuit rating minimizes arc energy, lowering servicing risk, while RoHS compliance and universal fuse compatibility help streamline procurement and reduce total cost of ownership in automated lines.
