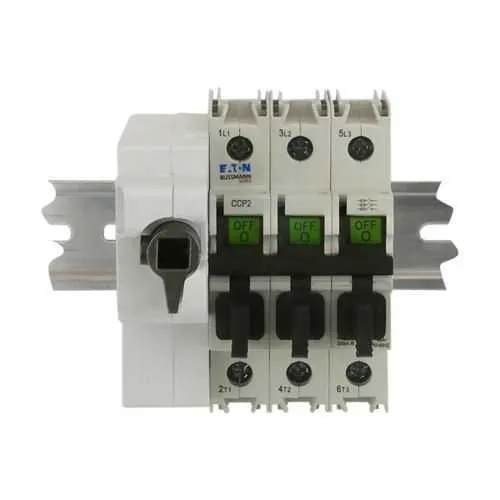

Eaton CCP2RL-3-30CC Fusible Disconnect - UL98 Class CC
Part Number: CCP2RL-3-30CC
Quick Summary
The CCP2RL-3-30CC is a UL98 fusible disconnect for reliable three-pole isolation in industrial panels. Engineers often wrestle with finding a compact, high-current disconnect that won’t compromise fault-current performance or maintenance safety. This model aligns with UL 98 for fusible disconnects, and regional certifications such as CE and IP ratings should be confirmed with Eaton based on your location. By integrating seamlessly with common fuse families and panel designs, it delivers strong reliability while reducing footprint. In practice, you gain improved safety margins, easier serviceability, and a clearer isolation point within control architectures, supporting efficient maintenance programs and smoother compliance workflows.
Product Information
Extended Description
CCP2RL-3-30CC Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 600 Vac, 125 Vdc, 30A, UL98 fusible disconnect, Three-pole, 60 Hz, Class CC, 200 - CCP2RL-3-30CC
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2RL-3-30CC
UPC
051712709712
Product Length/Depth
1.9 in
Product Height
3.7 in
Product Width
0.3 in
Product Weight
1.12 lb
Warranty
Not Applicable
Certifications
Contact Manufacturer
Amperage Rating
30A
Frequency rating
60 Hz
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Fuse type
Class CC
Number Of Poles
Three-pole
Suitable for fuses
LP-CC-1/2 to LP-CC-30 KTK-R-1/10 to KTK-R-30 FNQ-R-1/4 to FNQ-R-30
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2RL-3-30CC
Feature → Business Impact → Application: The CCP2RL-3-30CC provides a UL98 fusible disconnect with 600 Vac and 125 Vdc ratings and a 30 A current capacity, delivering reliable, code-compliant isolation for critical equipment. This translates to enhanced fault protection and safer maintenance routines in control panels and MCCs. Application: suited for industrial automation panels requiring compact, high-current, three-pole isolation. Feature → Business Impact → Application: Its three-pole design ensures complete three-phase disconnect, reducing arc flash risk and simplifying lockout-tagout practices in motor control centers and robotic assembly lines. Application: ideal for 600 Vac motor drives and power distribution blocks that demand precise phase removal. Feature → Business Impact → Application: Class CC fuse compatibility and a short-circuit rating of 200 kAIC support fast, selective protection, lowering downtime and improving coordination with upstream protection. Application: critical in systems with high fault currents. Feature → Business Impact → Application: A compact footprint (1.9 in depth, 3.7 in height, 0.3 in width) and a 1.12 lb weight help maximize panel density and ease installation. Application: panel builders seeking space efficiency in tight control enclosures. Feature → Business Impact → Application: Manufacturer-backed compatibility with LP-CC, KTK-R, and FNQ-R fuse families provides flexibility during upgrade projects and reduces redesign risk. Application: retrofits or new builds where fuse interoperability matters.
Get a Quick Quote for a Eaton CCP2RL-3-30CC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2RL-3-30CC?
Enquire Now
FAQs
When mounting the CCP2RL-3-30CC, ensure a dedicated panel cutout and secure mounting to maintain clearances for three-pole isolation. Wire the line and load connections per the 600 Vac/125 Vdc rating and verify compatibility with LP-CC, KTK-R, or FNQ-R fuse families. Leave space for venting and maintain adequate heat dissipation to sustain 30 A under load.
Key ratings include 30 A amperage, 60 Hz frequency, voltage rating of 600 Vac and 125 Vdc, and a short-circuit rating of 200 kAIC. The unit uses a Class CC fuse and is a three-pole disconnect designed for reliable three-phase isolation in industrial panels.
Yes. The three-pole design provides full three-phase isolation, and the 30 A rating suits smaller to medium motors when coordinated with the appropriate fuses. The 200 kAIC short-circuit rating supports higher fault currents, but ensure fuse selection and protection coordination align with motor and drive specifications.
The CCP2RL-3-30CC is specified as a UL98 fusible disconnect; certification details beyond UL should be confirmed with Eaton for your region. Verify listings and any regional marks (such as CE or IP ratings) directly with the manufacturer or through the latest datasheet to ensure compliance for your installation locale.
The unit offers reliable, code-compliant isolation with a compact footprint that saves panel space and reduces wiring complexity. Its high short-circuit rating improves protection coordination, potentially lowering downtime and maintenance costs. Long-term ROI comes from safer maintenance, faster serviceability, and reduced risk of nuisance fuse blows in high-current applications.
