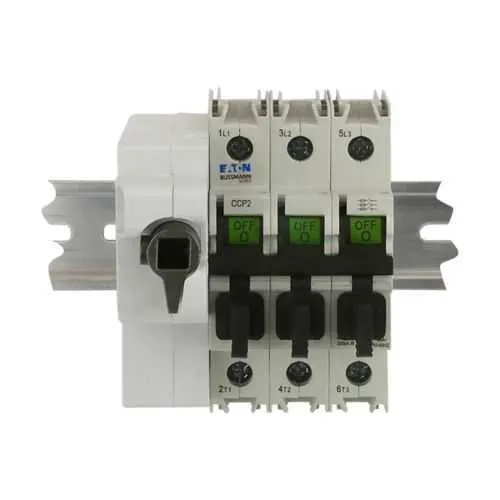

Eaton CCP2RL-3-30M Fusible Disconnect - UL98 120kAIC
Part Number: CCP2RL-3-30M
Quick Summary
CCP2RL-3-30M is a UL98 fusible disconnect that safely isolates power in electrical protection gear. Panel builds and maintenance teams often struggle with downtime and fuse handling; this unit simplifies safe isolation. It delivers a 120 kAIC short-circuit rating with a three-pole, 60 Hz operation, aligning with industry reliability expectations. In addition to UL98 compliance, it integrates with Eaton Bussmann catalog offerings and supports fast installation in control cabinets. Its compact footprint and lightweight design help reduce panel depth while delivering dependable performance for industrial automation and electrical protection applications.
Product Information
Extended Description
CCP2RL-3-30M Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 30A, UL98 fusible disconnect, Three-pole, 60 Hz, Supplemental, 120 - CCP2RL-3-30M
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2RL-3-30M
UPC
051712709798
Product Length/Depth
1.9 in
Product Height
3.7 in
Product Width
0.3 in
Product Weight
1.12 lb
Warranty
Not Applicable
Certifications
Contact Manufacturer
Amperage Rating
30A
Frequency rating
60 Hz
Short-circuit rating
120 kAIC
Fuse type
Supplemental
Number Of Poles
Three-pole
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2RL-3-30M
Feature: UL98 fusible disconnect with 30A rating and three-pole design; Business Impact: enables safe, code-compliant isolation of electrical circuits while handling typical industrial loads; Application: suitable for control panels, motor starters, and distribution enclosures. Feature: 120 kAIC short-circuit rating; Business Impact: withstands high fault currents, reducing downstream damage and downtime; Application: service entrances and heavy-duty panels in manufacturing lines. Feature: compact footprint (1.9 in L x 3.7 in H x 0.3 in W) and weight (1.12 lb); Business Impact: minimizes panel depth and heat load, simplifying installation and cooling management; Application: tight-control cabinets and equipment racks. Feature: Supplemental fuse type; Business Impact: targeted fault clearing with predictable tripping behavior, improving maintenance planning; Application: protection schemes in industrial automation. Feature: seamless compatibility with Bussmann series catalogs and Eaton support; Business Impact: simplifies procurement, stocking, and lifecycle management; Application: OEM panels, retrofit projects, and service upgrades. Note: warranty is listed as Not Applicable; consult manufacturer for regional certifications and approvals as needed.
Get a Quick Quote for a Eaton CCP2RL-3-30M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2RL-3-30M?
Enquire Now
FAQs
Plan for its three-pole configuration and compact footprint (1.9 in L, 3.7 in H, 0.3 in W). Ensure adequate clearance for safe access to terminals, proper mounting in compatible enclosures, and adherence to electrical protection codes. The unit’s weight of 1.12 lb helps minimize support requirements in tight panels.
It provides a 30A amperage rating, operates at 60 Hz, and features a 120 kAIC short-circuit rating. The fuse type is Supplemental, and the product is designed as a three-pole disconnection device for reliable circuit isolation.
Yes. CCP2RL-3-30M is part of the Bussmann series ecosystem and is designed for straightforward integration with Bussmann catalog components, simplifying procurement, stocking, and lifecycle support in OEM and retrofit projects.
The product is specified under UL98 with certification status listed as Contact Manufacturer for specific confirmations. For additional regional approvals such as CE or IP ratings, consult Eaton to verify applicability and availability in your region.
The unit’s high short-circuit rating and clear, predictable fault-clearing behavior help reduce unexpected outages. Its compact footprint eases panel design constraints, speeds installation, and simplifies spare part management, contributing to lower maintenance costs and faster service turnaround.
