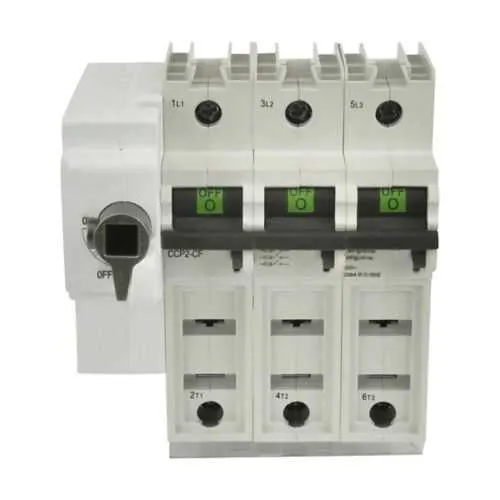

Eaton CCP2RL-3-60CF Fusible Disconnect - UL98
Part Number: CCP2RL-3-60CF
Quick Summary
Eaton CCP2RL-3-60CF is a UL98 fusible disconnect used to isolate power circuits in industrial panels. In demanding environments, unplanned outages and difficult maintenance slow production and increase safety risk. This three-pole disconnect offers finger-safe operation and a lock-on provision, reducing manual exposure and accidental disconnects. The unit is UL98 listed and CCC Marked, with detailed certification data available from the manufacturer, and it supports Bussmann fuses for reliable protection. By design, it integrates smoothly with standard control cabinets and motor control centers, helping you meet electrical protection standards while simplifying procurement and installation. For engineers seeking robust performance, it provides compatibility with TCF and FCF fuse families, delivering measurable uptime and cost efficiency.
Product Information
Extended Description
CCP2RL-3-60CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 225A, UL98 fusible disconnect, Three-pole, 200 kA - CCP2RL-3-60CF
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2RL-3-60CF
UPC
051712709958
Product Length/Depth
2.9 in
Product Height
3.7 in
Product Width
0.3 in
Product Weight
3.7 lb
Warranty
Not Applicable
Compliances
CCC Marked
Certifications
Contact Manufacturer
Amperage Rating
225 A
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Number Of Poles
Three-pole
Special features
Finger Safe, Lock-On provision
Suitable for fuses
TCF6 to TCF60 TCF1RN to TCF60RN FCF1RN to FCF60RN
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2RL-3-60CF
UL98 fusible disconnect delivers robust, code-compliant power isolation with a compact footprint, enabling safe maintenance and quick fault clearance in industrial panels. The finger-safe design reduces arc-flash exposure during live-line work, while the built-in lock-on provision prevents accidental reopenings, improving operator safety and uptime. With a 225 A rating and a 200 kAIC short-circuit capability, it supports high-duty motor circuits and switchgear reliability, lowering replacement costs and unplanned downtime. The 600 Vac / 125 Vdc voltage range covers diverse plant applications, and three-pole construction ensures true three-phase protection. Compatibility with the TCF and FCF fuse families simplifies spares management and procurement, reducing stocking complexity. The device’s CCC Marking and UL98 listing reinforce regulatory compliance, while its compact dimensions and light weight ease installation in crowded panels and retrofit projects. Overall, CCP2RL-3-60CF combines safety, performance, and ease of use to drive lower total cost of ownership in industrial environments.
Get a Quick Quote for a Eaton CCP2RL-3-60CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2RL-3-60CF?
Enquire Now
FAQs
Install CCP2RL-3-60CF by mounting in a three-pole enclosure that supports Bussmann CCP sizing. Connect the three-phase conductors to the rated terminals, ensure the finger-safe cover remains in place, and engage the lock-on provision to prevent unintended operation. Confirm fuse compatibility with TCF6–TCF60 and FCF series to maintain proper protection and replacement ease.
The device is rated for 225 A, with a short-circuit rating of 200 kAIC and voltage ratings of 600 Vac / 125 Vdc. It is a three-pole disconnect designed to isolate all three phases under full-load conditions. For protection levels, use with compatible TCF/FCF fuse families to ensure reliable protection and serviceability.
Yes for standard indoor industrial panels requiring a compact, finger-safe three-pole disconnect. The unit is UL98 listed and CCC Marked, supporting regulatory compliance in many regions. No IP rating is specified, so for washdown or harsh ingress environments, ensure enclosure protection is adequate and consider additional enclosure sealing as needed.
The device is UL98 listed and CCC Marked, with certification details available from the manufacturer. It also indicates compatibility with Bussmann fuse families (TCF/FCF). For any regulatory requirements beyond UL98 and CCC, contact Eaton to obtain the latest certificates and test reports.
The finger-safe design and lock-on feature reduce maintenance risk and unintended shutdowns, boosting uptime. Three-pole construction simplifies wiring and testing, while compatibility with common fuse families minimizes spare parts inventory. Collectively, these factors translate to faster service, safer operations, and lower long-term maintenance costs.
