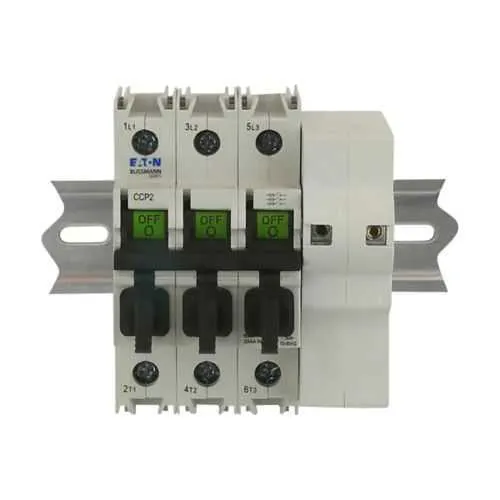

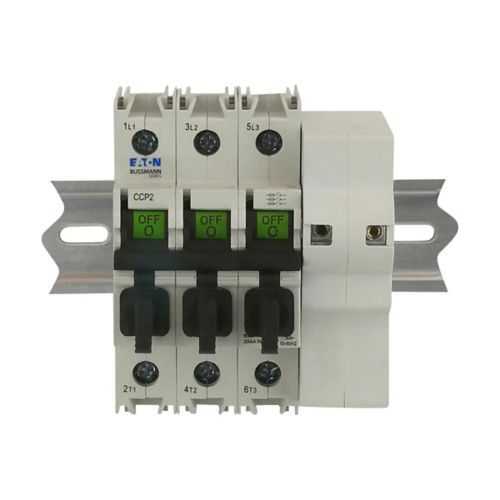

Eaton CCP2S-2-30CC Fusible Disconnect - UL98 Class CC
Part Number: CCP2S-2-30CC
Quick Summary
The Eaton CCP2S-2-30CC is a UL98 fusible disconnect for protecting and isolating electrical circuits in industrial automation. Engineers often face challenges securing safe maintenance, arc energy control, and rapid restoration in demanding environments. This device carries UL98 listing with design support for 600 Vac and 125 Vdc operation in a two‑pole Class CC fuse configuration, with regional CE and IP certifications to be confirmed with the manufacturer. By aligning with Bussmann protection standards, it offers reliable circuit protection, straightforward panel integration, and a clear path to regulatory compliance while minimizing downtime and inventory complexity for industrial protection programs.
Product Information
Extended Description
CCP2S-2-30CC Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 600 Vac, 125 Vdc, 30A, UL98 fusible disconnect, Two-pole, 60 Hz, Class CC, 200 - CCP2S-2-30CC
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2S-2-30CC
UPC
051712709729
Product Length/Depth
1.9 in
Product Height
3.7 in
Product Width
0.3 in
Product Weight
1.12 lb
Warranty
Not Applicable
Certifications
Contact Manufacturer
Amperage Rating
30A
Frequency rating
60 Hz
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Fuse type
Class CC
Number Of Poles
Two-pole
Suitable for fuses
LP-CC-1/2 to LP-CC-30 KTK-R-1/10 to KTK-R-30 FNQ-R-1/4 to FNQ-R-30
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2S-2-30CC
Feature: UL98 fusible disconnect delivers rapid isolation of power circuits, reducing arc exposure and enabling safe servicing. Business Impact: Improves worker safety, speeds maintenance, and lowers risk of collateral damage. Application: Motor drives and control circuits in machine tools and packaging lines. Feature: 30A, 60 Hz rating with 200 kAIC short-circuit capability supports heavy-duty industrial loads while maintaining selectivity. Business Impact: Higher fault tolerance and reduced conductor stress, translating to longer component life and lower replacement costs. Application: Main and branch protection in panelboards. Feature: 600 Vac / 125 Vdc voltage rating provides flexible cross-domain performance. Business Impact: Simplifies procurement for mixed power environments and reduces part proliferation. Application: AC mains to DC control conversions in automated equipment. Feature: Two-pole Class CC fuse compatibility standardizes replacement and streamline spares. Business Impact: Easier maintenance planning, lower downtime, and consistent protection behavior. Application: Retrofit projects and new installations in control enclosures. Feature: Compact footprint (1.9 in L / 3.7 in H / 0.3 in W) and light 1.12 lb weight improve panel density and ease installation. Business Impact: Saves enclosure space, enables denser control architectures, and reduces installation time. Application: Tight electrical cabinets and equipment racks. Feature: Compatibility with LP-CC-1/2 to LP-CC-30, KTK-R-1/10 to KTK-R-30, FNQ-R-1/4 to FNQ-R-30 fuses simplifies sourcing. Business Impact: Streamlines procurement, improves cross-line maintenance, and supports scalable protection strategies. Application: Upgrade paths for existing Bussmann series installations.
Get a Quick Quote for a Eaton CCP2S-2-30CC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2S-2-30CC?
Enquire Now
FAQs
Install the CCP2S-2-30CC in a suitable two-pole section of the control panel, ensuring proper alignment with LP-CC or KTK-R fuse holders. Verify busbar connections, torque settings, and fuse accessibility for safe disconnection. Confirm panel labeling and safety interlocks before energizing the circuit.
The CCP2S-2-30CC provides a 30A rating at 60 Hz, with a short-circuit rating of 200 kAIC. It supports 600 Vac and 125 Vdc operation, and uses a two-pole Class CC fuse configuration to deliver reliable protection in industrial power circuits.
Yes. The CCP2S-2-30CC is suitable for fuses in the LP-CC-1/2 to LP-CC-30, KTK-R-1/10 to KTK-R-30 ranges, and FNQ-R-1/4 to FNQ-R-30, enabling easy retrofit and consistent protection across Bussmann series installations.
CCP2S-2-30CC is UL98 listed; CE and IP certifications vary by region and should be confirmed with Eaton. For regulatory compliance, consult the manufacturer’s documentation and regional approvals to ensure alignment with local electrical codes.
The disconnect measures 1.9 in in length, 3.7 in in height, and 0.3 in in width, with a weight of 1.12 lb. These compact dimensions support tight panel layouts and straightforward mounting in standard control enclosures.
