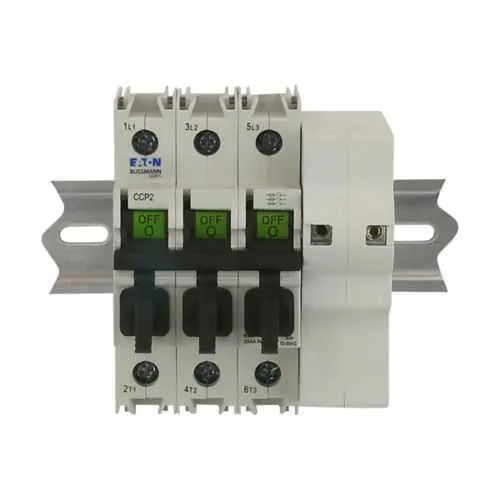

Eaton CCP2S-2-30M UL98 Fusible Disconnect - 120 kAIC
Part Number: CCP2S-2-30M
Quick Summary
The Eaton CCP UL98 fusible disconnect protects electrical circuits in industrial panels, delivering reliable overcurrent protection. Engineers often confront fuse coordination challenges and downtime during maintenance, which this two-pole 30A device helps mitigate by providing clear isolation and quick replacement. It aligns with UL98 fusible disconnect standards and offers a 120 kAIC short‑circuit rating at 60 Hz, supporting robust panel protection. With compact mounting and straightforward wiring, the CCP2S-2-30M reduces install time while improving reliability and serviceability for industrial protection applications.
Product Information
Extended Description
CCP2S-2-30M Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 30A, UL98 fusible disconnect, Two-pole, 60 Hz, Supplemental, 120 - CCP2S-2-30M
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2S-2-30M
UPC
051712709804
Product Length/Depth
1.9 in
Product Height
3.7 in
Product Width
0.3 in
Product Weight
1.12 lb
Warranty
Not Applicable
Certifications
Contact Manufacturer
Amperage Rating
30A
Frequency rating
60 Hz
Short-circuit rating
120 kAIC
Fuse type
Supplemental
Number Of Poles
Two-pole
CCP2S-2-30M~2 Pole Comp Ckt Protect 30A
CCP2S-2-30M~2 Pole Comp Ckt Protect 30A
Eaton Specification Sheet - CCP2S-2-30M
Feature → Business Impact → Application: The CCP2S-2-30M’s two-pole, 30A UL98 fusible disconnect provides clear isolation and rapid fault clearance, reducing downtime during maintenance and lowering arc-flash exposure for technicians in manufacturing cells and machine lines. Application: motor feeders and control circuits in compact panels benefit from safer servicing and predictable protection. Feature → Business Impact → Application: A 120 kAIC short-circuit rating increases system resilience by withstanding high fault currents without cascading failures, enabling safer upstream coordination and reduced risk of upstream device damage. Application: data centers, conveyors, and processing lines with high inrush or fault potential benefit from enhanced protection margins. Feature → Business Impact → Application: 60 Hz compatibility and Bussmann series design ensure reliable operation in standard industrial power networks, enabling straightforward integration with existing 60 Hz distribution. Application: general-purpose industrial controls and protection schemes. Feature → Business Impact → Application: compact dimensions (1.9 in depth, 3.7 in height, 0.3 in width) and light weight (1.12 lb) simplify panel layout and retrofit projects, reducing enclosure fill and facilitating quick turnkey protection upgrades. Application: panel modernization in limited-space retrofit scenarios. Feature → Business Impact → Application: Supplemental fuse type supports coordinated protection strategies, enabling selective protection and easier fuse replacement during routine maintenance. Application: small to mid-size machines, conveyors, and process lines needing dependable override capability.
Get a Quick Quote for a Eaton CCP2S-2-30M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2S-2-30M?
Enquire Now
FAQs
CCP2S-2-30M is a two-pole, 30A UL98 fusible disconnect designed for integration into standard industrial panels. Its compact footprint (1.9 in depth, 3.7 in height, 0.3 in width) and two-pole configuration simplify mounting and wiring, enabling safer isolation during maintenance and straightforward compatibility with typical Bussmann-series protection schemes.
The CCP2S-2-30M delivers 30A amperage, operates at 60 Hz, and offers a short-circuit rating of 120 kAIC. These ratings support reliable protection for motor feeders and control circuits, while ensuring upstream devices are protected from high fault currents and enabling predictable coordination in panel layouts.
CCP2S-2-30M is specified as a UL98 fusible disconnect in its product family, emphasizing compliance with UL98 protection standards. Certifications beyond UL98 are listed as 'Contact Manufacturer' in the data, so for formal certificates, consult Eaton’s documentation or request the latest certification package to confirm current attestations for your region and application.
The unit’s compact dimensions and light weight simplify retrofits in tight spaces, enabling quicker removal of legacy disconnects and easier wiring upgrades. Its two-pole design supports straightforward installation, better clearance in crowded panels, and improved fault isolation, reducing downtime during upgrades and allowing technicians to perform safe maintenance more efficiently.
Ideal for protecting feeders and control circuits in manufacturing, packaging, and processing facilities, the CCP2S-2-30M suits compact control panels and motor-protection schemes that require reliable 30A protection at 60 Hz. Its 120 kAIC rating ensures resilience in environments with potential high fault currents, supporting safer startup and shutdown sequences.
