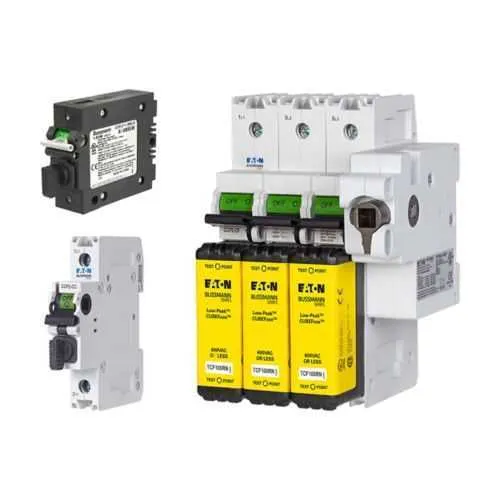

Eaton CCP2S-2-60CF Fusible Disconnect - UL98
Part Number: CCP2S-2-60CF
Quick Summary
The Eaton CCP2S-2-60CF is a UL98 fusible disconnect that safely isolates three‑phase power for industrial machinery. Engineers often struggle with safe maintenance during panel servicing, where finger-safe access and secure locking reduce risk and downtime. Compliance highlights include UL 98 fusible disconnects, CCC Marked listings for global markets, and a finger-safe design with a Lock-On provision to ensure secure operation in demanding environments. In practice, this unit supports 225 A at 600 Vac (125 Vdc) with a 200 kAIC rating, making it a robust choice for electrical protection and circuit control in manufacturing lines. Its compatibility with TCF and FCF fuse families simplifies procurement and reduces spares while delivering fast, safe disconnections.
Product Information
Extended Description
CCP2S-2-60CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 225A, UL98 fusible disconnect, Three-pole, 200 kA - CCP2S-2-60CF
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2S-2-60CF
UPC
051712709965
Product Length/Depth
2.9 in
Product Height
3.7 in
Product Width
0.3 in
Product Weight
3.7 lb
Warranty
Not Applicable
Compliances
CCC Marked
Amperage Rating
225 A
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Number Of Poles
Three-pole
Special features
Finger Safe, Lock-On provision
Suitable for fuses
TCF6 to TCF60 TCF1RN to TCF60RN FCF1RN to FCF60RN
CCP2S-2-60CF~CCP2 2P 60A CF W/ SIDE HandM RIGHT
CCP2S-2-60CF~CCP2 2P 60A CF W/ SIDE HandM RIGHT
Eaton Specification Sheet - CCP2S-2-60CF
Feature → Business Impact → Application: Finger Safe design improves operator safety by reducing hand injuries during fuse replacement and servicing, lowering risk assessments and downtime in panel maintenance. This translates to tangible cost savings and safer operations in industrial environments where frequent disconnects are required for preventive maintenance. Feature → Business Impact → Application: Lock-On provision ensures a secure, vibration‑free connection during testing and normal operation, minimizing nuisance trips and misalignment in rugged factory settings. Use this in motor control centers and production lines that demand reliable, lockable isolation during servicing. Feature → Business Impact → Application: 600 Vac and 125 Vdc electrical ratings with a 225 A capacity support high‑power loads from motors and drives, enabling safe isolation of large equipment while maintaining uptime in manufacturing facilities. Feature → Business Impact → Application: 200 kAIC short‑circuit rating provides fault tolerance in high‑fault environments, reducing the likelihood of catastrophic failures and enabling safer panel protection in facilities with aggressive fault currents. Feature → Business Impact → Application: Three‑pole configuration offers balanced disconnect, simplifying wiring practices and improving safety in 3‑phase systems found in packaging, robotics, and process lines. Feature → Business Impact → Application: Compatibility with TCF and FCF fuse families streamlines spares management and procurement, cutting lead times and inventory costs for OEMs and maintenance teams working across process industries.
Get a Quick Quote for a Eaton CCP2S-2-60CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2S-2-60CF?
Enquire Now
FAQs
For proper installation, plan for a three-pole disconnect with enough panel space to accommodate its 2.9 in depth, 3.7 in height, and 0.3 in width profile. Ensure mounting supports the finger-safe enclosure and that the Lock-On feature is accessible for secure operation during maintenance and testing.
Yes. The CCP2S-2-60CF is suitable for TCF6 to TCF60 and FCF1RN to FCF60RN fuse families, allowing streamlined spare parts management and consistent electrical protection across assemblies.
The unit features UL 98 fusible disconnect protection, a finger-safe design, and a Lock-On provision. It is CCC Marked for international compliance, supporting safe operation in multi‑national installations.
The device is rated for 225 A, with a voltage rating of 600 Vac and 125 Vdc, and a short-circuit rating of 200 kAIC, suitable for high‑power, 3‑phase systems in industrial settings.
Benefits include reduced maintenance downtime due to safer, quicker fuse changes, fewer safety incidents from finger-safe design, and improved compliance with UL and CCC standards. The Lock-On feature further minimizes rework after servicing, delivering measurable uptime gains in production environments.
