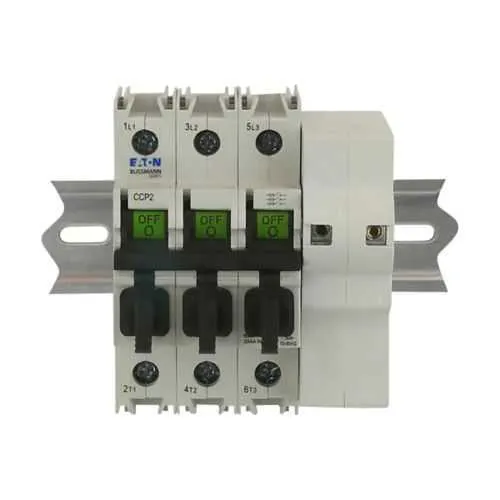

Eaton CCP2S-3-30CC Fusible Disconnect - UL98 Class CC 600V
Part Number: CCP2S-3-30CC
Quick Summary
CCP2S-3-30CC is a UL98-listed three-pole fusible disconnect designed for safe isolation of 3-phase power in industrial controls. Engineers often struggle with space constraints, wiring complexity, and the need for reliable protective isolation in panels. This device combines UL98 listing with a robust 600 Vac / 125 Vdc rating, a 200 kAIC short-circuit capability, and a three-pole Class CC fuse interface to simplify compliance and installation. By integrating reliable protection with a compact footprint, it supports streamlined panel design, reduced BOMs, and faster commissioning for industrial equipment, machine controllers, and MCCs.
Product Information
Extended Description
CCP2S-3-30CC Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 600 Vac, 125 Vdc, 30A, UL98 fusible disconnect, Three-pole, 60 Hz, Class CC, 200 - CCP2S-3-30CC
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2S-3-30CC
UPC
051712709736
Product Length/Depth
1.9 in
Product Height
3.7 in
Product Width
0.3 in
Product Weight
1.12 lb
Warranty
Not Applicable
Certifications
Contact Manufacturer
Amperage Rating
30A
Frequency rating
60 Hz
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Fuse type
Class CC
Number Of Poles
Three-pole
Suitable for fuses
LP-CC-1/2 to LP-CC-30 KTK-R-1/10 to KTK-R-30 FNQ-R-1/4 to FNQ-R-30
CCP2S-3-30CC~3 Pole Comp Ckt Protect 30A
CCP2S-3-30CC~3 Pole Comp Ckt Protect 30A
Eaton Specification Sheet - CCP2S-3-30CC
Feature: UL98-listed three-pole fusible disconnect with Class CC fuse interface. Benefit: Ensures safe isolation and compliant protection in control panels, reducing risk of nuisance trips and enabling straightforward commissioning for 3-phase circuits. Application: Industrial control panels and motor control centers seeking reliable, code-aligned disconnects. Feature: 600 Vac and 125 Vdc electrical rating with 30 A at 60 Hz. Benefit: Supports diverse control and motor-start loads with predictable performance and improved uptime. Application: Wiring for equipment that transitions between AC mains and DC control circuits. Feature: 200 kAIC short-circuit rating. Benefit: Higher fault protection translates to greater equipment protection and slower downstream damage during faults. Application: Heavy-duty machinery, packaging lines, and process equipment with higher fault potential. Feature: Compact footprint (1.9 in depth x 3.7 in height x 0.3 in width) and 1.12 lb weight. Benefit: Facilitates easier panel integration, lower enclosure intrusion, and simplified field mounting. Application: Space-constrained control cabinets and retrofit projects. Feature: Compatibility with LP-CC fuses and common Bussmann series DIN/bolt-on fuse families (LP-CC, KTK-R, FNQ-R). Benefit: Reduces BOM complexity and allows easy fuse replacement without changing disconnection hardware. Application: Modernization projects and new installations in industrial automation environments.
Get a Quick Quote for a Eaton CCP2S-3-30CC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2S-3-30CC?
Enquire Now
FAQs
Install the CCP2S-3-30CC in a suitable 3-phase panel by mounting the unit in a dedicated disconnect position, wiring three phase lines to the input lugs, and connecting the load to the corresponding outputs. Ensure the device is rated for the panel’s voltage (600 Vac, 60 Hz) and that LP-CC fuses compatible with the controller are used. The compact footprint aids tight enclosure layouts and reduces panel depth.
The CCP2S-3-30CC is rated for 30 A at 60 Hz, with a voltage rating of 600 Vac and 125 Vdc. It provides a 200 kAIC short-circuit rating, making it suitable for protecting 3-phase circuits in industrial environments and helping limit damage from faults.
Yes. The unit is suitable for fuses in the LP-CC family (LP-CC-1/2 to LP-CC-30) and is compatible with additional Bussmann fuse families such as KTK-R and FNQ-R, enabling flexible protection schemes and easy replacement without altering disconnect hardware.
This device is ideal for 3-phase industrial control panels, motor control centers, and machinery protection where safe isolation and robust short-circuit performance are required. Its compact form factor and UL98 listing support compliant, reliable protection in space-constrained environments.
The CCP2S-3-30CC is UL98-listed, providing a recognized safety pathway for control circuits. For additional certifications or regional approvals (such as CE), contact the manufacturer to confirm current compliance status and any required documentation for your installation site.
