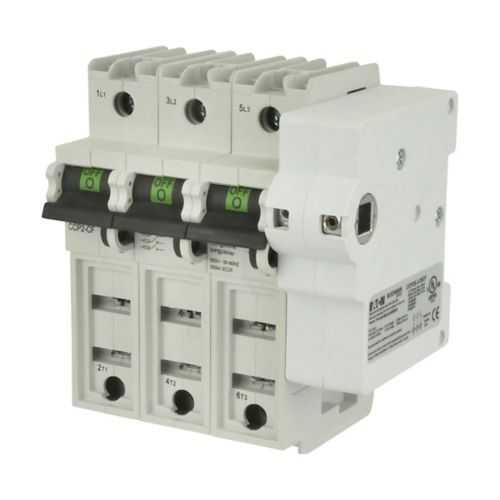

Eaton CCP2S-3-30CF Fusible Disconnect - UL98 Certification
Part Number: CCP2S-3-30CF
Quick Summary
Eaton CCP2S-3-30CF Fusible Disconnect provides safe isolation for motor and power circuits in industrial control panels. Engineers rely on compact, reliable devices to minimize electrical risk and downtime, and this unit delivers. The design emphasizes finger-safe access and a secure Lock-On provision to prevent accidental re-energization during maintenance. UL98 listing and CCC Marked compliance support regulatory alignment, while manufacturer certification details ensure traceability for your quality program. With a three-pole, 225 A rating and a 200 kAIC short-circuit capability, it handles demanding industrial environments. For panel builders, the CCP2S-3-30CF couples well with standard fuse families and offers a compact footprint that streamlines installation and maintenance workflows.
Product Information
Extended Description
CCP2S-3-30CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 225A, UL98 fusible disconnect, Three-pole, 200 kA - CCP2S-3-30CF
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2S-3-30CF
UPC
051712709897
Product Length/Depth
2.9 in
Product Height
3.7 in
Product Width
0.3 in
Product Weight
3.7 lb
Warranty
Not Applicable
Compliances
CCC Marked
Certifications
Contact Manufacturer
Amperage Rating
225 A
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Number Of Poles
Three-pole
Special features
Finger Safe, Lock-On provision
Suitable for fuses
TCF6 to TCF30 TCF1RN to TCF30RN FCF1RN to FCF30RN
CCP2S-3-30CF~CCP2 3P 30A CF W/ SIDE HandM RIGHT
CCP2S-3-30CF~CCP2 3P 30A CF W/ SIDE HandM RIGHT
Eaton Specification Sheet - CCP2S-3-30CF
High current capacity and fault tolerance enable reliable protection for heavy equipment, reducing fault-related downtime. The CCP2S-3-30CF is rated for 225 A with a 200 kAIC short-circuit rating, making it suitable for demanding motor feeders and power circuits up to 600 Vac or 125 Vdc in industrial panels. Finger Safe design and Lock-On provision enhance operator safety and prevent accidental energization during maintenance, delivering safer, faster service windows. The three-pole configuration ensures consistent phase isolation for three-phase motors, improving system reliability and simplifying protection coordination in control panels. Compatibility with broad fuse families (TCF6–TCF30, TCF1RN–TCF30RN, FCF1RN–FCF30RN) reduces part variety and stock costs while accelerating startup timelines. Its compact footprint and modest weight simplify panel layout and retrofit projects, enabling easier inspections and service.
Get a Quick Quote for a Eaton CCP2S-3-30CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2S-3-30CF?
Enquire Now
FAQs
CCP2S-3-30CF is designed for broad fuse compatibility, including TCF6 to TCF30 series, TCF1RN to TCF30RN, and FCF1RN to FCF30RN. This reduces part variety while maintaining reliable protection in three-phase systems.
The unit is rated for 225 A current, with a 200 kAIC short-circuit rating, and voltage ratings of 600 Vac and 125 Vdc. These ratings suit motor feeders and control circuits in demanding industrial environments.
Yes. The CCP2S-3-30CF is UL 98 listed and CCC Marked, providing recognized safety and regional compliance assurances. For additional certifications such as CE or SIL, consult the manufacturer for documentation and applicability to your project.
The disconnect measures 2.9 inches in length, 3.7 inches in height, and 0.3 inches in width, with an approximate weight of 3.7 pounds. These compact dimensions support tight panel layouts and straightforward mounting in standard electrical enclosures.
Common applications include three‑phase motor control, power distribution in panels, and safety isolation in industrial processes. Benefits include safe isolation with finger-safe access, reliable Lock-On maintenance, high fault-current handling, and streamlined integration with common fuse families, which can shorten commissioning time and reduce downtime.
