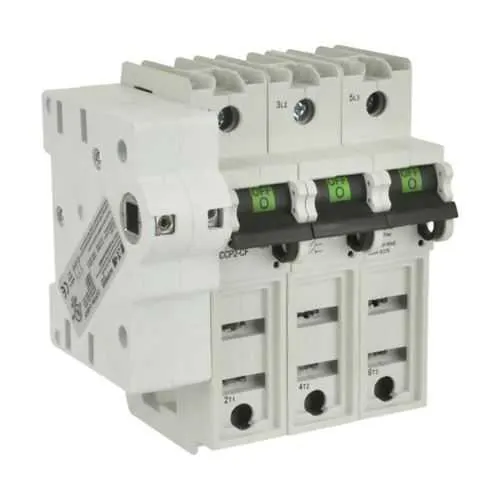

Eaton CCP2SL-2-100CF Fusible Disconnect - UL98
Part Number: CCP2SL-2-100CF
Quick Summary
The Eaton CCP2SL-2-100CF UL98 fusible disconnect safely interrupts power in industrial control panels. This solution helps control engineers overcome installation complexity, space constraints, and uncertain UL compliance in demanding environments. Notable safety considerations include UL 98 certification as a primary safety reference, with Eaton able to confirm additional certifications such as CE or IP ratings if required. The unit’s compact footprint and compatibility with standard fusing practices translate to faster panel assembly and safer, more reliable operation for power distribution and motor control applications.
Product Information
Extended Description
CCP2SL-2-100CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 600 Vac, 125 Vdc, 100A, UL98 fusible disconnect, Two-pole, 60 Hz, CUBEFuse, 200 - CCP2SL-2-100CF
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2SL-2-100CF
UPC
051712710060
Product Length/Depth
3.4 in
Product Height
5.3 in
Product Width
3 in
Product Weight
1.43 lb
Warranty
Not Applicable
Certifications
Contact Manufacturer
Amperage Rating
100A
Frequency rating
60 Hz
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Fuse type
CUBEFuse
Number Of Poles
Two-pole
Suitable for fuses
TCF6 to TCF100 TCF1RN to TCF100RN FCF1RN to FCF100RN
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2SL-2-100CF
Feature → Business Impact → Application: The CCP UL98 fusible disconnect delivers a clean, two-pole power interruption with a robust short-circuit rating, which translates to safer startup sequences and reduced arc exposure in control panels. In practice, this means lower risk during maintenance and faster fault isolation, improving overall equipment reliability for automated lines and packaging systems. Feature → Business Impact → Application: Rated for 600 Vac and 125 Vdc at 100 A with 200 kAIC, it supports high-demand industrial equipment and motor circuits, delivering dependable performance under fault conditions and helping meet stringent safety standards in manufacturing facilities. Feature → Business Impact → Application: CUBEFuse technology and two-pole design simplify wiring and fault-clearing actions, reducing installation time and enabling straightforward compatibility with standard control gear, MCCs, and panel boards in automation projects. Feature → Business Impact → Application: Compatibility with TCF6 to TCF100 and FCF-series fuses provides inventory flexibility and future-proofing for evolving protection strategies, minimizing spare parts carry costs and supporting scalable machine architectures. Feature → Business Impact → Application: Compact footprint—3.4 in depth, 5.3 in height, 3 in width—and a manageable weight of 1.43 lb enable tighter panel layouts, easier retrofits, and safer handling during installation in compact electrical rooms and cabinets.
Get a Quick Quote for a Eaton CCP2SL-2-100CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2SL-2-100CF?
Enquire Now
FAQs
The CCP2SL-2-100CF is designed for use with CCP-series fuse components and is specifically noted as suitable for fuses in the TCF and FCF ranges (TCF6 to TCF100, TCF1RN to TCF100RN, FCF1RN to FCF100RN). Installation should follow the Eaton installation sheet, ensuring correct alignment, secure terminal connections, and proper clearance for 600 Vac operation. The two-pole design simplifies wiring, reduces wiring errors, and supports quick fault isolation in control panels.
Yes. The CCP2SL-2-100CF is rated for 600 Vac and 125 Vdc, supporting high-energy protection in industrial environments. It provides a short-circuit rating of 200 kAIC, enabling safe interruption of large fault currents typical in motor and power distribution circuits. Always verify the complete system’s fault current and coordinate with upstream protection to maintain selectivity.
This unit is designed to be compatible with the CCP fuse family and listed as suitable for a broad set of fuses including TCF and FCF series. It has compact dimensions: 3.4 in depth, 5.3 in height, and 3 in width, with a weight of 1.43 lb, making it straightforward to incorporate into confined panel spaces and MCCs while allowing room for wiring and terminal access.
UL98 is the primary safety certification associated with this disconnect. Eaton recommends confirming any additional regional certifications (such as CE or IP ratings) with their technical support or datasheets, as listed in the product literature. Always verify that the device and its fuse configuration meet your local electrical codes, utility requirements, and industry standards for mission-critical equipment.
Adopting the CCP2SL-2-100CF can reduce downtime and maintenance costs by improving fault isolation speed and reliability in control circuits. Its compatibility with common fuse families simplifies spare parts management, while the robust 200 kAIC rating and UL98 certification help ensure regulatory compliance and long service life in high-demand automation environments, delivering a favorable total cost of ownership over time.
