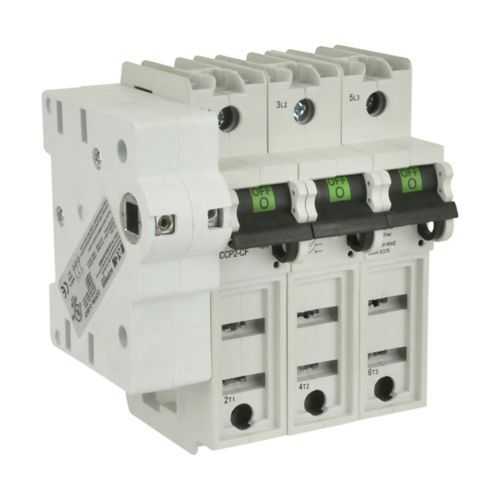

Eaton CCP2SL-3-100CF Fusible Disconnect - UL98
Part Number: CCP2SL-3-100CF
Quick Summary
The Eaton CCP2SL-3-100CF Fusible Disconnect provides safe isolation for three-phase power feeds in industrial control panels. Engineers often struggle with reliable fault isolation and arc-flash risk, especially in tight enclosures and high-current applications; this unit delivers fast, code-compliant disconnection and straightforward serviceability. UL 98 recognition supports safe disconnecting in 600 Vac and 125 Vdc circuits, with a 200 kAIC short-circuit rating and three-pole operation. Its compatibility with CCP fuses and TCF-series devices helps streamline panel design, maintenance, and spare-part management while keeping installation straightforward in new builds or retrofit projects. For machine builders and facilities teams, it offers a measurable return through improved safety, reduced downtime, and simplified warranty compliance.
Product Information
Extended Description
CCP2SL-3-100CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 600 Vac, 125 Vdc, 100A, UL98 fusible disconnect, Three-pole, 60 Hz, CUBEFuse, 200 - CCP2SL-3-100CF
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2SL-3-100CF
UPC
051712710077
Product Length/Depth
3.4 in
Product Height
5.3 in
Product Width
3 in
Product Weight
1.95 lb
Warranty
Not Applicable
Certifications
Contact Manufacturer
Amperage Rating
100A
Frequency rating
60 Hz
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Fuse type
CUBEFuse
Number Of Poles
Three-pole
Suitable for fuses
TCF6 to TCF100 TCF1RN to TCF100RN FCF1RN to FCF100RN
CCP2SL-3-100CF~3 Pole Comp Ckt Protect 100A
CCP2SL-3-100CF~3 Pole Comp Ckt Protect 100A
Eaton Specification Sheet - CCP2SL-3-100CF
Three-pole construction provides isolated, safe disconnection for three‑phase circuits, reducing arc-flash exposure and enabling safer maintenance both on the factory floor and in service shops. The business impact is improved uptime and safer re-energization during startup tests, especially in motor control centers and production lines; the application spans panel protection where reliable three‑phase isolation is essential. The voltage rating of 600 Vac / 125 Vdc supports mixed-load environments, helping you consolidate inventory and simplify wiring while maintaining compliance for standard industrial loads. With a 200 kAIC short‑circuit rating, the CCP2SL-3-100CF withstands high fault currents, lowering coordination complexity and mitigating potential damage to feeders and downstream devices; this is crucial for process industries and high-demand machinery. The CUBEFuse family compatibility and CCP integration streamline procurement and maintenance, reducing spare-part variety and ensuring quick fuse replacement in retrofit or new installations; applications include conveyors, presses, and automated assembly lines. Compact dimensions (3.4 in depth x 5.3 in height x 3 in width) and a practical 1.95 lb weight enable easy installation in tight panels, supporting space-saving control enclosures and faster field mounting. Overall, the unit delivers reliable protection with a straightforward install path, aiding project timelines and compliance reporting for industrial facilities.
Get a Quick Quote for a Eaton CCP2SL-3-100CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2SL-3-100CF?
Enquire Now
FAQs
Install the CCP2SL-3-100CF with all power isolated, following lockout/tagout procedures. Verify correct three-phase wiring to the CCP’s input terminals and connect the CCP to the CCP or TCF fuse family as specified by the control panel design. Confirm compatibility with 60 Hz systems and ensure proper clearance for safe maintenance and future fuse replacements.
The CCP2SL-3-100CF is rated for 100 A, 60 Hz operation, with a voltage rating of 600 Vac / 125 Vdc and a short-circuit rating of 200 kAIC. It uses CUBEFuse as the fuse type and provides three-pole isolation, suitable for typical industrial control circuits and motor feeder protection while maintaining safe disconnect functionality.
Yes. The CCP2SL-3-100CF is designed for compatibility with TCF fuse families, including TCF6 to TCF100, TCF1RN to TCF100RN, and FCF1RN to FCF100RN. This enables streamlined protection schemes and easier spare-parts management across new builds and retrofit projects in manufacturing environments.
The product is described as a UL98 fusible disconnect, aligning with UL 98 standards for fusible disconnects. For formal certification documentation and current status, consult the manufacturer. This certification basis supports compliance in many industrial installations and panel-mounted protection configurations.
The unit measures 3.4 inches deep, 5.3 inches high, and 3 inches wide, with a weight of approximately 1.95 pounds. This compact footprint supports installation in tighter control panels and enclosures, facilitating easier field mounting and service access while maintaining robust mechanical and electrical protection for three-pole circuits.
