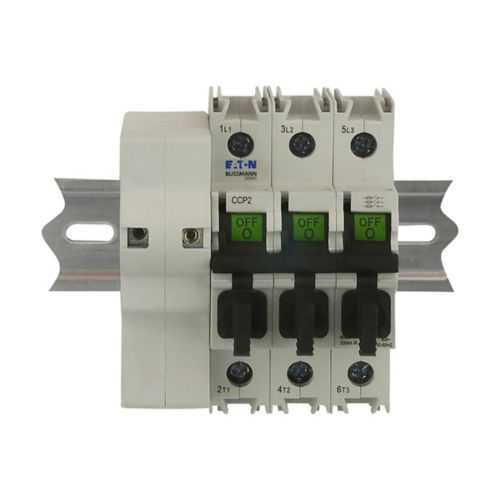

Eaton CCP2SL-3-30CC Fusible Disconnect - UL98 Class CC
Part Number: CCP2SL-3-30CC
Quick Summary
Eaton CCP UL98 fusible disconnect provides reliable protective switching for industrial power circuits. Designed for panel builders and automation engineers, it delivers safe isolation with compact footprint in control enclosures. This three-pole disconnect is rated for 600 Vac and 125 Vdc, offering 30 A and a robust 200 kAIC short-circuit capability to minimize fault-related downtime. The UL 98 listing underscores safety compliance, while Class CC fuses and LP-CC/KTK-R/FNQ-R compatibility support streamlined maintenance and stocking. For teams focused on improving safety, reducing installation time, and ensuring regulatory adherence, this device combines protection and disconnection in a single, space-efficient package that scales with your panel designs.
Product Information
Extended Description
CCP2SL-3-30CC Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 600 Vac, 125 Vdc, 30A, UL98 fusible disconnect, Three-pole, 60 Hz, Class CC, 200 - CCP2SL-3-30CC
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2SL-3-30CC
UPC
051712709750
Product Length/Depth
1.9 in
Product Height
3.7 in
Product Width
0.3 in
Product Weight
1.12 lb
Warranty
Not Applicable
Certifications
Contact Manufacturer
Amperage Rating
30A
Frequency rating
60 Hz
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Fuse type
Class CC
Number Of Poles
Three-pole
Suitable for fuses
LP-CC-1/2 to LP-CC-30 KTK-R-1/10 to KTK-R-30 FNQ-R-1/4 to FNQ-R-30
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - CCP2SL-3-30CC
Feature → Business Impact → Application: The CCP2SL-3-30CC is a three-pole UL98 fusible disconnect rated for 600 Vac and 125 Vdc, delivering 30 A with a 200 kAIC short-circuit rating. This translates to safer startup shutdown sequences and reduced risk during fault events in motor feeders and control panels. Application: suitable for industrial power distribution where reliable live-switch isolation is required and high fault tolerance is essential. Feature → Business Impact → Application: Compact dimensions (1.9 in depth, 3.7 in height, 0.3 in width) and a lightweight 1.12 lb footprint enable easier panel integration and wiring management. Application: ideal for crowded control cabinets, compact MCCs, and equipment housings where space is at a premium. Feature → Business Impact → Application: Class CC fuse type with compatibility to LP-CC-1/2 to LP-CC-30, KTK-R-1/10 to KTK-R-30, FNQ-R-1/4 to FNQ-R-30 series fuses reduces replacement stock and simplifies procurement. Application: supports standard fuse interchangeability in maintenance shop and field installations. Feature → Business Impact → Application: UL 98 listing reinforces compliance with safety standards, lowering regulatory risk and accelerating approvals for panel builds. Application: beneficial for machine builders and integrators seeking validated product safety for industrial deployments. Feature → Business Impact → Application: Three-pole design ensures balanced phase protection and consistent switching behavior, improving motor and load protection in industrial automation lines. Application: suitable for starter circuits, conveyors, pumps, and fan assemblies where synchronized phase isolation is critical. Feature → Business Impact → Application: Detailed dimensional and weight data (1.9 in L, 3.7 in H, 0.3 in W; 1.12 lb) aids accurate BOM planning and enclosure budgeting. Application: enables precise enclosure sizing, reducing over-design and shipping costs. Feature → Business Impact → Application: LP-CC-1/2 to LP-CC-30, KTK-R-1/10 to KTK-R-30, FNQ-R-1/4 to FNQ-R-30 fuse compatibility simplifies spares strategy and lifecycle planning. Application: streamlines maintenance across diversified equipment fleets in plants with mixed fuse families.
Get a Quick Quote for a Eaton CCP2SL-3-30CC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2SL-3-30CC?
Enquire Now
FAQs
CCP2SL-3-30CC is a three-pole UL98 fusible disconnect rated at 600 Vac and 125 Vdc, with a compact footprint suitable for crowded control panels. It accepts LP-CC-1/2 to LP-CC-30, KTK-R-1/10 to KTK-R-30, and FNQ-R-1/4 to FNQ-R-30 fuses, simplifying assembly and spare parts management.
The device provides 30 A current rating with a 200 kAIC short-circuit rating, operating at 600 Vac and 125 Vdc. Its three-pole Class CC fuse design ensures selective coordination and safe disconnection under overload or fault conditions in industrial circuits.
Yes, the CCP2SL-3-30CC is a UL98 fusible disconnect, indicating compliance with UL 98 safety standards for fusible disconnect switches. Class CC refers to the fuse size and type, optimizing protection for small- to medium-load applications while maintaining reliable interrupt performance.
Absolutely. With three-pole design, 30 A rating, and robust short-circuit protection, the CCP2SL-3-30CC is well-suited for motor starters, conveyors, pumps, and other automation loads requiring reliable isolation and protection in industrial environments.
Plan to stock LP-CC, KTK-R, and FNQ-R compatible fuses to minimize downtime. The compact form factor simplifies wiring and enclosure planning, while UL 98 compliance helps ensure regulatory alignment. Periodic inspection should verify fuse integrity and interlock operation during preventive maintenance.
