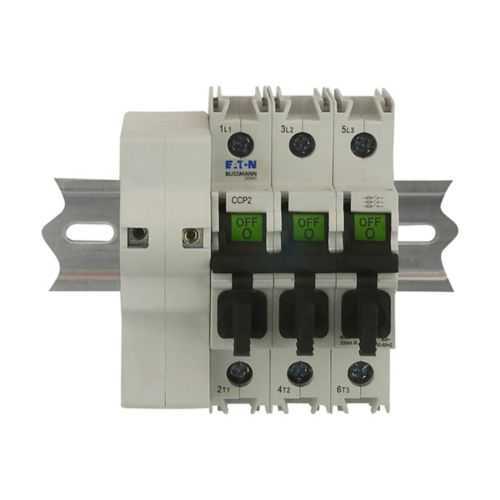

Eaton CCP2SL-3-30M UL98 Fusible Disconnect
Part Number: CCP2SL-3-30M
Quick Summary
The Eaton CCP2SL-3-30M is a UL98 fusible disconnect engineered for safe circuit protection in panelboards and industrial switchgear. This converged solution reduces downtime by providing a single, code-aligned device that both isolates and protects circuits. In practice, technicians value a three-pole design for balanced three-phase protection, a 30A rating for common motor loads, and a compact footprint. Certifications and regulatory alignment—such as UL 98 compliance and regional CE expectations—support fast audits, safer installations, and smoother maintenance cycles. Designed for Eaton Bussmann series compatibility, it integrates seamlessly with existing protective schemes and reduces inventory complexity. For retrofit projects, its standardized dimensions and mounting footprint keep installation times predictable.
Product Information
Extended Description
CCP2SL-3-30M Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, 30A, UL98 fusible disconnect, Three-pole, 60 Hz, Supplemental, 120 - CCP2SL-3-30M
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2SL-3-30M
UPC
051712709835
Product Length/Depth
1.9 in
Product Height
3.7 in
Product Width
0.3 in
Product Weight
1.12 lb
Warranty
Not Applicable
Certifications
Contact Manufacturer
Amperage Rating
30A
Frequency rating
60 Hz
Short-circuit rating
120 kAIC
Fuse type
Supplemental
Number Of Poles
Three-pole
CCP2SL-3-30M~3 Pole Comp Ckt Protect 30A
CCP2SL-3-30M~3 Pole Comp Ckt Protect 30A
Eaton Specification Sheet - CCP2SL-3-30M
Feature → Business Impact → Application: Feature: UL98 fusible disconnect with a three-pole 30A rating. Business Impact: Consolidates protection and isolation, reducing wiring complexity, shortening installation time, and improving fault isolation during servicing. Application: Ideal for 3-phase motor drives and industrial control panels where fast, code-compliant isolation is required. Feature: Three-pole construction provides balanced phase protection. Business Impact: Ensures consistent fault clearance across all legs, minimizing downtime from phase imbalances. Application: Suitable for three-phase motors, conveyors, and automation circuits in machinery rooms. Feature: Short-circuit rating of 120 kAIC. Business Impact: High fault tolerance reduces risk of cascading faults in distribution panels. Application: Manufacturing lines and switchgear assemblies in high-current environments. Feature: Supplemental fuse type. Business Impact: Supports selective coordination and safer disconnection during abnormal conditions. Application: Replacements or upgrades within existing protection schemes. Feature: Compact footprint and defined dimensions. Business Impact: Saves enclosure space and simplifies retrofit in tight installations. Application: Panelboards and control cabinets with limited clearance. Feature: Compatibility with Eaton Bussmann series. Business Impact: Streamslines procurement, reduces spare parts inventory, and ensures consistent performance. Application: Integrates with CCP-series protection and existing Bussmann catalogs.
Get a Quick Quote for a Eaton CCP2SL-3-30M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2SL-3-30M?
Enquire Now
FAQs
When planning installation, confirm enclosure space and panel ratings align with a 30A, three‑phase device. Ensure proper mounting clearance for fuse access and use three separate conductors for each phase. Verify UPC and catalog details (CCP2SL-3-30M) during procurement and follow local electrical codes for safe isolation in control panels.
The 30A rating applies per pole, 60 Hz indicates the common AC supply frequency, and the 120 kAIC short-circuit rating specifies the maximum fault current the unit can interrupt. Being a three-pole device, it protects all three phases, which is essential for balanced motor loads in three-phase systems.
Yes. CCP2SL-3-30M is part of the Eaton Bussmann CCP family and is designed for seamless integration within Bussmann series protection schemes. This compatibility supports consistent protection coordination, simplifies ordering, and helps maintain uniform performance across installed protection devices.
UL 98 compliance is clearly associated with fusible disconnect devices, providing recognized protection performance. CE-type regional approvals are common for European markets, though exact certifications should be confirmed with the manufacturer for your specific project and location.
The product length/depth is 1.9 inches, height is 3.7 inches, and width is 0.3 inches, with a weight around 1.12 pounds. This compact footprint supports dense panel layouts and easier retrofit in existing enclosures without sacrificing protection or accessibility.
