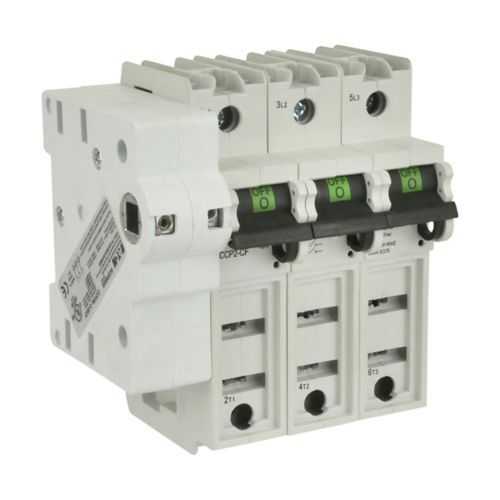

Eaton CCP2SL-3-60CF Fusible Disconnect - UL98 200 kAIC
Part Number: CCP2SL-3-60CF
Quick Summary
The Eaton CCP2SL-3-60CF is a UL98 fusible disconnect used to safely isolate power in industrial control panels. In demanding environments, space constraints, high fault currents, and maintenance safety challenges can erode uptime. It carries UL98 listing, CCC Marked compliance, and Finger Safe with a Lock-On provision to meet global and local safety standards. Designed for three-pole protection, it supports 225 A and a 200 kAIC short-circuit rating, with a 600 Vac / 125 Vdc voltage profile. This combination makes it a practical choice for panel builders and machine integrators seeking reliable protection, regulatory alignment, and easy integration into existing electrical protection schemes.
Product Information
Extended Description
CCP2SL-3-60CF Eaton: Eaton Bussmann series CCP UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 225A, UL98 fusible disconnect, Three-pole, 200 kA - CCP2SL-3-60CF
Product Name
Eaton Bussmann series CCP UL98 fusible disconnect
Catalog Number
CCP2SL-3-60CF
UPC
051712709996
Product Length/Depth
3.5 in
Product Height
8.1 in
Product Width
3 in
Product Weight
3.7 lb
Warranty
Not Applicable
Compliances
CCC Marked
Certifications
Contact Manufacturer
Amperage Rating
225 A
Short-circuit rating
200 kAIC
Voltage rating
600 Vac, 125 Vdc
Number Of Poles
Three-pole
Special features
Finger Safe, Lock-On provision
Suitable for fuses
TCF6 to TCF60 TCF1RN to TCF60RN FCF1RN to FCF60RN
CCP2SL-3-60CF~CCP2 3P 60A CF W/ SIDE HandM LEFT
CCP2SL-3-60CF~CCP2 3P 60A CF W/ SIDE HandM LEFT
Eaton Specification Sheet - CCP2SL-3-60CF
Three-pole UL98 fusible disconnect is the core feature, providing synchronized isolation for each phase to minimize arc energy and enable controlled shutdown during maintenance. In panel assemblies and machine enclosures, this translates to safer commissioning and reduced downtime. A 225 A amperage rating paired with a 200 kAIC short-circuit capability delivers robust protection against high fault currents, improving equipment longevity and reducing risk of collateral damage in motor starters and power distribution networks. The 600 Vac / 125 Vdc voltage rating broadens applicability across AC motor drives and DC control circuits, supporting unified protection schemes and simpler procurement. Finger Safe design and Lock-On provision enhance on-site safety and secure operation, preventing accidental re-energization during service. With compact footprint—3.5 in depth, 8.1 in height, 3 in width—and a 3.7 lb weight—the CCP2SL-3-60CF fits tight panel spaces without compromising protection. Finally, broad fuse compatibility with TC and FCF families (TCF6–TCF60, TCF1RN–TCF60RN, FCF1RN–FCF60RN) reduces engineering time and stocking complexity.
Get a Quick Quote for a Eaton CCP2SL-3-60CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCP2SL-3-60CF?
Enquire Now
FAQs
Yes. The CCP2SL-3-60CF is designed to accept Bussmann series fuses in the TC F6–TCF60 range as well as FCF1RN–FCF60RN variants. This broad compatibility reduces installation time and ensures consistent protection across existing panels, motor drives, and control circuits.
The device is a three-pole fusible disconnect rated for 225 A, with a short-circuit rating of 200 kAIC, and electrical ratings of 600 Vac and 125 Vdc. These specs support wide-ranging industrial applications, including motor control centers and DC control circuits in demanding environments.
It is ideal for three-phase panel protection in manufacturing equipment, machine control cabinets, and process lines. Its high fault-current capability and finger-safe design make it suitable for demanding industrial environments where safe isolation and quick maintenance are priorities.
Key safety features include Finger Safe construction and a Lock-On provision, which prevent accidental energization during service. The UL98 listing and CCC Marked compliance further reinforce adherence to safety standards in both global and local regulatory contexts.
The disconnect measures approximately 3.5 inches in depth, 8.1 inches in height, and 3 inches in width, with a weight around 3.7 pounds. Its compact footprint supports installation in space-constrained panels and simplifies retrofits, while maintaining robust electrical protection.
