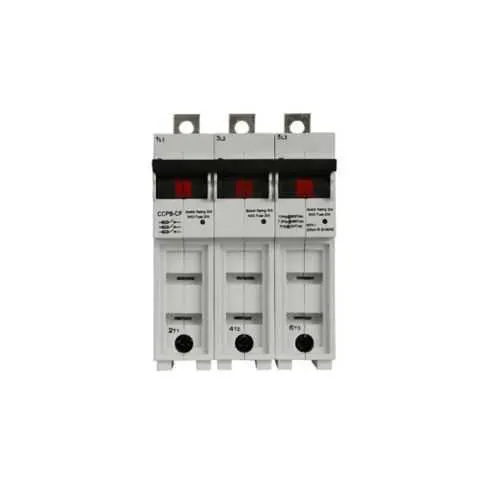

Eaton CCPB-3-50CF UL98 Fusible Disconnect - Class CF
Part Number: CCPB-3-50CF
Quick Summary
CCPB-3-50CF UL98 fusible disconnect provides reliable overcurrent protection for control panels. It helps prevent costly outages by quickly isolating faults and protecting downstream equipment in automation and motor control circuits. Engineers often struggle with balancing safety, accessibility, and downtime during maintenance, and the right disconnect can make this easier. This device is CE marked and RoHS compliant, with UL98 fusible disconnect capability and a Class CF rating for dependable, code-compliant performance in harsh industrial environments. Designed for 600 V systems and up to 50 A, it supports three poles and lock-on capability, which simplifies wiring, reduces rework, and accelerates commissioning across panel boards.
Product Information
Extended Description
CCPB-3-50CF Eaton: Eaton Bussmann series CCPB UL98 fusible disconnect, Finger Safe, Lock-On provision, 600V, 50A, UL98 fusible disconnect, Three-pole, Class CF, 200KA
Product Name
Eaton Bussmann series CCPB UL98 fusible disconnect
Catalog Number
CCPB-3-50CF
UPC
051712205009
Product Length/Depth
0.11 in
Product Height
0.15 in
Product Width
0.12 in
Product Weight
0.8 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
50A
Short-circuit rating
200 kAIC
Voltage rating
600 V
Number Of Poles
Three-pole
Class
Class CF
Special features
Finger Safe, Lock-On provision
CCPB-3-50CF~CCP BASE, 3 POLE, 50A CF PANEL BOARD
CCPB-3-50CF~CCP BASE, 3 POLE, 50A CF PANEL BOARD
Eaton Specification Sheet - CCPB-3-50CF
The CCPB-3-50CF is a three-pole UL98 fusible disconnect rated at 50 A and 600 V, delivering a clear, isolated path for each phase and coordinated protection across all three phases. In practice this reduces arc exposure and simplifies fault isolation in control panels, while supporting straightforward verification during maintenance. Finger Safe design and a Lock-On provision enhance operator safety and ensure the disconnect remains engaged, minimizing accidental contact and rework during servicing. With a 200 kAIC short-circuit rating and Class CF designation, it delivers high fault tolerance and predictable interruption for panel boards feeding high-energy loads. CE marking and RoHS compliance address global regulatory expectations, and the unit integrates with CCP BASE 3-pole configurations to streamline installation. Its compact footprint (0.11 in depth, 0.15 in height, 0.12 in width) and light weight (~0.8 lb) ease replacement and cabinet layout, reducing downtime and spare parts needs. From a procurement perspective, this device supports faster commissioning, lower inventory, and improved uptime across automation panels.
Get a Quick Quote for a Eaton CCPB-3-50CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CCPB-3-50CF?
Enquire Now
FAQs
To install the CCPB-3-50CF, verify panel space and ensure a three-pole enclosure supports a Class CF disconnect. Connect each phase to the corresponding input terminals, secure with the Lock-On feature, and confirm finger-safe wiring. Ensure the 600 V rating aligns with your system voltage and that the device is properly coordinated with the surrounding protective devices to meet local codes.
The CCPB-3-50CF is rated for 50 A continuous current, 600 V, with a short-circuit rating of 200 kAIC. It is a UL98 fusible disconnect with Class CF protection. This combination ensures reliable fault isolation across three phases, reducing the likelihood of nuisance trips and enabling safe maintenance under high-energy conditions.
Yes. The three-pole design, 600 V rating, and 200 kAIC short-circuit capacity make the CCPB-3-50CF suitable for motor control centers and automation panels where high fault energy and rapid isolation are critical. Its finger-safe construction and lock-on provision also support safe commissioning and ongoing maintenance in motor-driven applications.
The CCPB-3-50CF carries CE marking and RoHS compliance, reflecting global regulatory adherence. The product name references UL98 fusible disconnect functionality, which aligns with industry practice for protective switching devices. For specific UL listings beyond the UL98 designation, consult the manufacturer documentation or product datasheet.
The disconnect supports easy fuse replacement within CCP BASE configurations, reducing downtime during maintenance. Its robust 200 kAIC protection minimizes unexpected outages, while the compact, lightweight design simplifies spare parts stocking and panel space planning. Over the system lifetime, this translates to lower maintenance labor costs and higher overall equipment uptime.
