Eaton CD1 Drain - Ordinary Location NEC/CEC Standards
Part Number: CD1
Quick Summary
CD1 drain is a steel drainage solution from Eaton Crouse-Hinds designed for ordinary-location enclosures. It addresses moisture ingress and space constraints that complicate enclosure maintenance and can lead to downtime. The product carries NEC/CEC standards compliance and Ordinary Location area classification, with a compact 1/2 inch trade size and a lightweight steel body to simplify installation. For project teams, this translates to faster panel builds, easier field servicing, and predictable compliance across multiple jurisdictions, supported by accessible technical documentation and certified Canadian indicators. The CD1 drain also aligns with related components for steel drainage systems, helping OEMs and integrators meet performance targets without over-specifying.
Product Information
Extended Description

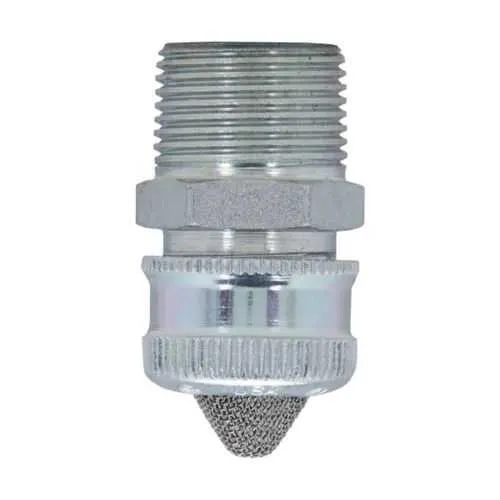

CD1 Eaton: Eaton Crouse-Hinds series CD drain, Steel, 1/2"
Product Name
Eaton Crouse-Hinds series CD drain
Catalog Number
CD1
UPC
782274058795
Product Length/Depth
1.23 in
Product Height
2.01 in
Product Width
1.13 in
Product Weight
0.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Material
Steel
Trade size
1/2"
Crouse-Hinds series CD Ordinary Location Drain catalog page
CD Ordinary Location Drain Canadian certification
CD Ordinary Location Drain Canadian certification
Eaton Specification Sheet - CD1
Feature: Solid steel construction provides rugged durability in typical factory environments. Business Impact: reduces replacement and maintenance costs while extending service life. Application: ideal for electrical enclosures in harsh industrial spaces where mechanical stress is common. Feature: Compact dimensions with product length 1.23 in, height 2.01 in, width 1.13 in, and weight 0.2 lb. Business Impact: enables installation in tight panel spaces, minimizes intrusion into enclosure interiors, and accelerates field retrofits. Application: suits compact control panels and compact meter enclosures. Feature: 1/2" trade size compatibility. Business Impact: lowers total install time by using standard fittings and connections, reducing need for adapters. Application: streamlines OEM assembly lines and retrofit projects. Feature: Certifications and compliance coverage including Ordinary Location area classification and NEC/CEC standards. Business Impact: simplifies regulatory approvals and third-party verifications, reducing risk of non-compliance. Application: ideal for panel builds requiring formal code alignment. Feature: Documentation and support lifecycle via catalogs and datasheets. Business Impact: ensures accurate procurement and consistent installation practices, lowering commissioning time. Application: supports design reviews and installer training with readily available Eaton resources and Canadian certification references.
Get a Quick Quote for a Eaton CD1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CD1?
Enquire Now
FAQs
The CD1 drain uses a 1/2 inch trade size and is designed to bolt or thread into common enclosure drain openings. To install, align the drain with the enclosure opening, secure with the appropriate hardware, and connect to the drain path using standard 1/2 inch fittings. Ensure a proper seal to prevent moisture ingress and verify clearance for maintenance access. This approach minimizes downtime and reduces the need for adapters or specialty components.
CD1 complies with NEC/CEC standards for electrical equipment in ordinary-location environments and carries Ordinary Location area classification. Additionally, UL Canada certification documents are available for regulatory review, helping confirm conformity for non-hazardous indoor locations. These certifications support compliance during inspections and reduce project risk when sourcing drainage components for enclosures.
Yes. The CD1 drain’s compact footprint—1.23 in long, 2.01 in high, 1.13 in wide, and weighing 0.2 lb—fits tight panels while delivering reliable drainage. Its 1/2" trade size aligns with standard enclosure fittings, enabling straightforward integration into existing panel designs without reconfiguring internal layouts. This makes it a strong choice for OEMs and retrofits in space-constrained environments.
A catalog page and a dedicated specification sheet are available from Eaton, along with Canadian certification documents. The CD1 product page provides the Eaton Specification Sheet and the Crouse-Hinds catalog page, which detail dimensions, material (steel), and the 1/2" trade size. This documentation streamlines ordering, testing, and field installation for project teams.
Choosing the CD1 drain delivers predictable regulatory compliance, a durable steel construction that minimizes replacement costs, and a compact form factor that reduces panel intrusion. The standard 1/2" drain size plus easy installation translates to lower commissioning times, fewer field modifications, and improved uptime for industrial panels and OEM assemblies.
