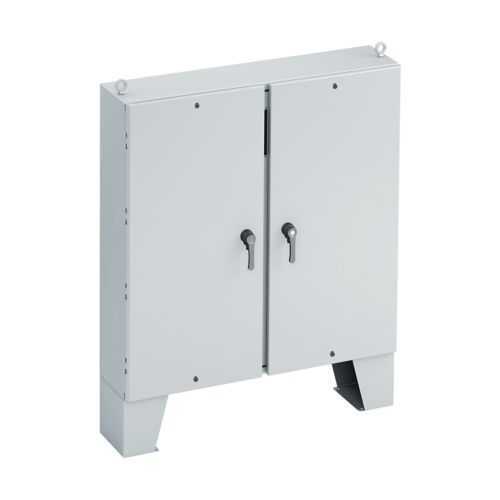

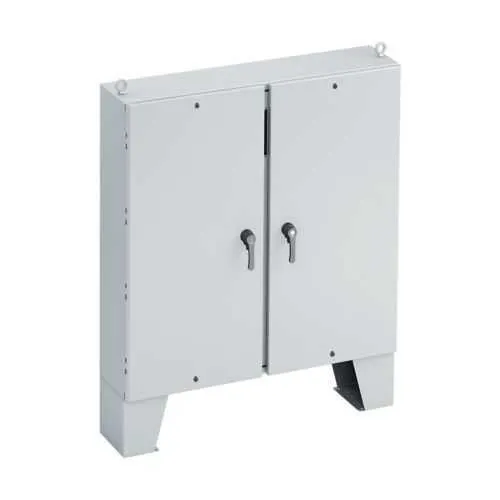

Eaton CD727218-4XSFD Disconnect Enclosure - NEMA 4X
Part Number: CD727218-4XSFD
Quick Summary
The Eaton B-Line ground mounted disconnect enclosure safely houses protection gear for industrial electrical installations. Rugged sites, moisture, and maintenance windows can complicate enclosure selection, risking downtime. This enclosure carries UL 508A, CSA C22.2, and NEMA ratings, delivering compliant performance in harsh environments. Its stainless steel body, hinged cover, and oil-resistant gasket provide durability against corrosion and weather exposure, while a 3-point latching handle supports secure access. With 12 bottom knockouts and a ground-mount configuration, it offers flexible installation and straightforward field wiring, helping facilities reduce installation time and lifecycle costs without compromising safety or compliance.
Product Information
Extended Description
CD727218-4XSFD Eaton: Eaton B-Line series ground mounted disconnect enclosure, 72"height, 12"length, 72"width, NEMA 4X, Hinged cover, CD4XSFD enclosure, Ground mount, Oil-resistant gasket
Product Name
Eaton B-Line series ground mounted disconnect enclosure
Catalog Number
CD727218-4XSFD
UPC
799038789598
Product Length/Depth
72 in
Product Height
72 in
Product Width
18 in
Product Weight
660.311 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Stainless steel
Color
Stainless steel
Mounting method
Ground
Special features
3-pt latching handle
Bottom knockouts
12
Material and durability: Stainless steel construction provides excellent corrosion resistance and a consistent finish in outdoor or damp indoor environments. The oil-resistant gasket and robust build translate to lower maintenance costs and fewer field failures, improving lifecycle reliability. Business impact: extended service intervals, lower replacement risk, and reduced preventive maintenance expenses, especially in coastal or chemical-industrial settings. Application: ideal for outdoor switchgear rooms, wash-down areas, and demanding industrial floors where reliability and longevity matter. Size and protection: The enclosure measures 72 in height and 72 in length with an 18 in width, offering substantial internal volume for multiple devices while maintaining a compact footprint. Weight around 660.311 lb reflects heavy-duty protection against impact and ingress. Business impact: supports large protection assemblies with minimal enclosure stacking and space planning complexity. Application: suitable for high-capacity protection schemes in manufacturing and process plants. Security and access: Hinged cover with a 3-point latching handle provides secure, tool-free access for authorized maintenance. Bottom knockouts (12) enable flexible, clean wiring routes and simpler field terminations. Business impact: faster maintenance cycles and predictable wiring layouts, reducing downtime during servicing. Application: aligns with hot-work practices in electrical rooms and outdoor installations. Compliance and compatibility: UL 508A, CSA C22.2, and NEMA ratings ensure regulatory compliance for electrical enclosures in North America. Ground mounting supports stable, corrosion-resistant installations in rugged environments. Application: integrates smoothly with Eaton B-Line systems and standard field wiring practices. Business impact: lowers risk of non-conformance penalties and speeds up project approvals.
Get a Quick Quote for a Eaton CD727218-4XSFD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CD727218-4XSFD?
Enquire Now
FAQs
For proper installation, plan a ground-mounted footprint with stable concrete or rated support. Utilize the 12 bottom knockouts to route cables cleanly and align the enclosure with the equipment it protects. Ensure the hinged door is accessible for maintenance and confirm UL 508A and CSA C22.2 compliance requirements are met for the target facility.
Key specs include a stainless steel body with an oil-resistant gasket and a NEMA 4X rating, providing water and corrosion resistance. UL 508A and CSA C22.2 certifications verify electrical safety and compatibility. The 3-point latching mechanism enhances security while the enclosure’s weight and rugged build tolerate industrial vibration and impacts.
Yes. The CD727218-4XSFD is designed for integration with Eaton B-Line series systems, offering ground mounting, 12 bottom knockouts for flexible conduit or cable entries, and a standard footprint that aligns with common industry practices for field wiring and rack alignment.
UL 508A and CSA C22.2 are the primary electrical enclosure standards cited, with a NEMA rating indicating environmental protection levels. These certifications ensure safe operation, regulatory compliance, and compatibility with North American electrical installations, reducing risk during audits and facilitating procurement with confidence.
The stainless steel construction and NEMA 4X protection minimize weather-related failures and corrosion, lowering maintenance and replacement costs. The design enables faster service with features like a hinged cover and 3-point latch, reducing downtime. Over a typical lifecycle, these factors contribute to lower total cost of ownership and improved equipment availability.
