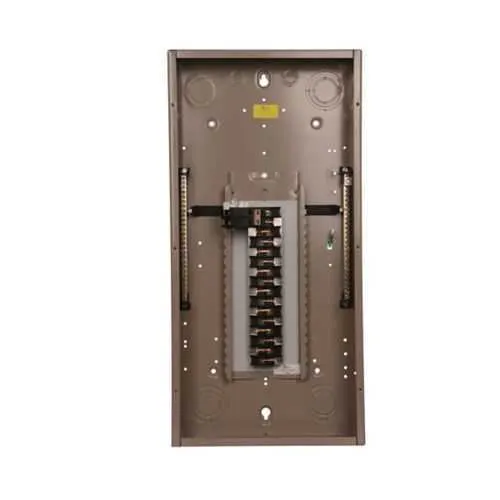

Eaton CH30B100R Main Breaker Loadcenter - UL 67
Part Number: CH30B100R
Quick Summary
The Eaton CH30B100R main breaker loadcenter is designed to deliver reliable power distribution for commercial and light-industrial applications. It combines a robust 100 A main breaker with 30 circuits in a compact 29.13 in L by 14.31 in W footprint, helping you optimize panel density and wiring routes. Field crews often contend with rain exposure and hub access; this unit addresses those challenges with rainproof tub hub plates and a sturdy metallic NEMA 3R enclosure. UL 67 and UL 50 listings reinforce safety and performance, while NEMA 3R supports outdoor or semi-outdoor locations. From a procurement perspective, the CH30B100R offers predictable lead times, a limited lifetime warranty, and copper bus for lower resistance and improved longevity, aligning with strict industry standards and maintenance planning.
Product Information
Extended Description
CH30B100R Eaton: Eaton CH main breaker loadcenters,Standard,Main breaker,100 A,D,Copper,NEMA 3R,Metallic,10 kAIC,CH,30,30,Three-wire,Single-phase,#6-1/0 AWG,Overhead,120/240 V
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CH30B100R
UPC
782113097824
Product Length/Depth
29.13 in
Product Height
5.19 in
Product Width
14.31 in
Product Weight
15 lb
Warranty
Limited lifetime
Certifications
UL 67 UL 50
Catalog Notes
Furnished with tub hub closure plates for rainproof hubs, refer to page 3-22. Loadcenter contains single insulated/bondable neutral.
Special features
Standard
Type
Main breaker
Amperage Rating
100 A
Bus material
Copper
Main circuit breaker
CH
Number of circuits
30
Number of spaces
30
Phase
Single-phase
Wire size
#6-1/0 AWG
Feed type
Overhead
Voltage rating
120/240 V
Box size
D
Enclosure
NEMA 3R
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
AFCI Educational Video
Eaton Specification Sheet - CH30B100R
Eaton type CH circuit breaker limited warranty June 2024
The CH30B100R combines a 100 A main breaker with 30 spaces, enabling scalable distribution in a single enclosure and reducing the need for multiple panels, which lowers upfront costs and simplifies wiring routes. Copper bus minimizes resistance and voltage drop for improved efficiency and reliability in daily operations. The NEMA 3R metallic enclosure delivers weather resistance, expanding installation options to semi-outdoor or outdoor locations while maintaining safety and durability. Overhead feed with #6-1/0 AWG conductors ensures compatibility with common service feeders, reducing modification time during installation and enabling faster commissioning on new or upgrade projects. Tub hub closure plates provide rainproof hub protection and simplify field installation, while a single insulated/bondable neutral streamlines grounding practices and reduces wiring errors. The chassis also carries a limited lifetime warranty, reinforcing long-term value and serviceability for maintenance planning and ROI.
Get a Quick Quote for a Eaton CH30B100R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CH30B100R?
Enquire Now
FAQs
The CH30B100R is a CH-series main breaker loadcenter that accepts up to 30 circuits in a single enclosure, using a copper bus. It supports overhead feed and conductor sizes up to #6-1/0 AWG for three-wire, single-phase service at 120/240 V. It integrates with existing CH components, simplifying upgrades and service reliability while maintaining consistent electrical characteristics.
Key specs include a 100 A main breaker, 30 circuits/spaces, 120/240 V, 10 kAIC interrupt rating, copper bus, and a NEMA 3R metallic enclosure. UL 67 and UL 50 listings further verify safety and performance, ensuring suitability for both indoor and protected outdoor environments. The unit is designed for durable operation and predictable fault protection.
Yes. The CH30B100R features a NEMA 3R metallic enclosure designed for rain resistance and outdoor or semi-outdoor installations. It ships with tub hub closure plates to provide rainproof hubs, and it supports overhead feeds with robust protection against environmental exposure, helping maintain uptime in challenging environments.
Installation efficiency is improved by the compact 29.13 in L × 14.31 in W footprint, copper bus for low resistance, and ready-to-use rainproof hub provisions. Compliance is reinforced by UL listings (UL 67, UL 50) and a limited lifetime warranty, reducing risk during commissioning and ongoing maintenance while ensuring alignment with industrial standards.
The CH30B100R offers a durable metallic enclosure, a long-lasting copper bus, and a limited lifetime warranty, which together lower replacement and maintenance costs over time. Its compact form and straightforward wiring reduce installation time and labor costs, while reliable fault protection minimizes unplanned downtime, delivering favorable ROI for facilities with ongoing power distribution needs.
